Specifications
Brand Name :
Winibo
Model Number :
ZA0301
Certification :
CE
Place of Origin :
China
MOQ :
1Set
Price :
USD210-350
Payment Terms :
T/T
Supply Ability :
10000 Set/per month
Delivery Time :
7-15 Days
Packaging Details :
Carton Box
Helm Volume(cc/rev) :
16
Plunger Number :
5
Bore :
25 mm
Suitable Model :
up to 90HP
Piston Rod Diameter :
14 mm
Wheel turns lock to lock :
5 times
Carton Size :
61*29*19cm
Shipping Weight :
7 kgs
Description

Winibo ZA0301 Boat Hydraulic Steering Kit For Outboard Up To 90HP With Helm Pump Cylinder And Tubes

Product DescriptionHydraulic Marine Outboard Steering Kit up to 90HP Outboard Engines Winibo ZA0301

High Performance Front Mount Cylinder

  • Swiveling fittings for easy installation

  • High resistance stainless steel connection bolt

  • For single engine single cylinder, up to 90 hp max

Key Features

Hydraulic Marine Outboard Steering Kit up to 90HP Outboard Engines Winibo ZA0301Hydraulic Marine Outboard Steering Kit up to 90HP Outboard Engines Winibo ZA0301Hydraulic Marine Outboard Steering Kit up to 90HP Outboard Engines Winibo ZA0301Hydraulic Marine Outboard Steering Kit up to 90HP Outboard Engines Winibo ZA0301Hydraulic Marine Outboard Steering Kit up to 90HP Outboard Engines Winibo ZA0301

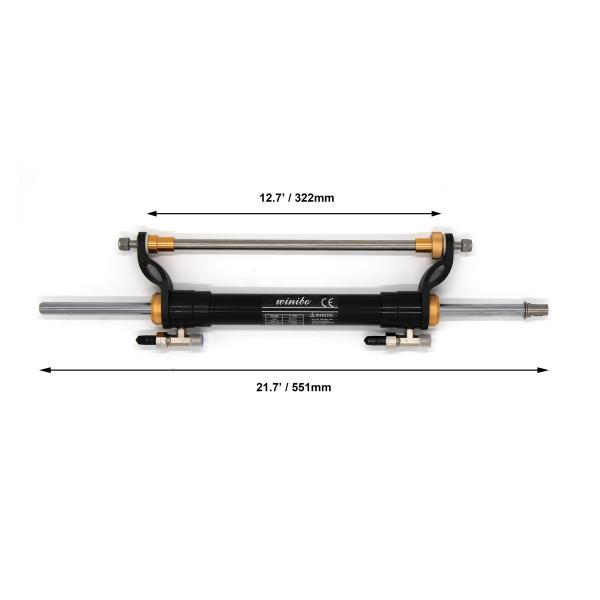

Cylinder Specification

Volume 71.1 cc
Output Force 232 kg - 513 lbs
Cylinder I.D 25 mm - 0.98"
Piston I.D 14 mm - 0.55"
Stroke 213 mm - 8.39"
High Pressure Hose 1/4'' (6.4mm) Fittings

Product Information

Applicable Horsepower Up To 90HP
Item Package L x W x H ‎23.6 x 11.25 x 7.16 inches
Item Weight ‎5.7 Kilograms
Material Stainless Steel＆Aluminum alloy
Brand Name Winibo
Item Number ‎ZA0301

Features & Details

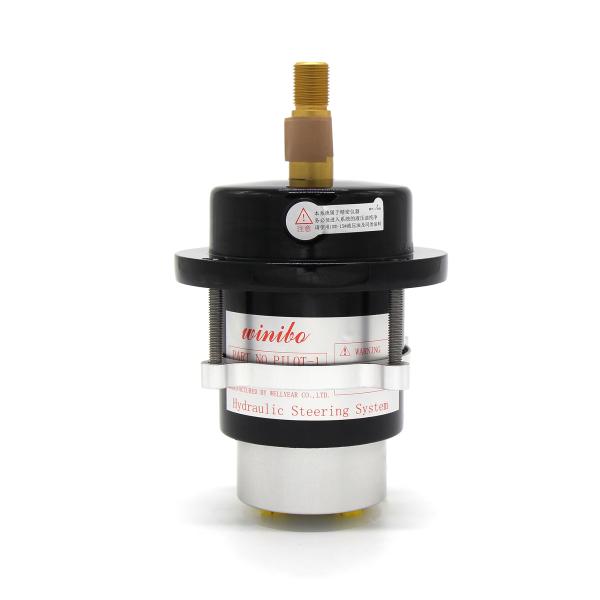

16 cc per revolution Compact helm pump Adjustable ORB fittings for easy installation and allow for simple reorientation of the fittings after installation Unique gasket design to make the helm pump very easy to be mounted Cut to length tube kit 3/4" tapered shaft Front mounted cylinder made in high resistance stainless steel 16 cc per revolution Compact helm Pump Adjustable ORB fittings for easy installation and allow for simple reorientation of the fittings after installation Unique gasket design to make the helm pump very easy to be mounted Cut to length tube kit 3/4" tapered shaft Front mounted cylinder made in high resistance stainless steel

Product Description

Make your boat steer better than new ! Helm Mounted Hydraulic Steering systems for Boats Universally Designed for outboards rated up to 90 total Horsepower ! Compatible with such brands as Yamaha, Suzuki, Honda, Mercury, Nissan, Tohatsu and more ! Our kit is made of high quality stainless steel for years of trouble free use ! 26 Foot of quality Hydraulic hose, Top mounted pump, and a ¾” tapered steering wheel shaft, guarantee a professional installation on your boat.

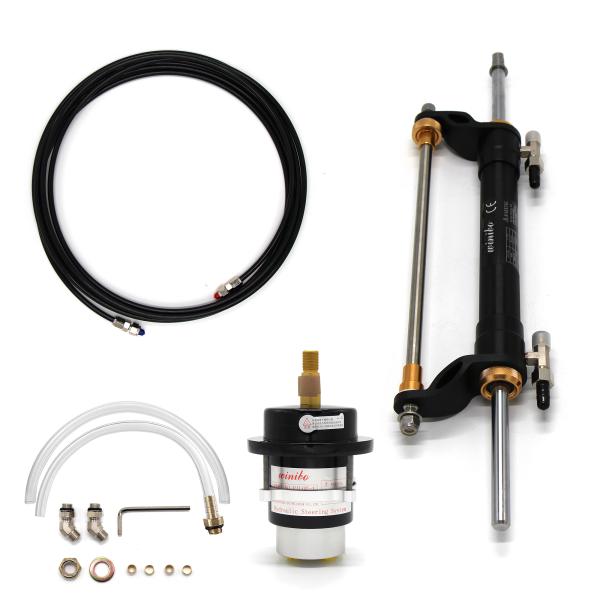

Package Content

1 x Hydraulic Pump

1 x Cylinder

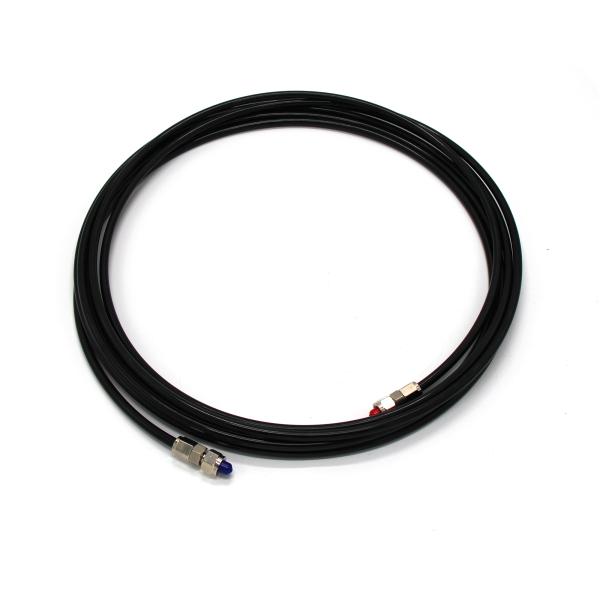

2 x Tube Kit

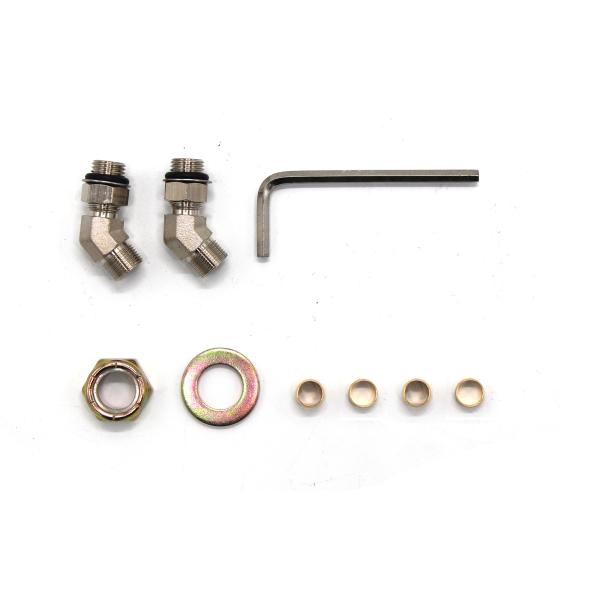

1 x Accessory Kit
