Specifications
Brand Name :
Winibo
Model Number :
ZA0350
Certification :
CE
Place of Origin :
China
MOQ :
1Set
Price :
USD400-480
Payment Terms :
T/T
Supply Ability :
10000 Set/per month
Delivery Time :
7-15 Days
Packaging Details :
Carton Box
Helm Volume(cc/rev) :
27
Plunger Number :
7
Bore :
35 mm
Suitable Model :
up to 350HP
Piston Rod Diameter :
19 mm
Wheel turns lock to lock :
5.5 times
Carton Size :
61*29*19cm
Shipping Weight :
12.5 kgs
Description

Product DescriptionMarine Hydraulic Marine Steering Kit For Boats Up To 350HP Outboard Engine

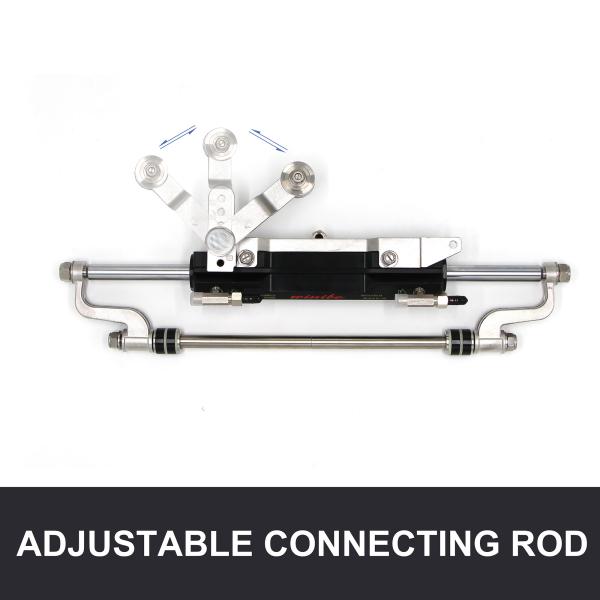

High Performance Front Mount Cylinder

  • Swiveling fittings for easy installation

  • High resistance stainless steel connection bolt

  • For single engine single cylinder, up to 300 hp max

  • For dual engine single cylinder, up to 600 hp max

  • For dual engine dual cylinder, up to 600 hp max

Key Features



Marine Hydraulic Marine Steering Kit For Boats Up To 350HP Outboard Engine

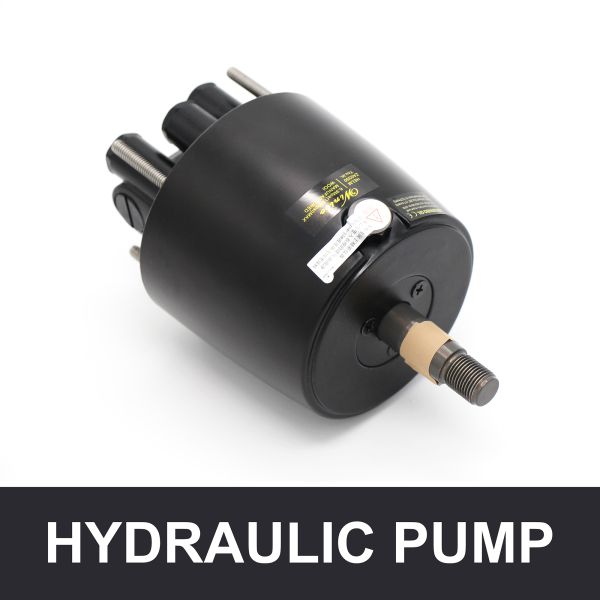

Compact Front Mount Helm Pumps

  • Integral relief valve for over-pressure protection

  • Built-in lock valve for positive rudder lock

  • Displacement/Revolution 27 cc

  • 3/4" tapered stainless shaft

  • Compact design

  • Anodized cover

  • ORB ports

  • 7 plunger

  • Marine Hydraulic Marine Steering Kit For Boats Up To 350HP Outboard Engine

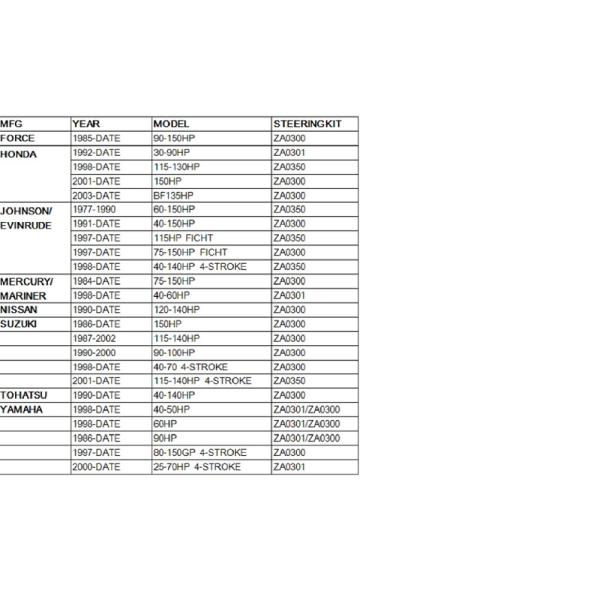

  • Application GuidanceMarine Hydraulic Marine Steering Kit For Boats Up To 350HP Outboard Engine

Marine Hydraulic Marine Steering Kit For Boats Up To 350HP Outboard Engine

Package Content

  • 1 Helm Pump

  • 1 Cylinder

  • 2 Tube Kit

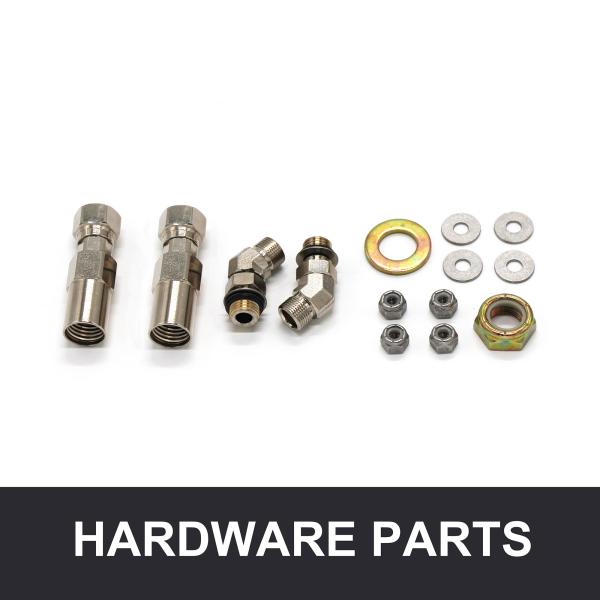

  • 1 Hardware Bag

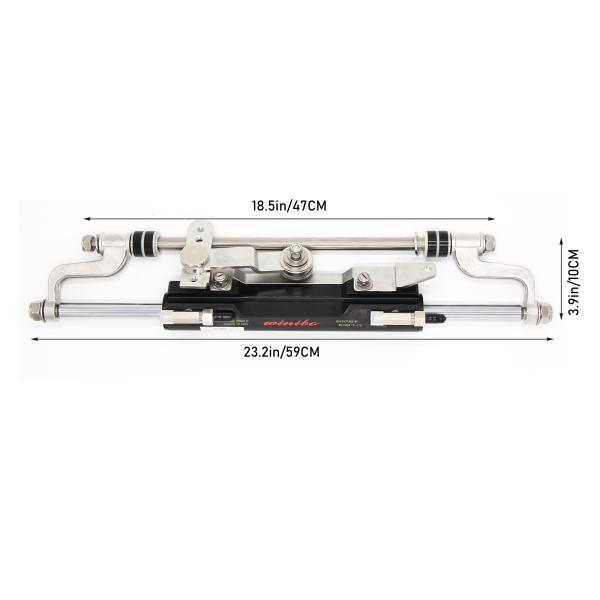

Cylinder Specification

Volume 141.8cc
Output Force 468 kg - 1032 lbs
Cylinder I.D 35 mm - 1.38"
Piston I.D 20 mm - 0.79"
Stroke 219 mm - 8.62"

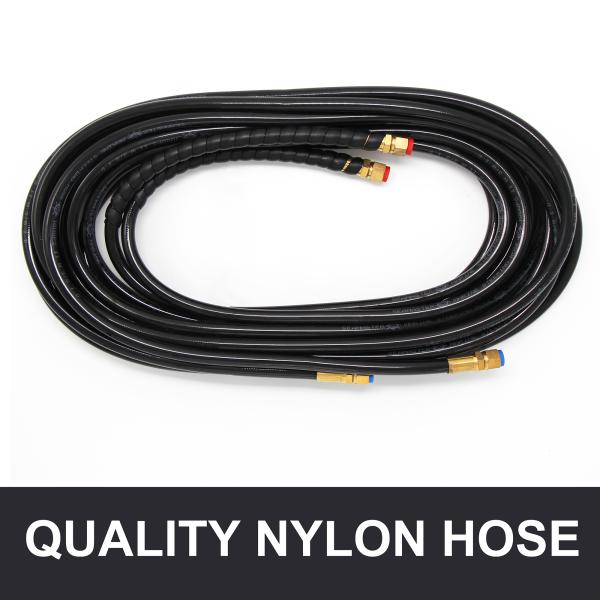

High Pressure Hose 3/8" (9.5mm) Fittings

Product Information

Applicable Horsepower Up To 350HP
Item Package L x W x H ‎23.6 x 11.25 x 7.16 inches
Item Weight ‎9.7 Kilograms
Material Stainless Steel＆Aluminum alloy
Brand Name Winibo
Item Number ‎ZA0350
