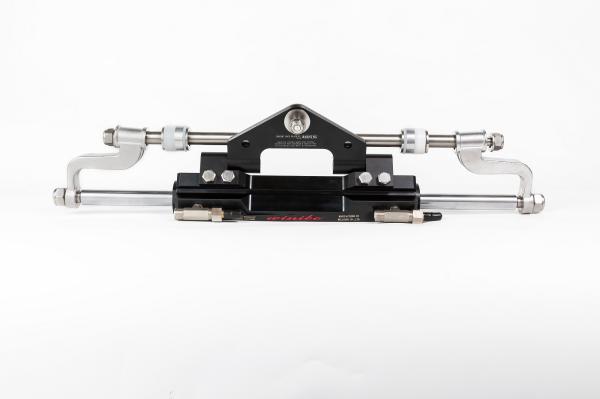

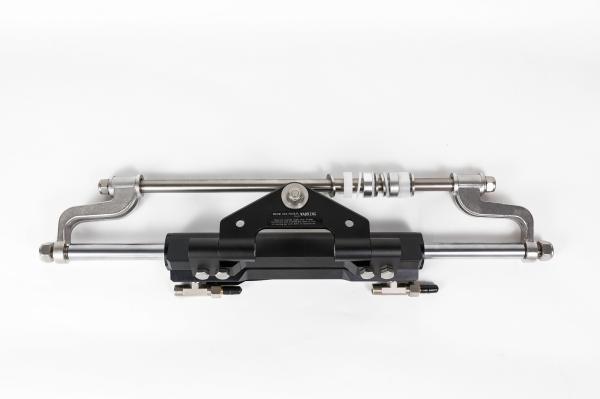

Marine Hydraulic Outboard Steering Cylinder For Boats Up To 300 Hp
Marine Hydraulic Outboard Steering Cylinder For Boats Up To 300 Hp
Marine Hydraulic Outboard Steering Cylinder For Boats Up To 300 Hp
Marine Hydraulic Outboard Steering Cylinder For Boats Up To 300 Hp
Marine Hydraulic Outboard Steering Cylinder For Boats Up To 300 Hp
Marine Hydraulic Outboard Steering Cylinder For Boats Up To 300 Hp
Specifications
Brand Name :
Winibo
Model Number :
ZA0350C
Certification :
CE
Place of Origin :
China
MOQ :
1Set
Price :
USD300
Payment Terms :
T/T
Supply Ability :
10000 Set/per month
Delivery Time :
7-15 Days
Packaging Details :
Carton Box
Suitable Model :
up to 300HP
Stroke :
214 mm
Bore :
35 mm
Piston Rod Diameter :
18 mm
Output force :
468kgf
Cylinder volume :
141.1cc
Carton Size :
63*47*17cm
Shipping Weight :
13.5 kgs
Description

Hydraulic Boat Outboard Marine Steering System Kit Cylinder Helm up to 300HP

Winibo ZA0350 marine Hydraulic Outboard Steering System boat steering cylinder helm up to 300HP

  • Quality Winibo brand sold Worldwide.

    Will fit outboards up to 300hp

  • Piston rod diameter 18 mm

  • Stroke 214 mm

  • Tube ID 35 mm

  • Rod OD 18 mm

  • Output force 468kgf

  • Cylinder volume 141.1cc

Marine Hydraulic Outboard Steering Cylinder For Boats Up To 300 Hp

The steering system in accordance with the (Rules for classification of ships) on the steering gear in the requirements for the design, the use of open-type valve hydraulic system and swing cylinder piston to push the rudder mechanism, with avariety of valve type or autopilot servo steering instrument to match the ship's steering control system components, and undertake the task of changing and maintaining the course of the ship.

This kind can be divided into 3 types:

ZA0301----can be used for 90hp outboard engine

ZA0300--can be used for 90-150hp outboard engine

ZA0350--can be used for 150-300hp outboard engine

The standard of form a complete set: 8m hydraulic pipe, fuel cylinder, fuel pump and connecting accessories. Steering wheel optional (random)

The use of the brands are: YAMAHA, SUZUKI, HONDA, TOHATSU, MERCURY / MARINER, NISSAN.

Our precision marine hydraulic steering kit is a complete replacement for tired, worn out helms. Compatibility with most outboard motors up to 300 hp gives you piece of mind purchasing our kit, knowing you will get many years of enjoyment of your new steering. Hydraulic steering removes the concern of seized cables and gives you effortless steering, just like when your boat was new!

Marine Hydraulic Outboard Steering Cylinder For Boats Up To 300 Hp

Marine Hydraulic Outboard Steering Cylinder For Boats Up To 300 HpMarine Hydraulic Outboard Steering Cylinder For Boats Up To 300 Hp
