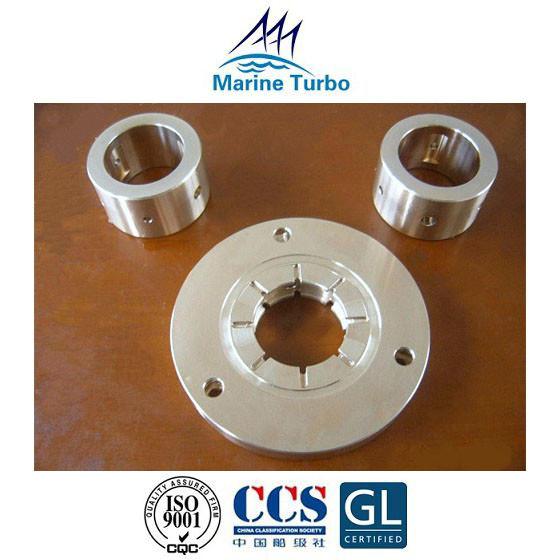

T- TPS Series Journal Bearing Turbo For Marine Turbocharger Parts
T- TPS Series Journal Bearing Turbo For Marine Turbocharger Parts
Specifications
Brand Name :
Marine Turbo
Model Number :
T-TPS Series
Certification :
ISO9001
Place of Origin :
Jiangsu, China
MOQ :
1 pcs
Payment Terms :
T/T
Supply Ability :
1000 pcs / month
Delivery Time :
1-4 working days
Packaging Details :
Carton box, wood case
Model :
T- TPS series Turbo Bearing
Engine type :
Diesel
Turbine type :
Single stage mixed-flow turbine
Quality :
High Perforce, Top and High Level, Guaranteed
Warranty :
12 months
Description

T- TPS Series Journal Bearing Turbo For Marine Turbocharger Parts

T- TPS series Turbo Bearing Turbocharger bearings work under high temperature, high speed and light load conditions to ensure reliable operation of the bearings under working conditions. In addition to ensuring that the structural design, materials and ufacturing of the bearings to meet the requirements, good maintenance agement is also critical important.

T-TPS series Marine turbocharger features:
  1. It consists of single stage mixed-flow turbine, centrifugal compressor, external engine lubricating oil system.
  2. it can be matched with high-speed diesel engine and gas engine of 500-3000kw.
  3. cooled & uncooled bearing casing design.
  4. The constant pressure mixed turbine is used to increase the volume flow through the nozzle ring with the pulse application.
  5. The compressor wheel adopts after sloping shunt blades and provide three different periods of pressure.
  6. The overall efficiency of turbocharger is 62%-64%, the maximum pressure ratio is 4.5.
  7. It is compact structure, easy to maintain and widely used in marine main engines, marine auxiliary machines, generating sets, railway locomotives and other application areas of diesel engines.

Brief introduction of Marine turbocharger:

Marine turbocharger/Exhaust gas turbochargers operate at high speeds, high exhaust gas temperatures, high air and exhaust gas flow rates, and high flow rates. Generally, the pressure of the exhaust gas is 0.25-0.45 MPa, and the exhaust gas temperature is 500-600 °C. The speed varies with the size of the Marine turbocharger / supercharger. The maximum speed of the large-sized supercharger is 10000 r/min, and the maximum speed of the small-sized supercharger can reach 40,000~50000r/min. Therefore, the marine turbocharger/exhaust gas turbocharger is a precision machine.

Marine Turbo supply marine turbocharger replacement parts:

With over 20 years of ufacturing experience, Marine Turbo supply a wide range of marine turbocharger spare parts replacements in marine, drilling and mining industry: marine turbocharger complete, compressor wheel / impeller, turbine shaft, cartridge, rotor complete, bearing assembly, nozzle ring, diffuser, cover ring, oil pump, sealing bush, compressor housing, bearing housing, turbine casing, silencer, service kits, tools, etc....
