Heavy Duty Engines T- Mitsubishi Turbocharger Marine Spare Parts T- MET35 Nozzle Ring
Heavy Duty Engines T- Mitsubishi Turbocharger Marine Spare Parts T- MET35 Nozzle Ring
Heavy Duty Engines T- Mitsubishi Turbocharger Marine Spare Parts T- MET35 Nozzle Ring
Heavy Duty Engines T- Mitsubishi Turbocharger Marine Spare Parts T- MET35 Nozzle Ring
Specifications
Brand Name :
Marine Turbo
Model Number :
T- MET35
Certification :
ISO9001, CCS, or GL
Place of Origin :
Jiangsu, China
MOQ :
1 pcs
Payment Terms :
T/T, L/C, Western Union
Supply Ability :
500 pcs / month
Delivery Time :
1-2 working days
Packaging Details :
Carton box, wood case
Model :
T- MET35 turbocharger nozzle ring
Type :
Marine turbocharger
Engine type :
Diesel engine
Turbine :
Axial type
Pressure ratio :
Up to 4.0
Warranty :
12 months
Package :
Wood case, carton box or according to require
Description

Heavy Duty Engines T- Mitsubishi Turbocharger Marine Spare Parts T- MET35 Nozzle Ring

T- MET35 Marine turbocharger nozzle ring (guide vane) need to bear the extremely high temperature and high pressure, so it's very crucial for its material selection. The turbocharger nozzle ring is usually fabricated from a creep resistant chromium nickel alloy, heat resisting moly-chrome nickel steel or a nimonic alloy.

T- Mitsubishi / T- MET-Original series turbocharger features:

T- MET35 turbocharger nozzle ring (guide vane) belongs to one part of T- Mitsubishi / T- MET-Original series turbocharger with the features as below:

  • Bearing on the inner side of the impeller;

  • Rotor support is not affected by thermal expansion of the turbine casing;

  • Bearing pedestal has an interated head tank, by which the lubrication oil is continuously supplied even after than emergency shut down of the engine;

  • The T- MET Series turbochargers is kind of advanced aerodynamic design;

  • Long service lifetime and high reliability;

  • Applied to all major engines in marine and stationary field.

T- MET turbocharger series include:

T- MET Original and ..0 Series T-S, -SA Series T-SB,SBII Series T-SC Series T-SD Series T-SE Series T-SEII Series
T- MET35 T-MET35S/SA T-MET33SB/SBII T-MET33SC T-MET33SD T-MET33SE T-MET33SEII
T- MET350 T-MET45S/SA T-MET42SB/SBII T-MET42SC T-MET42SD T-MET42SE T-MET42SEII
T- MET45 T-MET56S/SA T-MET53SB T-MET53SC T-MET53SD T-MET53SE T-MET53SEII
T- MET450 　 T-MET66SB T-MET66SC T-MET66SD T-MET66SE T-MET66SEII
T- MET56 　 　 T-MET83SC 　 T-MET71SE T-MET71SEII
T- MET560 　 　 　 　 T-MET83SE T-MET83SEII
　 　 　 　 　 T-MET90SE 　
　 　 　 　 　 　 　
T-MA Series T-MB Series T-MBII Series T-SR Series T-SRII Series T-SRC Series T-ER Series
T-MET33MA T-MET33MB T-MET33MBII T-MET22SR T-MET22SRII T-MET18SRC T-MET13ER
T-MET42MA T-MET37MB T-MET37MBII T-MET26SR T-MET26SRII T-MET22SRC T-MET16ER
T-MET53MA T-MET42MB T-MET42MBII T-MET30SR T-MET30SRII T-MET26SRC T-MET20ER
T-MET60MA T-MET48MB T-MET48MBII 　 　 T-MET30SRC T-MET24ER
T-MET66MA T-MET53MB T-MET53MBII 　 　 T-MET37SRC T-MET28ER
T-MET71MA T-MET60MB T-MET60MBII 　 　 　 T-MET34ER
T-MET83MA T-MET66MB T-MET66MBII 　 　 　 　
T-MET90MA T-MET71MB T-MET71MBII 　 　 　 　
　 T-MET83MB T-MET83MBII 　 　 　 　
　 T-MET90MB T-MET90MBII 　 　 　 　

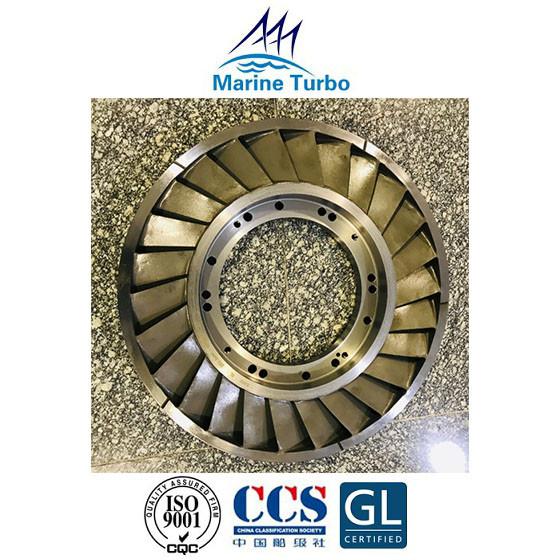

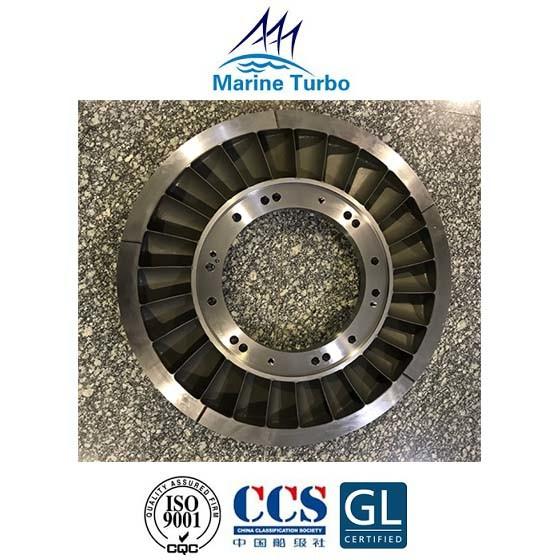

The Picture of T- MET35 Marine turbocharger nozzle ring (guide vane):

Heavy Duty Engines T- Mitsubishi Turbocharger Marine Spare Parts T- MET35 Nozzle Ring

T- MET35 Marine turbocharger nozzle ring (guide vane) function:

  • The turbocharger nozzle ring is in the where the energy in the exhaust gas is converted into kinetic energy, so the nozzle ring need to bear the extremely high temperature and high pressure.
  • The turbocharger nozzle ring is usually fabricated from a creep resistant chromium nickel alloy, heat resisting moly-chrome nickel steel or a nimonic alloy which will withstand the high temperatures and be resistant to corrosion.
  • Furthermore, due to its function is to convert the exhaust gas into kinetic energy, the precision processing of the nozzle ring is highly deded.
