T- MITSUBISHI Turbocharger / T- MET Series Turbine Blades For Marine And Stationary Engines Maintenance Parts
T- MITSUBISHI Turbocharger / T- MET Series Turbine Blades For Marine And Stationary Engines Maintenance Parts
T- MITSUBISHI Turbocharger / T- MET Series Turbine Blades For Marine And Stationary Engines Maintenance Parts
T- MITSUBISHI Turbocharger / T- MET Series Turbine Blades For Marine And Stationary Engines Maintenance Parts
T- MITSUBISHI Turbocharger / T- MET Series Turbine Blades For Marine And Stationary Engines Maintenance Parts
T- MITSUBISHI Turbocharger / T- MET Series Turbine Blades For Marine And Stationary Engines Maintenance Parts
T- MITSUBISHI Turbocharger / T- MET Series Turbine Blades For Marine And Stationary Engines Maintenance Parts
T- MITSUBISHI Turbocharger / T- MET Series Turbine Blades For Marine And Stationary Engines Maintenance Parts
Specifications
Brand Name :
Marine Turbo
Model Number :
T- MET Series
Certification :
ISO; CCS; GL
Place of Origin :
Jiangsu, China
MOQ :
1 pcs
Payment Terms :
T/T, L/C, Western Union
Supply Ability :
500 pcs / month
Delivery Time :
1-4 working days
Packaging Details :
Carton box, wood case
Model :
T- MET series turbocharger turbine blade
Size :
Standard size, or as customer's request
Type :
T- Mitsubishi Exhaust gas turbocharger
Fuel :
Diesel and fuel
Engine outputs :
400 kW -45,200kW
Turbine type :
Axial flow and radial flow
Lubrication :
By Engines Lube Oil
Warranty :
12 months
Description

T- MITSUBISHI Turbocharger / T- MET Series Turbine Blades For Marine And Stationary Engines Maintenance Parts

T- Mitsubishi / T- MET series turbochargers features:

T- MET series turbocharger turbine blade belongs to the part of T- Mitsubishi / T- MET series turbochargers and which has the features as below:

  • Since the 1965 until now, T- MET Series exhaust gas turbochargers has developed y series to meet the market deds, it includes the Axial type and Radial type of turbochargers.
  • The bearing is designed on the inner side of the impeller and turbine blade;
  • The Rotor is supported by a pedestal with less thermal deformation;
  • Bearing pedestal has an integrated head tank, by which the lubrication oil is continuously supplied even after than emergency shut down of the engine;
  • The gas inlet casing is double wall structure, which make it easy to check the turbine and nozzle when doing the maintenance;
  • An advanced aerodynamic design for compressor and turbine is adopted in T- MET Series turbochargers;
  • Simple and compact design of T- MET Series turbocharger make it long service lifetime and high reliability;
  • T- MET Series turbochargers is mounted low noise silencer to reduce the noise and make it environmentally friendly when the engine is running;
  • T- MET series turbochargers are widely used in marine and stationary engines.
  • T- MET series turbochargers service the engine power output range from 400kW to 45,200kW per unit.

T- Mitsubishi / T- MET series turbocharger includes:

T-MET Original and ..0 Series T-S, -SA Series T-SB,SBII Series T-SC Series T-SD Series T-SE Series T-SEII Series
T-MET35 T-MET35S/SA T-MET33SB/SBII T-MET33SC T-MET33SD T-MET33SE T-MET33SEII
T-MET350 T-MET45S/SA T-MET42SB/SBII T-MET42SC T-MET42SD T-MET42SE T-MET42SEII
T-MET45 T-MET56S/SA T-MET53SB T-MET53SC T-MET53SD T-MET53SE T-MET53SEII
T-MET450 　 T-MET66SB T-MET66SC T-MET66SD T-MET66SE T-MET66SEII
T-MET56 　 　 T-MET83SC 　 T-MET71SE T-MET71SEII
T-MET560 　 　 　 　 T-MET83SE T-MET83SEII
　 　 　 　 　 T-MET90SE 　
　 　 　 　 　 　 　
T-MA Series T-MB Series T-MBII Series T-SR Series T-SRII Series T-SRC Series T-ER Series
T-MET33MA T-MET33MB T-MET33MBII T-MET22SR T-MET22SRII T-MET18SRC T-MET13ER
T-MET42MA T-MET37MB T-MET37MBII T-MET26SR T-MET26SRII T-MET22SRC T-MET16ER
T-MET53MA T-MET42MB T-MET42MBII T-MET30SR T-MET30SRII T-MET26SRC T-MET20ER
T-MET60MA T-MET48MB T-MET48MBII 　 　 T-MET30SRC T-MET24ER
T-MET66MA T-MET53MB T-MET53MBII 　 　 T-MET37SRC T-MET28ER
T-MET71MA T-MET60MB T-MET60MBII 　 　 　 T-MET34ER
T-MET83MA T-MET66MB T-MET66MBII 　 　 　 　
T-MET90MA T-MET71MB T-MET71MBII 　 　 　 　
　 T-MET83MB T-MET83MBII 　 　 　 　
　 T-MET90MB T-MET90MBII 　 　 　 　

T- MET Series turbochargers undergone revolutionary changes in order to improve turbocharger perforce by mainly modifying the compressor wheel and turbine blade.

Improvement of T-MET Compressor Impeller:

T- MITSUBISHI Turbocharger / T- MET Series Turbine Blades For Marine And Stationary Engines Maintenance Parts

Improvement of T-MET Turbine Blades:

T- MITSUBISHI Turbocharger / T- MET Series Turbine Blades For Marine And Stationary Engines Maintenance Parts

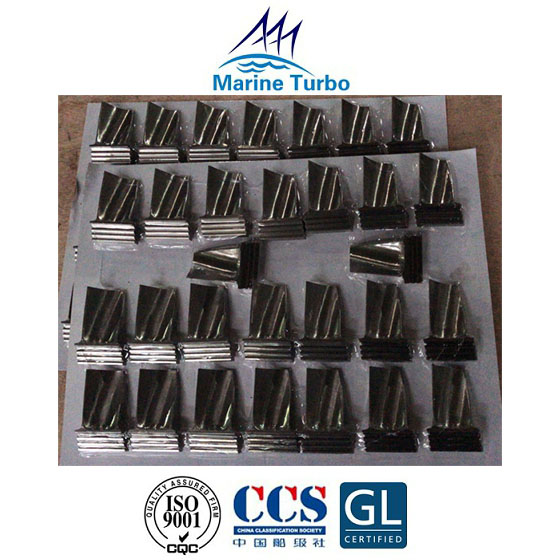

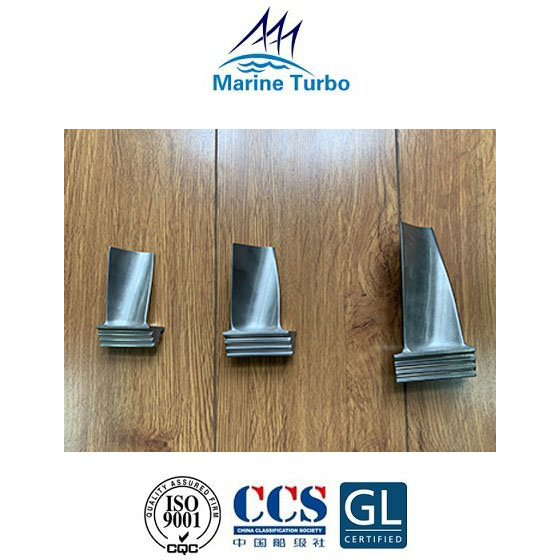

The T- Mistubishi MET turbocharger turbine blades picture:

T- MITSUBISHI Turbocharger / T- MET Series Turbine Blades For Marine And Stationary Engines Maintenance PartsT- MITSUBISHI Turbocharger / T- MET Series Turbine Blades For Marine And Stationary Engines Maintenance Parts

The function of turbine blades:

Turbine blades are an important component of the turbine section of a diesel or gas powered engine. The blades that rotate at high speed are responsible for drawing high temperature and high pressure air into the combustor so that to maintain the engine's operation. In order to ensure long-term stability in extreme environments of high temperature and high pressure, turbine blades are often forged with high-temperature alloys and used in different ways to cool, for example, internal airflow cooling, boundary layer cooling, or thermal barrier coatings that protect the blades, to guarantee the reliability of turbine blades during turbocharger's operation.
