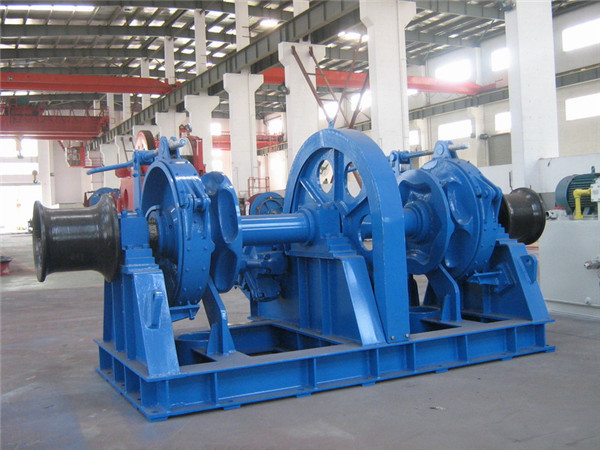

127mm Gypsy Marine Anchor Windlass Ship Mooring Winch
127mm Gypsy Marine Anchor Windlass Ship Mooring Winch
127mm Gypsy Marine Anchor Windlass Ship Mooring Winch
127mm Gypsy Marine Anchor Windlass Ship Mooring Winch
Specifications
Brand Name :
JUVI
Model Number :
Anchor Winch
Certification :
CCS, ABS, LR, RMRS, etc
Place of Origin :
China
MOQ :
1 PC
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
10000+PCS+Month
Delivery Time :
25 days
Packaging Details :
Standard Export Packing
Product Name :
Marine Boat Ship Winch Hydraulic/Electric Anchor Windlass China Anchor Windlass Manufacturer
Application :
Boat, Ship, Vessel, Jetty, Port, Dock, etc
Power source :
Electric/Hydraulic
Voltage :
AC 380V/220V, 50HZ/60HZ
Cable Dia. (mm) :
28-100
Certificate :
CCS, BV, DNV, ABS, etc
Workload (KN) :
6.6-684
Anchor Speed (m/min) :
≥9
Anchor Chain Dia.(mm) :
12.5-120
MOQ :
1 Set
Description

Marine Boat Ship Winch Hydraulic/Electric Anchor Windlass China Anchor Windlass Manufacturer


Specification of Marine Electric/Hydraulic Anchor Winch

Deck Equipment Series 1.Mooring Rope/Cable Winch(Hydraulic/Electric)
2.Mooring Anchor Windlass/Winch(Hydraulic/Electric)
3.Mooring Towing Winch
4.Mooring Position Winch
5.Cargo Winch
6.Moving-Boat Winch
7.Scientific Research Winch
8.Linear Winch
9.Double Row Rope Winch
10.Winch Type Towing System
11.Military Bell Winch
12.Offshore Winch
Drive Power Electric /Hydraulic/ Manual/ Diesel
Warping Head,
Gypsy and Drum		 Single/Double, Customized
Gypsy Size Dia. 12.5-127mm(U2,U3), Customized
Working Load 1 Ton to 350 Ton, Customized
Warping Head 10KN-100KN, Customized
Holding Load 68KN-3010KN, Customized
Power Required 4-132KW, Customized
Chain Speed ≥9m/min, Customized
Clutch Manual /Hydraulic Operated Jaw Clutch
Brake Spring Applied Pneumatically or Hydraulic Released Band Brake
Release Emergency Quick Release
Control Type Local Control Console and remote Control Panel
Options Drag Brake System;
Length and Tension Monitoring Systems Stainless Steel Brake Drum;
Chain Stopper;
Fairlead, etc
Advantages High quality with competitive prices
Much experience in production and exportion
Special design for different clients.
Short delivery time if clients need urgently
Certificate: ABS, BV, CCS, DNV-GL, KR, LR, NK, RINA, RS, PRS, IRS, CRS

Main Performance Parameters of Hydraulic Windlass
Specification and Name Workload
AM2/AM3
(KN)		 Anchor Speed
(m/min)
12.5mm Hydraulic Windlass 6.6 ≥9
14mm Hydraulic Windlass 8.3 ≥9
16mm Hydraulic Windlass 10.9 ≥9
17.5mm Hydraulic Windlass 13.0/14.6 ≥9
19mm Hydraulic Windlass 15.3/17.2 ≥9
20.5mm Hydraulic Windlass 17.9/20.0 ≥9
22mm Hydraulic Windlass 20.6/23.0 ≥9
24mm Hydraulic Windlass 24.5/27.4 ≥9
26mm Hydraulic Windlass 28.7/32.1 ≥9
28mm Hydraulic Windlass 33.3/37.2 ≥9
30mm Hydraulic Windlass 38.3/42.8 ≥9
32mm Hydraulic Windlass 43.5/48.6 ≥9
34mm Hydraulic Windlass 49.1/54.9 ≥9
36mm Hydraulic Windlass 55.1/61.6 ≥9
38mm Hydraulic Windlass 61.4/68.9 ≥9
40mm Hydraulic Windlass 68.0/76.0 ≥9
42mm Hydraulic Windlass 75.0/83.8 ≥9
44mm Hydraulic Windlass 82.3/92.0 ≥9
46mm Hydraulic Windlass 89.9/100.5 ≥9
48mm Hydraulic Windlass 97.9/109.4 ≥9
50mm Hydraulic Windlass 106.3/118.8 ≥9
52mm Hydraulic Windlass 114.9/128.4 ≥9
54mm Hydraulic Windlass 123.9/138.5 ≥9
56mm Hydraulic Windlass 133.3/149.0 ≥9
58mm Hydraulic Windlass 143.0/159.8 ≥9
60mm Hydraulic Windlass 153.0/171.0 ≥9
62mm Hydraulic Windlass 163.4/182.6 ≥9
64mm Hydraulic Windlass 174.1/194.6 ≥9
66mm Hydraulic Windlass 185.1/206.9 ≥9
68mm Hydraulic Windlass 196.5/219.6 ≥9
70mm Hydraulic Windlass 208/3/232.8 ≥9
73mm Hydraulic Windlass 226.5/253.1 ≥9
76mm Hydraulic Windlass 245.5/274.4 ≥9
78mm Hydraulic Windlass 258.6/289.0 ≥9
81mm Hydraulic Windlass 311.7 ≥9
83mm Hydraulic Windlass 327.2 ≥9
84mm Hydraulic Windlass 335.2 ≥9
85mm Hydraulic Windlass 343.2 ≥9
87mm Hydraulic Windlass 359.5 ≥9
90mm Hydraulic Windlass 384.8 ≥9

Mooring Winch Features

Single or Double Drum

Electrical Drive

Direct on Line (DOL) or Variable, Frequency drive (VFD)

Single Speed or 2-Speed Motor

Integrated Modular Gear Box

Fail-safe Motor Brake

Pneumatic Fail-safe Band Brake with Manual Emergency Release

Auto Clutch with Manual Override

Load and Rope Length Display

Controlled from Local Control Console

Optional Remote Control

Cost-Effective
