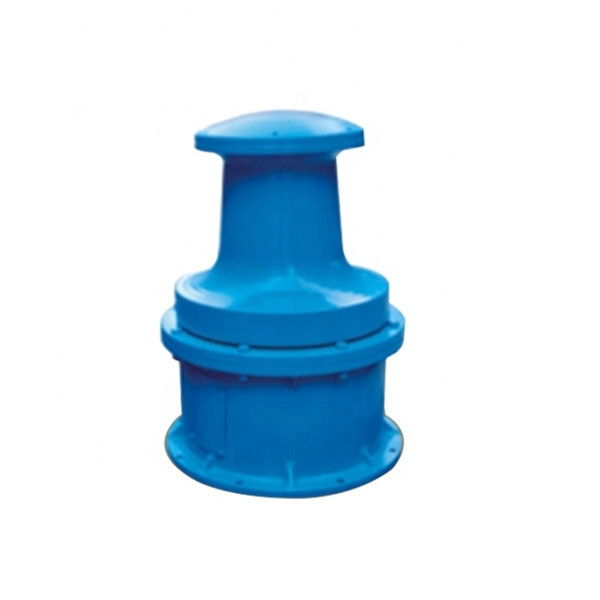

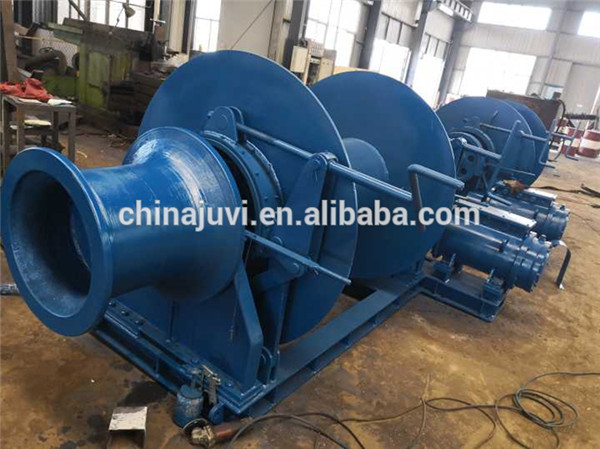

Pulling Lifting Electric Anchor Capstan Winches For Fishing Boats
Pulling Lifting Electric Anchor Capstan Winches For Fishing Boats
Pulling Lifting Electric Anchor Capstan Winches For Fishing Boats
Pulling Lifting Electric Anchor Capstan Winches For Fishing Boats
Specifications
Brand Name :
JUVI
Model Number :
Anchor Capstan Winch
Certification :
CCS, ABS, LR, RMRS, etc
Place of Origin :
China
MOQ :
1 PC
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
10000+PCS+Month
Delivery Time :
25 days
Packaging Details :
Standard Export Packing
Product Name :
220V/380V Electrical Hydraulic Trailer Pulling Lifting Electric Anchor Capstan Winches For Fishing Boats
Application :
Boat, Ship, Vessel, Jetty, Port, Dock, etc
Power source :
Electric/Hydraulic
Voltage :
AC 380V/220V, 50HZ/60HZ
Cable Dia. (mm) :
28-100
Certificate :
ABS, BV, CCS, DNV-GL, KR, LR, NK, RINA, RS, etc
Workload (KN) :
6.6-232.8
Anchor Speed (m/min) :
≥9
Anchor Chain Dia.(mm) :
12.5-70
Warranty :
1 Year
Description

220V/380V Electrical Hydraulic Trailer Pulling Lifting Electric Anchor Capstan Winches For Fishing Boats


Specification of Marine Electric Anchor Capstan Winch

Deck Equipment Series 1.Mooring Rope/Cable Winch(Hydraulic/Electric)
2.Mooring Anchor Windlass/Winch(Hydraulic/Electric)
3.Mooring Towing Winch
4.Mooring Position Winch
5.Cargo Winch
6.Moving-Boat Winch
7.Scientific Research Winch
8.Linear Winch
9.Double Row Rope Winch
10.Winch Type Towing System
11.Military Bell Winch
12.Offshore Winch
Drive Power Electric /Hydraulic/ Manual/ Diesel
Warping Head,
Gypsy and Drum		 Single/Double, Customized
Gypsy Size Dia. 12.5-127mm(U2,U3), Customized
Working Load 1 Ton to 350 Ton, Customized
Warping Head 10KN-100KN, Customized
Holding Load 68KN-3010KN, Customized
Power Required 4-132KW, Customized
Chain Speed ≥9m/min, Customized
Clutch Manual /Hydraulic Operated Jaw Clutch
Brake Spring Applied Pneumatically or Hydraulic Released Band Brake
Release Emergency Quick Release
Control Type Local Control Console and remote Control Panel
Options Drag Brake System;
Length and Tension Monitoring Systems Stainless Steel Brake Drum;
Chain Stopper;
Fairlead, etc
Advantages High quality with competitive prices
Much experience in production and exportion
Special design for different clients.
Short delivery time if clients need urgently
Certificate: ABS, BV, CCS, DNV-GL, KR, LR, NK, RINA, RS, PRS, IRS, CRS

Main performance Parameters of Electric Anchor Capstan
Specification and Name Workload
(KN)		 Anchor Speed
(m/min)		 Winch Load
(KN)		 Rope Speed
(m/min)
12.5mm Electric Anchor Capstan 6.6 ≥9 5 ≥9
14mm Electric Anchor Capstan 8.3 ≥9 6 ≥9
16mm Electric Anchor Capstan 10.9 ≥9 8 ≥9
17.5mm Electric Anchor Capstan 13.0/14.6 ≥9 10 ≥9
19mm Electric Anchor Capstan 15.3/17.2 ≥9 10 ≥9
20.5mm Electric Anchor Capstan 17.9/20.0 ≥9 15 ≥9
22mm Electric Anchor Capstan 20.6/23.0 ≥9 15 ≥9
24mm Electric Anchor Capstan 24.5/27.4 ≥9 20 ≥9
26mm Electric Anchor Capstan 28.7/32.1 ≥9 20 ≥9
28mm Electric Anchor Capstan 33.3/37.2 ≥9 25 ≥9
30mm Electric Anchor Capstan 38.3/42.8 ≥9 30 ≥9
32mm Electric Anchor Capstan 43.5/48.6 ≥9 30 ≥9
34mm Electric Anchor Capstan 49.1/54.9 ≥9 40 ≥9
36mm Electric Anchor Capstan 55.1/61.6 ≥9 40 ≥9
38mm Electric Anchor Capstan 61.4/68.9 ≥9 50 ≥9
40mm Electric Anchor Capstan 68.0/76.0 ≥9 50 ≥9
42mm Electric Anchor Capstan 75.0/83.8 ≥9 60 ≥9
44mm Electric Anchor Capstan 82.3/92.0 ≥9 60 ≥9
46mm Electric Anchor Capstan 89.9/100.5 ≥9 70 ≥9
48mm Electric Anchor Capstan 97.9/109.4 ≥9 80 ≥9
50mm Electric Anchor Capstan 106.3/118.8 ≥9 80 ≥9
52mm Electric Anchor Capstan 114.9/128.4 ≥9 90 ≥9
54mm Electric Anchor Capstan 123.9/138.5 ≥9 100 ≥9
56mm Electric Anchor Capstan 133.3/149.0 ≥9 100 ≥9
58mm Electric Anchor Capstan 143.0/159.8 ≥9 120 ≥9
60mm Electric Anchor Capstan 153.0/171.0 ≥9 140 ≥9
62mm Electric Anchor Capstan 163.4/182.6 ≥9 150 ≥9

Main performance Parameters of Hydraulic Anchor Capstan
Specification and Name Workload
(KN)		 Anchor Speed
(m/min)		 Winch Load
(KN)		 Rope Speed
(m/min)
12.5mm Hydraulic Anchor Capstan 6.6 ≥9 5 ≥9
14mm Hydraulic Anchor Capstan 8.3 ≥9 6 ≥9
16mm Hydraulic Anchor Capstan 10.9 ≥9 8 ≥9
17.5mm Hydraulic Anchor Capstan 13.0/14.6 ≥9 10 ≥9
19mm Hydraulic Anchor Capstan 15.3/17.2 ≥9 10 ≥9
20.5mm Hydraulic Anchor Capstan 17.9/20.0 ≥9 15 ≥9
22mm Hydraulic Anchor Capstan 20.6/23.0 ≥9 15 ≥9
24mm Hydraulic Anchor Capstan 24.5/27.4 ≥9 20 ≥9
26mm Hydraulic Anchor Capstan 28.7/32.1 ≥9 20 ≥9
28mm Hydraulic Anchor Capstan 33.3/37.2 ≥9 25 ≥9
30mm Hydraulic Anchor Capstan 38.3/42.8 ≥9 30 ≥9
32mm Hydraulic Anchor Capstan 43.5/48.6 ≥9 30 ≥9
34mm Hydraulic Anchor Capstan 49.1/54.9 ≥9 40 ≥9
36mm Hydraulic Anchor Capstan 55.1/61.6 ≥9 40 ≥9
38mm Hydraulic Anchor Capstan 61.4/68.9 ≥9 50 ≥9
40mm Hydraulic Anchor Capstan 68.0/76.0 ≥9 50 ≥9
42mm Hydraulic Anchor Capstan 75.0/83.8 ≥9 60 ≥9
44mm Hydraulic Anchor Capstan 82.3/92.0 ≥9 60 ≥9
46mm Hydraulic Anchor Capstan 89.9/100.5 ≥9 70 ≥9
48mm Hydraulic Anchor Capstan 97.9/109.4 ≥9 80 ≥9
50mm Hydraulic Anchor Capstan 106.3/118.8 ≥9 80 ≥9
52mm Hydraulic Anchor Capstan 114.9/128.4 ≥9 90 ≥9
54mm Hydraulic Anchor Capstan 123.9/138.5 ≥9 100 ≥9
56mm Hydraulic Anchor Capstan 133.3/149.0 ≥9 100 ≥9
58mm Hydraulic Anchor Capstan 143.0/159.8 ≥9 120 ≥9
60mm Hydraulic Anchor Capstan 153.0/171.0 ≥9 140 ≥9
62mm Hydraulic Anchor Capstan 163.4/182.6 ≥9 150 ≥9
64mm Hydraulic Anchor Capstan 174.4/194.6 ≥9 160 ≥9
66mm Hydraulic Anchor Capstan 185.1/206.9 ≥9 160 ≥9
68mm Hydraulic Anchor Capstan 196.5Z219.6 ≥9 180 ≥9
70mm Hydraulic Anchor Capstan 208.3/232.8 ≥9 200 ≥9
