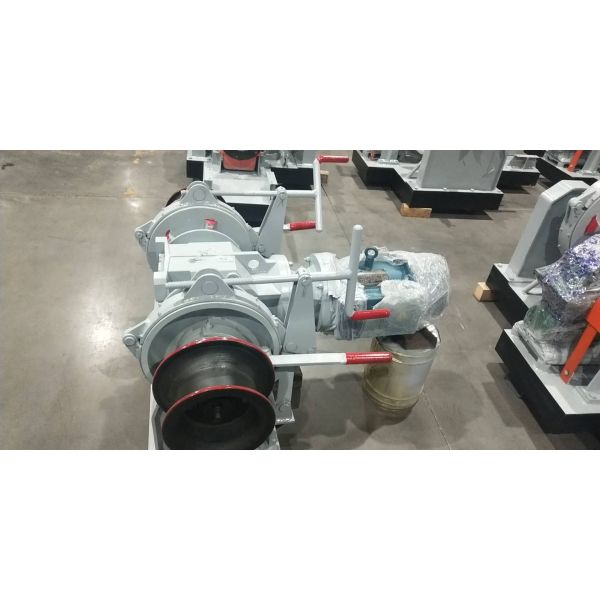

Deck Machinery Dia 22mm Electrical Marine Anchor Windlass Winch
Deck Machinery Dia 22mm Electrical Marine Anchor Windlass Winch
Deck Machinery Dia 22mm Electrical Marine Anchor Windlass Winch
Deck Machinery Dia 22mm Electrical Marine Anchor Windlass Winch
Specifications
Brand Name :
JV
Model Number :
JVL-66
Certification :
CCS,LR,KR,IRS,BV
Place of Origin :
China
MOQ :
1set
Price :
$2000-20000/set
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
1000set/Month
Delivery Time :
30-50 days
Packaging Details :
Standard export pakcage
Part :
Electric Windlass
Application :
Marine hardware
Paint :
According to your requirements
Type :
Standard
Name :
Electric Anchor Windlass Winch
Drive :
Electric or Hydraulic
Warranty :
1 Year
Contract manufacturing :
make by your design
Description

Deck Machinery Windlass Anchor Chain Dia 22mm Electrical Windlass Ship Windlass

Windlass: Chain Dia Φ19-132mmMooring Winch: 5-2000kN
Chain Wheel: Carbon steel casting
Certification: LRS, ABS, BV, KR, CCS, etc.
Gypsy Size: U2 / U3

Working speed: 10m/min

Welcome inquiry with your drawings
Supply customized service
For more details please feel free to contact Debbie Liu : )

According to the customer's requirements, we can design all kinds of specifications and model hydraulic or electrical mooring winches and
combined windlass. The products can meet the rules and requirements of all classification societies. They can be used for the bulk carriers, LNG vessels, etc.
Anchor chain diameter 30-130mm Cable pulling load 50- 1000KN
Chongqing Juvi marine machinery company is an integrated marine technology company that presently specializes in product design, production, and sales.Juvi company is administered by the marine equipment production systems. Every factory that our partner with has passed the CCS,ABS,DNV,LR,NK,RINA,ISO9002, TS16949, UL and other related systems authentication.
More than 10 years of accumulated experience, high-quality products, coupled with our philosophy of absolute integrity in all business dealings have earned us unanimous praise from old and new clients alike, as well as a distinctive reputation in the industry.

Note for marine windlass:

1. Pay attention to whether there are obstructions around;

2. Check whether the gearbox oil level is normal;

3. Check whether the grease in each oil cup is full;

4. Start the master switch and place it in the slow gear for operation;

5. Pay attention to whether there are abnormal sound and vibration;

6. Pay attention to the working condition of the unit (whether there are abnormal sound and vibration);

7. Pay attention to the operating conditions of each bearing (the bearing working temperature should not exceed 65°C);

Main specification and parameter for Electric windlass
Specification of Electric Windlass
Chain Dia
(mm)
Working Load
(kN)
Weigh Anchor
Speed
(m/min)
Supporting Load
(k/N)
Mooring
Load
(kN)
Motor Power
(kW)
19
19
17.2
≥9
135
15
8.5
28
28
37.2
≥9
289
25
11
38
38
68.9
≥9
522
50
22
56
56
149
≥9
1093
80
45
76
76
274.4
≥9
1932
147
60
92
92
402
≥9
2735
200
85
105
105
523.7
≥9
3465
250
115
122
132
707
≥9
4495.5
250
100
