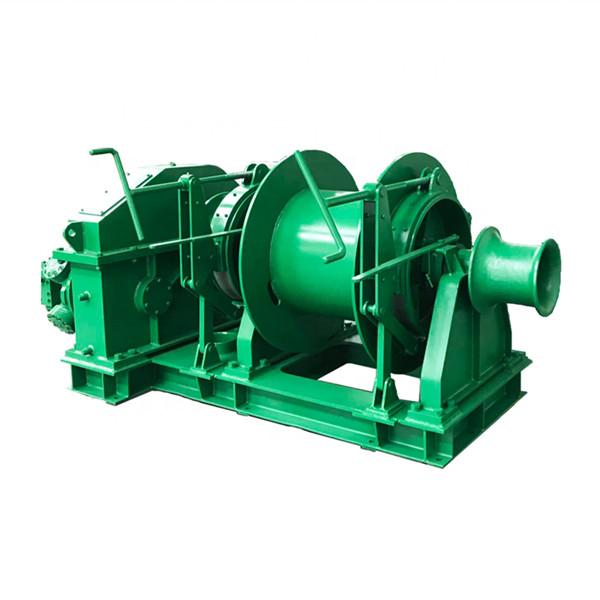

BV Certificate 40mm U2 Chain Grade 92KN Marine Anchor Windlass
BV Certificate 40mm U2 Chain Grade 92KN Marine Anchor Windlass
BV Certificate 40mm U2 Chain Grade 92KN Marine Anchor Windlass
BV Certificate 40mm U2 Chain Grade 92KN Marine Anchor Windlass
BV Certificate 40mm U2 Chain Grade 92KN Marine Anchor Windlass
BV Certificate 40mm U2 Chain Grade 92KN Marine Anchor Windlass
BV Certificate 40mm U2 Chain Grade 92KN Marine Anchor Windlass
BV Certificate 40mm U2 Chain Grade 92KN Marine Anchor Windlass
Specifications
Brand Name :
JUVI
Model Number :
Marine Electric Anchor Windlass
Certification :
ABS, BV, CCS, DNV-GL, KR, LR, NK, RINA, RS, PRS, IRS, CRS
Place of Origin :
China
MOQ :
1 PC
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
10000+PCS+Month
Delivery Time :
25 days
Packaging Details :
Standard Export Packing
Product Name :
BV Ship Vessel Yacht Electric Boat 40mm U2 92KN Marine Electric Anchor Windlass
Application :
Boat, Ship, Vessel, etc
Power source :
Electric, Hydraulic
Voltage :
DC12v, AC, 380V, DC12V/24V, 50HZ/60HZ
Chain Dia. (mm) :
19-100
Anchoring speed (m/min) :
≥9
Certificate :
ABS, BV, CCS, DNV-GL, KR, LR, NK, RINA, RS, PRS, IRS, CRS
Motor power (KW) :
4.3-70KW
Drum capacity (m) :
200
Chain grade (AM) :
U2, U3
MOQ :
1
Description

BV Ship Vessel Yacht Electric Boat 40mm U2 92KN Marine Electric Anchor Windlass


Data Sheet of Marine Electric Anchor Windlass

Chain Dia. (mm) Chain grade
(AM)

Anchoring

speed (m/min)

 Drum rated load
(KN)		 Drum rated speed
(m/min)		 Cable Dia (mm) Drum
capacity
(m)		 Motor power
(KW)
19/20.5/22 2 ≥9 ≤15 ≤15 18 200 4.3/1.7
3
24/26 2 ≥9 ≤20 ≤15 20 200 6/2.5
3
28/30 2 ≥9 ≤25 ≤15 24 200 7.5/7.5/5
3
32/34/36 2 ≥9 ≤35 ≤15 32 200 11/11/7.5
3
38/40/42 2 ≥9 ≤50 ≤15 36 200 16/16/11
3
44/46 2 ≥9 ≤75 ≤15 40 200 22/22/16
3
48/50/52 2 ≥9 ≤75 ≤15 48 200 22/22/16
3
54/56 2 ≥9 ≤100 ≤15 48 200 30/30/22
3
58/60 2 ≥9 ≤100 ≤15 60 200 30/30/22
3
62/64 2 ≥9 ≤150 ≤15 60 200 45/45/30
3
66/68 2 ≥9 ≤150 ≤15 65 200 45/45/30
3
70/73 2 ≥9 ≤150 ≤15 65 200 45/45/30
3
76/78 2 ≥9 ≤200 ≤15 70 200 60/60/45
3
81/83 2 ≥9 ≤200 ≤15 70 200 60/60/45
3
87/90/92 2 ≥9 ≤250 ≤15 80 200 75/75/60
3
95/97/100 2 ≥9 ≤290 ≤15 80 200 85/85/70
3

Deck Equipment Series 1. Mooring Rope/Cable Winch(Hydraulic/Electric)
2. Mooring Anchor Windlass/Winch(Hydraulic/Electric)
3. Mooring Towing Winch
4. Mooring Position Winch
5. Cargo Winch
6. Moving-Boat Winch
7. Scientific Research Winch
8. Linear Winch
9. Double Row Rope Winch
10. Winch Type Towing System
11. Military Bell Winch
12. Offshore Winch
Drive Power Electric /Hydraulic/ Manual/ Diesel
Warping Head,
Gypsy and Drum		 Single/Double, Customized
Gypsy Size Dia. 12.5-127mm(U2,U3), Customized
Working Load 1 Ton to 350 Ton, Customized
Warping Head 10KN-100KN, Customized
Holding Load 68KN-3010KN, Customized
Power Required 4-132KW, Customized
Chain Speed ≥9m/min, Customized
Clutch Manual /Hydraulic Operated Jaw Clutch
Brake Spring Applied Pneumatically or Hydraulic Released Band Brake
Release Emergency Quick Release
Control Type Local Control Console and remote Control Panel
Options Drag Brake System;
Length and Tension Monitoring Systems Stainless Steel Brake Drum;
Chain Stopper;
Fairlead, etc
Advantages High quality with competitive prices
Much experience in production and exportion
Special design for different clients.
Short delivery time if clients need urgently
Certificate: ABS, BV, CCS, DNV-GL, KR, LR, NK, RINA, RS, PRS, IRS, CRS

Windlass Description

1) It should be driven by independent motive power or electric motor.

2) The average speed of the winch anchor when using the rated tension should not be less than 9m/min.

3) There should be a clutch between the sprocket and the load shaft.

4) The installation should ensure that the three eyes (chain cylinder, chain brake, sprocket) are in a line when the anchor chain is drawn out.

Composition of Windlass

It is mainly composed of base, support, anchor chain wheel, brake, chain wheel, gearbox, electronic control system (except manual windlass), etc.

Electric windlasses have motors, and hydraulic windlasses have hydraulic pumping stations.

Electric Windlass (Currently The Most Widely Used On Ships): DC Electric, AC Electric.

1) DC: good speed regulation characteristics, high use efficiency, high initial cost, and brushes need regular maintenance.

2) AC: Poor speed regulation performance, usually only variable speed, relying on pole change or a set of reduction transmission mechanism between the motor and the windlass to obtain several speed grades.

Hydraulic Windlass (Large, Highly Automated Ships)

Mainly rely on hydraulic devices to execute and control actions.

Hydraulic windlass is also called elector-hydraulic windlass because its hydraulic energy comes from an oil pump device driven by an electric motor.

Features of Windlass

1) It has good speed regulation performance equivalent to that of DC electric windlass.

2) Low-speed and high-torque hydraulic motors are usually used, with low rotation speed and large output torque. There is no need to install a huge mechanical reducer and can directly drive the anchor sprocket.

3) Hydraulic transmission has self-braking performance.

4) Compact structure, small weight and size per unit power.

5) Easy to realize remote control and automation

BV Certificate 40mm U2 Chain Grade 92KN Marine Anchor WindlassBV Certificate 40mm U2 Chain Grade 92KN Marine Anchor WindlassBV Certificate 40mm U2 Chain Grade 92KN Marine Anchor Windlass


Q1: Why we choose you?


11 professional engineers can provide overall solution services.
13 years specialising in marine deck equipment .
18 long-term cooperation supporting factories.
24 hours a day after-sale technical support .


Q2: What kind of payments do you accept?


T/T, L/C, Western Union, D/A, D/P, MoneyGram, Paypal etc..


Q3: How about the Delivery Time?


We could finish the production within 2 days


Q4: What's the MOQ?


MOQ is 1 set.

Q5: Packaging

1.Wooden Case; 2.Iron Frame; 3.According to customers' request;


Q6: Shipping


By Express/ Air/ Sea/ Train.
