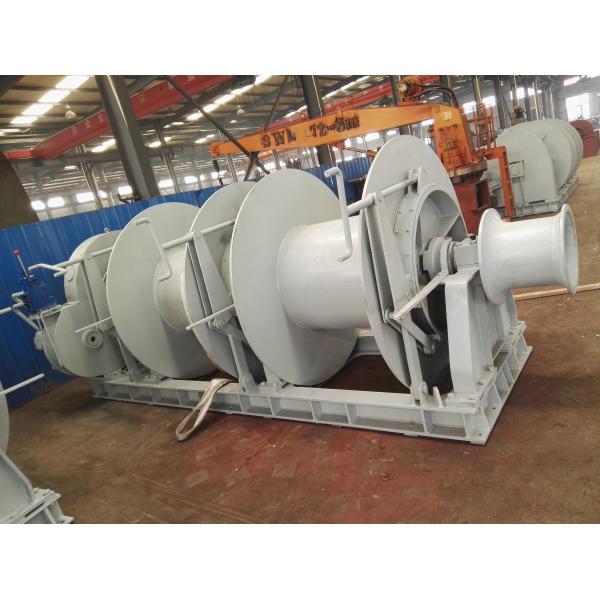

650KN Chain Dia 132mm Auto Tensioning Vessels Hydraulic Mooring Winch
650KN Chain Dia 132mm Auto Tensioning Vessels Hydraulic Mooring Winch
650KN Chain Dia 132mm Auto Tensioning Vessels Hydraulic Mooring Winch
650KN Chain Dia 132mm Auto Tensioning Vessels Hydraulic Mooring Winch
Specifications
Brand Name :
JV
Model Number :
JVL-16
Certification :
LR,CCS,BV,ABS,KR
Place of Origin :
China
MOQ :
1 Set
Price :
$2000-20000/Set
Payment Terms :
T/T, L/C, Western Union
Supply Ability :
1000 Set/Month
Delivery Time :
45-65 Days
Packaging Details :
Standard export package
Application :
Ship
Power source :
Hydraulic
Capacity :
5~650KN
Product name :
mooring winch
Color :
Matte Black or Customer Requirement
Material :
Steel
Warranty :
1 Year
Voltage :
DC12V/24V
Description

Vessels Mooring Hydraulic Winch Auto Tensioning Winch With BV ABS Certificate

Product description:

Types are divided into the built-in hydraulic hoist, exposed hydraulic motor hoist, high-speed hydraulic hoist, low-speed hydraulic hoist,

The hydraulic winch is generally composed of a hydraulic motor, a control valve group, a reduction box, a drum, a support frame, (clutch), a rope press or rope arranging device, and a fixed bracket. Some hydraulic motor winches are still not equipped with a support frame and are immediately composed of a hydraulic motor, a control valve block, a drum, and a tail support plate shaft.

This type of option can be carried out according to the customer's requirements and can be generally used for belt conveyor tensioning equipment, construction machinery equipment lifting equipment such as cranes, crawler cranes, aerial work vehicles, forestry and fruit industry lifting equipment, and seaport ships. Such as harbor cranes, floating ship cranes, dredgers, crane cranes, davits, and large and medium-sized lifting equipment such as oil drilling rigs, offshore oil, and offshore drilling platforms, and rotary drilling rigs for piling machinery, Rock drilling rig, core drilling rig, hydrostatic pile driver.

Windlass: Chain Dia Φ19-132mm

Chian Wheel: Carbon steel casting
Certification: LRS, ABS, BV, KR, CCS, etc.
Gypsy Size: U2 / U3
Marine deck: Winch, Windlass, Capstan (AC, DC, Vertical, Horizontal, Electric, Hydraulic, etc.)
Marine deck mooring: Anchor, Anchor chain.
According to the customer's requirements, we can design all kinds of specifications and model hydraulic or electrical mooring winches and
combined windlass. The products can meet the rules and requirements of all classification society. They can be used for the bulk carriers, LNG vessels, etc.
Anchor chain diameter 30-130mm Cable pulling load 50- 1000KN
Our products have sold to regions as far away as Europe, North America, and Asia, among others. We regularly introduce the most advanced foreign products and technologies into the domestic market and routinely share the latest in scientific and technological advancements with related domestic industries, thus providing a platform of speed and convenience From our beginnings as an international trade business model to an integrated technology solutions business model, Juvi Company has grown and transformed itself to better serve the needs of our customers.

Main specification and parameter for hydraulic mooring winch
Specification of Hydraulic Winch
Rated Pull
(kN)
 Rated Speed (m/min)
Drum Capacity
(m)
Motor Power
(kW)
10KN 10 ≥12 ø11x150 5.5
20KN 20 ≥12 ø17.5x150 22
40KN 40 ≥15 ø30x200 45
50KN 50 ≥15
ø41x250
 75
75KN 75 ≥15 ø56x250 110
100KN 100 ≥12 ø64x250 132
160KN 160 ≥12 ø85x250 132

650KN Chain Dia 132mm Auto Tensioning Vessels Hydraulic Mooring Winch
