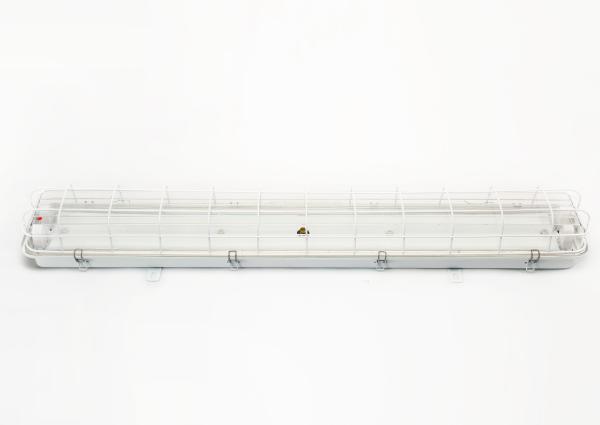

Marine Pendant Light JCY43-2EF Marine Fluorescent Pendant Light CCS

The scope of application:
Applied to illumination of water dripping, water spattering, water
coagulating place in ships, such as oven cabin, dry cabin, tunnel, pipeline,
weather deck and etc.

Products characteristic:
1. The shell adopts good quality stretch-formed steel plate, lampshade is
injection molded by PC, and has the seal structure.
2. In order to prevent from electric shocking, equipped with a copper earthing
rod with the mark in the lights.
3. Plug-in type lamp holder, equipped wiring terminal inside, convenient to connect.
4. The lamp equipped B15d lamp holder, used for 24V/15W emergency bulb,
there is mark on th edge of lampshade, remark clear that need the
emergency device when order.
5. Equipped with compensating capacitance inside, start rapidly.
6. The junction box is improved to double-channel connection mode, the design is more user-friendly.

Production authentication:
Approval by CCS(China Classification Society), certificate number
ZJ20P4028-1.

Adopt standard:
Conform to CB/T3857-1999 standard

Types of marine lights

Navigation lights are lamps that indicate the position and direction of a ship during a voyage. There are 3 types of masthead light, side light and tail light.

Masthead light:

Installed on the top of the mast on the centerline of the ship's fore and aft, it displays an uninterrupted white light in a 225° horizontal arc directly in front, and can see a distance of 2-6 nautical miles.

Sidelight:

There are red lights on the port side and green lights on the starboard side, which are installed on the port and starboard sides of the bridge.

Each displays uninterrupted red and green lights in a horizontal arc of 22.5° from the front of the ship to the rear of the ship's side, and the visible distance is 1 to 3 nautical miles.

Tail light:

Installed at the stern, it displays uninterrupted white light in a horizontal arc of 135° directly behind, and can see a distance of 2 to 3 nautical miles.

Our main products are:

1. Marine Lighting: Navigation signal light, Incandescent light, Fluorescent light, Searchlight, Explosion-proof light, etc.
2. Marine Deck Equipments: Winch, Windlass, Capstan (AC, DC, Vertical, Horizontal, Electric, Hydraulic, etc.)
3. Marine Deck Mooring: Anchor, Anchor Chain.
4. Marine Life-saving: Rescue boat, Life Jacket, Buoy, etc.
5. Customized products according to customers' requests.

Welcome inquiry with your drawings
Supply customized service
For more details please feel free to contact Debbie Liu : )
