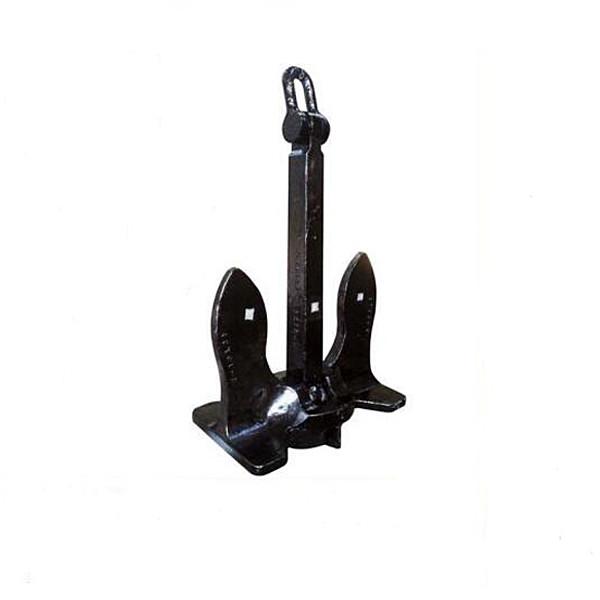

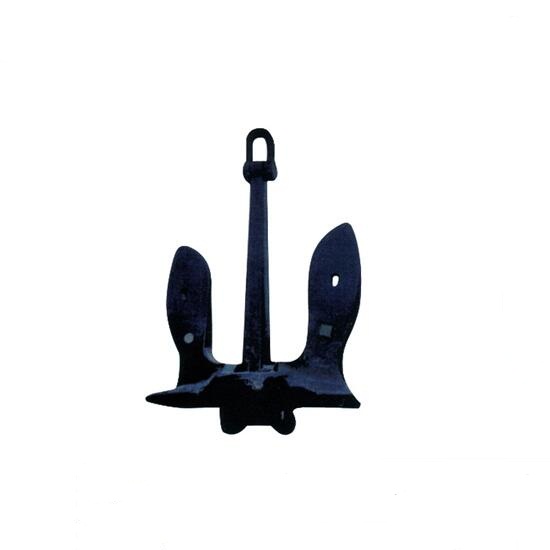

160kg Baldt Stockless Anchor
160kg Baldt Stockless Anchor
160kg Baldt Stockless Anchor
160kg Baldt Stockless Anchor
Specifications
Brand Name :
JV
Model Number :
JVL-5
Certification :
CCS,BV,LR,ABS,KR,IRS
Place of Origin :
China
MOQ :
1pcs
Price :
$8/kg
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
1000pcs/Month
Delivery Time :
30-55 days
Packaging Details :
Standard export package
Material :
Steel,cast iron
Surface :
Black Bitumen Paint
Application :
Ships / Vessels
Product name :
Marine boat anchor
Packing :
Wooden Box
Name :
Stockless Anchor
Surface treatment :
Black Painted
Oem :
We would like to design as the sample and the drawing
Description

Marine Boat Anchors Carbon Steel Black Paint Baldt Stockless Anchor 5 ton Heavy-Duty Anchor

Sea anchor Type Baldt Stockless Anchor:

The Baldt anchor is a conventional type stockless anchor. It is widely used in marine applications. It is usually used as a bower anchor. The anchor is of high quality and good stability.

Product Details:


· High Holding Power anchor
· Material: Carbon steel
· Nominal Weight: 160kg to 50000kg

· Finishing: black painting or hot dip galvanized
· Optional Material: Stainless steel
· Certificate: DNV-GL, BV, ABS, LRS, RINA, RS, CCS

Main products:


1. Marine ship yacht boat light: Navigation signal light, Incandescent light, Fluorescent light, Searchlight, Explosion-proof light, etc.
2. Marine deck: Winch, Windlass, Capstan (AC, DC, Vertical, Horizontal, Electric, Hydraulic, etc.)
3. Marine deck mooring: Anchor, Anchor chain.
4. Marine life-saving: Rescue boat, Life Jacket, Buoy, etc.
5. Customized products:according to customers' requests.

No. Nominal
Weight(KG)		 Size(mm)
A B C D E
JV16-160 160 634 404 219 336 175
JV16-200 200 685 457 241 366 191
JV16-250 250 749 524 269 404 210
JV16-300 300 812 590 296 442 230
JV16-400 400 812 654 330 482 250
JV16-500 500 900 673 356 530 288
JV16-750 750 965 770 407 584 308
JV16-1000 1000 1067 854 457 640 348
JV16-1250 1250 1165 923 475 720 370
JV16-1500 1500 1232 1005 515 748 392
JV16-2000 2000 1370 1092 558 848 430
JV16-2100 2100 1370 1092 558 848 436
JV16-2500 2500 1473 1136 568 848 448
JV16-3000 3000 1625 1194 648 912 483
JV16-3500 3500 1625 1340 698 1003 500
JV16-4000 4000 1734 1354 705 1054 518
JV16-4500 4500 1794 1440 735 1066 563
JV16-5000 5000 1930 1460 762 1130 588
JV16-6000 6000 1930 1613 844 1194 642
JV16-6300 6300 1930 1613 844 1194 642
JV16-7000 7000 2082 1691 882 1263 668
JV16-8000 8000 2265 1691 894 1276 668
JV16-9000 9000 2438 1784 924 1314 695
JV16-9500 9500 2438 1851 957 1392 710
JV16-10000 10000 2438 1918 990 1470 725
JV16-11000 11000 2438 1950 1016 1473 778
JV16-12000 12000 2438 1950 1016 1473 778
JV16-13000 13000 2489 1949 1016 1473 799
JV16-14000 14000 2616 2045 1118 1524 818
JV16-15000 15000 2616 2184 1168 1600 875
JV16-16000 16000 2738 2184 1168 1651 875
JV16-17200 17200 2738 2184 1222 1660 875
JV16-18000 18000 2850 2240 1232 1667 888
JV16-20000 20000 2840 2440 1270 1866 990
JV16-25000 25000 3048 2616 1365 1968 990
JV16-30000 30000 3251 2794 1454 2096 1052
JV16-35000 35000 3429 2946 1524 2210 1107
JV16-40000 40000 3556 3073 1600 2311 1157
JV16-45000 45000 3733 3200 1651 2388 1203
JV16-50000 50000 3860 3327 1727 2515 1246

160kg Baldt Stockless Anchor
