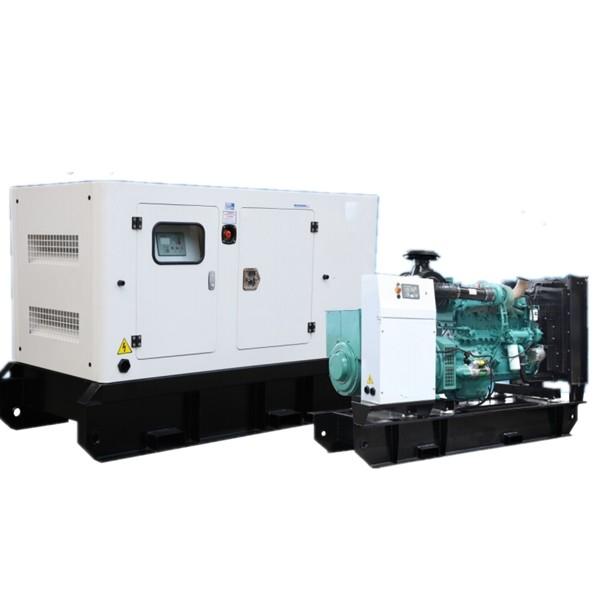

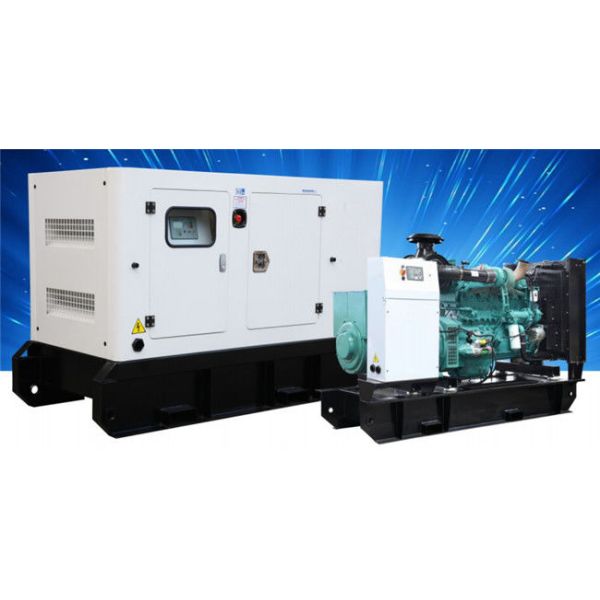

Marine Diesel Generator Set For Cummins Engine 22KW 1320KW 4BT 6CT KTA19 KTA50

Specification

Diesel generator set

Diesel generator set is a kind of power generation equipment with diesel as the main fuel. The diesel engine is used as the motive force to drive the generator (ie electric bulb) to generate electricity, and the kinetic energy is converted into electrical and thermal energy. The complete diesel generator set is mainly divided into three parts:

1. Diesel engine.

2. Generator (ie electric bulb).

3. Controller.

Engine Features:

1. Genuine engine

2. Multi-cylinder in-line or veer engine, 4-stroke, direct injection

3. Naturally aspirated, turbocharged, water cooled or turbocharged with air intercooler

4. Machinery or electronic governing

5. Fuel injection pump

6. Electric motor starting system

7. Forged steel crankshaft, cast iron cylinder and replaceable wet type cylinder liner

8. Low discharge, and low fuel consumption

9. Installed conveniently and maintain easily

Component

Subdivided into: base, diesel engine, base fuel tank, generator set (ie electric bulb), controller (playing a control role and also protecting the set), radiator (air cooling: fan; water cooling: water tank ), silent box and other components.

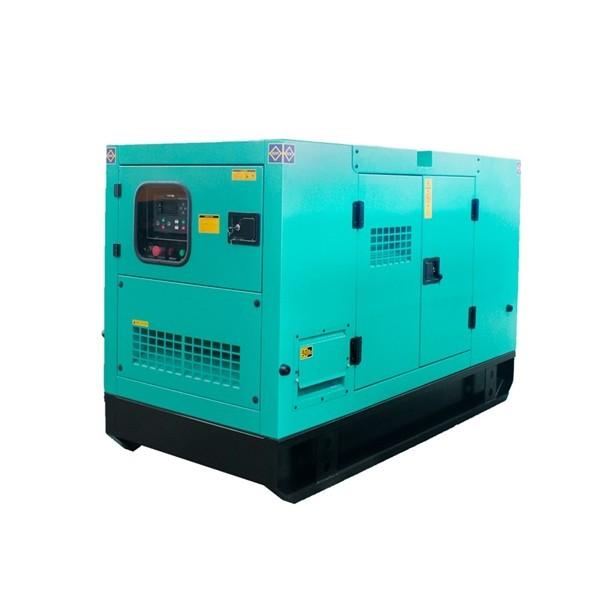

According to the different needs of different places, we divide the generator into fixed and movable trailers. In order to reduce the noise emitted by the generator set and reduce the impact on people's work and life, we have prompted designers to design a power generation with silent box The unit is to install a metal box outside the generator set with sound-absorbing material inside to protect the generator set. Doors are set on both sides of the box to facilitate the maintenance and control of the generator set.

The silent box not only reduces the noise generated by the generator set, but also can be placed outdoors. The box is like a house, sun-proof and rain-proof, saving people the trouble of having no place to build a machine room.

Parts

Diesel generators are composed of common generator sets and standby generator sets, and the power is divided into common power and standby power accordingly. The standard common power of each generator set is generally 80% of the standby power.

According to different needs, usually use the national grid, if you need it due to power failure, please use the standby diesel generator set; if you need to run for a long time, please choose the commonly used diesel generator set, if frequent maintenance, the commonly used diesel generator set runs every year The time can be more than 300 days.

The relationship between common power and standby power is: for example, the user needs a 100KW diesel generator set, and the common power of a 100KW diesel generator set is 100KW*80%=80KW. That is, the usual power of a spare 100KW diesel generator set is 80KW.

If the diesel generator set is equipped with a silent box, the power of the generator set will drop, generally by about 10%. Therefore, when the user chooses a diesel generator set, the power drop of the silent box should be considered.
