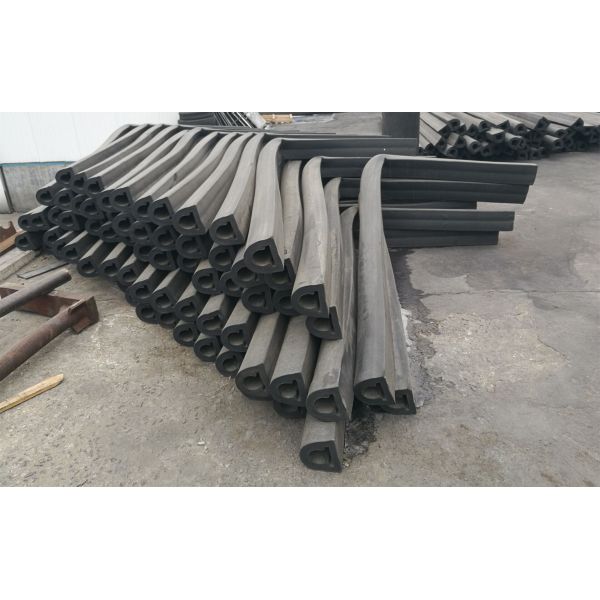

Marine Rubber Fender D Type Decking Fender With CCS Certificate
Rubber Fender:
Made by Natural, Nitrile, Chloroprene, and other general rubbers are used to produce rubber fenders. We can also use Chlorosulfonated Polyethylene (Hypalon), EPDM, Polyurethane, and other special rubbers to produce rubber fenders.
Type:
* Cell Rubber Fender
* Arch Rubber Fender
* D-Type Rubber Fender
* GD-Type Rubber Fender
* Floating Rubber Fender
* Pneumatic Rubber Fender
Welcome inquiry with your drawings
Supply customized service
More details please feel free to contact Debbie Liu : )
Arch rubber fender
1. Higher Energy Absorption with lower reaction Force than normal type Rubber Fender.
2. More reasonable structure with high durability
3. Flexible and convenient installation, wide selection of sizes, and performances.
4. Front Panel with UHMW-PE Face Pad could be installed on the top of the fender to reduce surface pressure and friction factor with the ship which keeps lower shear strength while vessel berthing.
Spec. | Size | ||||||||
H | L | L1 | C | Q | n | B | b1 | b2 | |
TJV-BA200x1000 | 200 | 1000 | 1100 | 120 | 860 | 1 | 145 | 320 | 400 |
TJV-BA 200x1500 | 200 | 1500 | 1600 | 120 | 680 | 2 | 145 | 320 | 400 |
TJV-BA 200x2000 | 200 | 2000 | 2100 | 120 | 620 | 3 | 145 | 320 | 400 |
TJV-BA 200x3000 | 200 | 3000 | 3100 | 120 | 715 | 4 | 145 | 320 | 400 |
TJV-BA 200x3500 | 200 | 3500 | 3600 | 120 | 672 | 5 | 145 | 320 | 400 |
TJV-BA 250x1500 | 250 | 1500 | 1625 | 132.5 | 680 | 2 | 164 | 410 | 500 |
TJV-BA 250x2000 | 250 | 2000 | 2125 | 132.5 | 620 | 3 | 164 | 410 | 500 |
TJV-BA 250x2500 | 250 | 2500 | 2625 | 127.5 | 790 | 3 | 164 | 410 | 500 |
TJV-BA 250x3500 | 250 | 3500 | 3625 | 130 | 673 | 5 | 164 | 410 | 500 |
TJV-BA 400x1000 | 400 | 1000 | 1200 | 150 | 900 | 1 | 300 | 670 | 800 |
TJV-BA 400-1500 | 400 | 1500 | 1700 | 150 | 700 | 2 | 300 | 670 | 800 |
TJV-BA 400x2000 | 400 | 2000 | 2200 | 147.5 | 635 | 3 | 300 | 670 | 800 |
TJV-BA 600x1000 | 600 | 1000 | 1300 | 170 | 960 | 1 | 450 | 1010 | 1200 |
(Unit: mm) |
