Dock Marine Pneumatic Rubber Boat Fender Tugboat Ship Inflatable Floating
Dock Marine Pneumatic Rubber Boat Fender Tugboat Ship Inflatable Floating
Dock Marine Pneumatic Rubber Boat Fender Tugboat Ship Inflatable Floating
Dock Marine Pneumatic Rubber Boat Fender Tugboat Ship Inflatable Floating
Dock Marine Pneumatic Rubber Boat Fender Tugboat Ship Inflatable Floating
Dock Marine Pneumatic Rubber Boat Fender Tugboat Ship Inflatable Floating
Specifications
Brand Name :
FLORESCENCE
Model Number :
JZ-FENDER007
Certification :
CCS BV RS ISO
Place of Origin :
Shandong,China
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
100 pcs per month
Delivery Time :
5-7 days
Packaging Details :
Nude and pallet
Material :
Natural rubber
Color :
Black
Application :
STS STD
Shape :
Round
Thickness :
Depend on size
Type :
Pneumatic
Description

Florescence pneumatic boat fenders are used in the various applications including ship-to-ship & ship-to-dock operations, ports and terminals. Ship berthing rubber fenders are designed to protect the ships and mooring facilities effectively. Marine dock rubber fenders abide by the regulations of ISO 17357:2014 which insure perform safetly even under rough berthing operations.

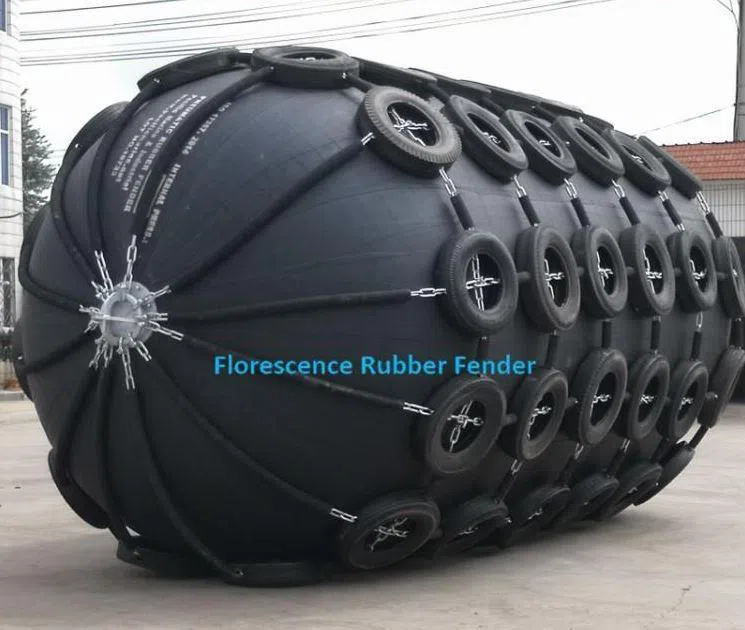

Completed with a lattice of used tires connected by a network of horizontal and vertail chains, which adds further protection to the fender body. Floating fenders are fitted with a towing ring and swivel in galvanized steel. And the stainless steel chain is optional which means sling type or body only is also available,but chain and tyre net type is usually recommended to protect the fender body.

Dock Marine Pneumatic Rubber Boat Fender Tugboat Ship Inflatable Floating

Specification of inflatable rubber ship fender

Specification

D*L(m)

Initial pneumatic pressure

50KPa

Initial pneumatic pressure

80KPa

Applicable

ships

tonnage

(T)

Body

Weight

(Kg)

RF

(KN)

GEA

(KJ)

Body

Weight

(Kg)

RF

(KN)

GEA

(KJ)
0.5*1.0 25 64 6 25 83 8 50
0.6*1.0 32 74 8 32 96 11 50
1.0*1.5 80 182 32 80 235 44 100
1.0*2.0 100 257 45 125 335 63 200
1.2*2.0 120 297 63 165 386 86 300-500
1.35*2.5 165 427 102 226 554 140 300-500
1.5*3.0 315 597 153 370 751 211 1000
1.7*3.0 405 639 191 436 830 263 1000
2.0*3.5 590 875 308 632 1138 424 3000
2.5*4.0 1050 1381 663 1110 1815 925 10000
2.5*5.5 1333 2019 943 1410 2653 1317 10000
3.0*5.0 1880 2104 1210 2155 2709 1571 10000above
3.0*6.0 2160 2583 1485 2470 3292 1888 10000above
3.3*4.5 2020 1884 1175 2300 2476 1640 10000above
3.3*6.5 2700 3015 1814 3080 3961 2532

10000above

Dock Marine Pneumatic Rubber Boat Fender Tugboat Ship Inflatable Floating

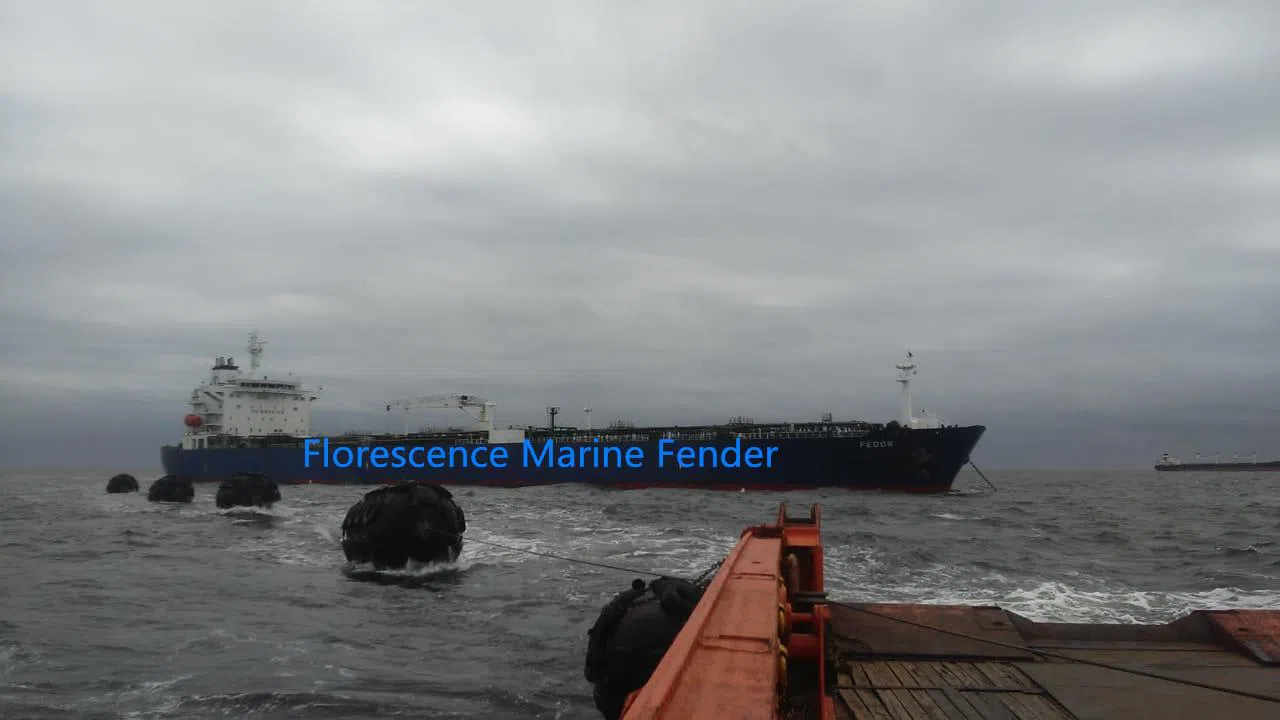

Loading photos of marine inflatable fender

Dock Marine Pneumatic Rubber Boat Fender Tugboat Ship Inflatable Floating

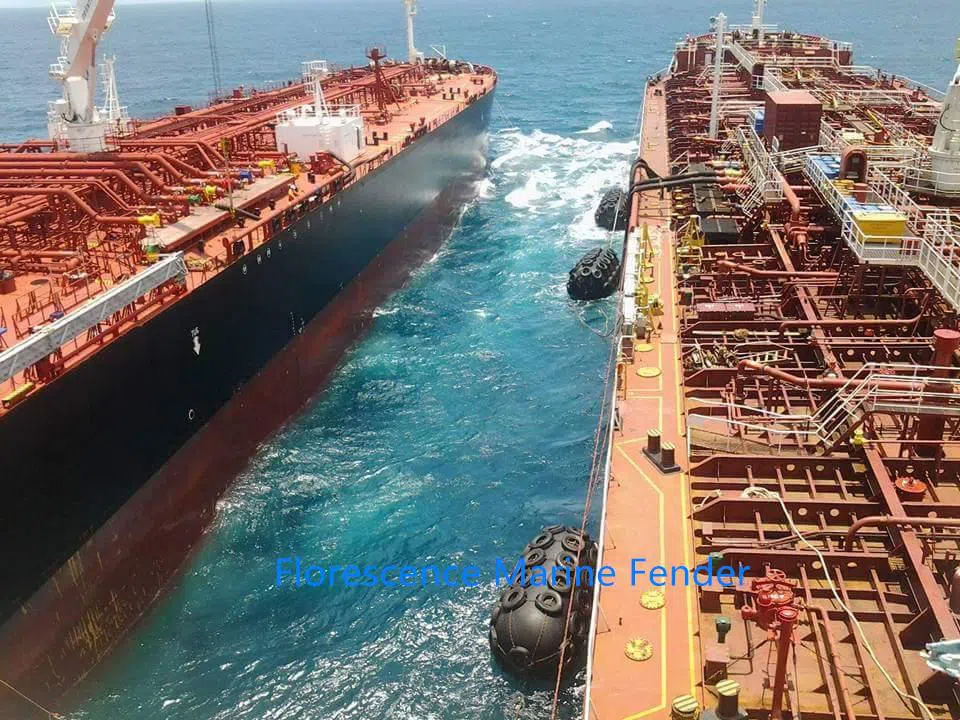

Application of marine berthing rubber fender

1. Offshore platform

2. Oil and gas tankers

3. Fast ferries and aluminium vessels

4. Temporary and permanent installations

5. Rapid response and emergencies

6. In ports with extreme tidal variations

7. Fishing vessel, transport ship and ocean trawler

Dock Marine Pneumatic Rubber Boat Fender Tugboat Ship Inflatable Floating

Dock Marine Pneumatic Rubber Boat Fender Tugboat Ship Inflatable Floating

Features of boat marine fender

☆Guarantee/Warranty

☆International Approvals
☆Military Specifications
☆High energy absorption with a low reaction force
☆Adjust performance by varying internal pressure
☆Low and easy maintenance
☆Low transportation costs - pneumatic fenders can be deflated and folded for transport
☆Suitable for areas with tidal differences
