Solid Float Oil Containment Boom 280 - 900mm Draft For Protecting Water Environment
Solid Float Oil Containment Boom 280 - 900mm Draft For Protecting Water Environment
Solid Float Oil Containment Boom 280 - 900mm Draft For Protecting Water Environment
Solid Float Oil Containment Boom 280 - 900mm Draft For Protecting Water Environment
Solid Float Oil Containment Boom 280 - 900mm Draft For Protecting Water Environment
Solid Float Oil Containment Boom 280 - 900mm Draft For Protecting Water Environment
Solid Float Oil Containment Boom 280 - 900mm Draft For Protecting Water Environment
Solid Float Oil Containment Boom 280 - 900mm Draft For Protecting Water Environment
Specifications
Brand Name :
FLORESCENCE
Model Number :
FLORESCENCE oil boom(23)
Certification :
ISO9001
Place of Origin :
Shandong,China
MOQ :
Negotiable
Price :
Comoetitive
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
3000m per month
Delivery Time :
5-10 days
Packaging Details :
carton,pallets,wooden box,suitable for transportation
Size :
Height from 600 to 1800mm,customized
Working tensile strength :
From 50 to 160KN
Material :
Pvc and rubber
Draft :
280-900mm
Quality :
Excellent
Description

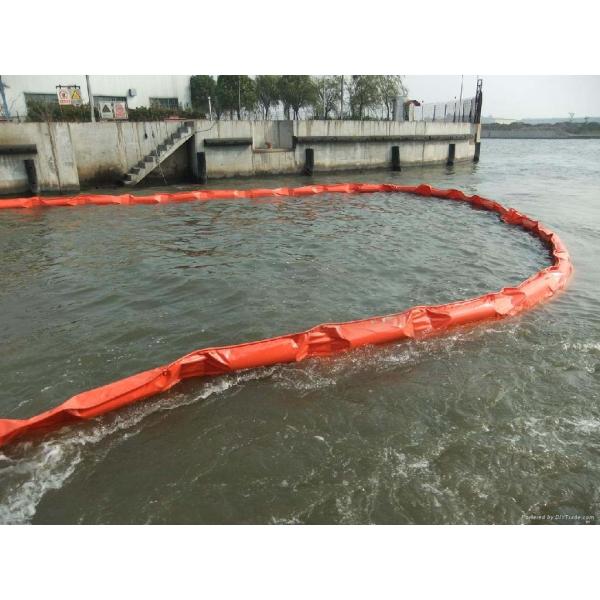

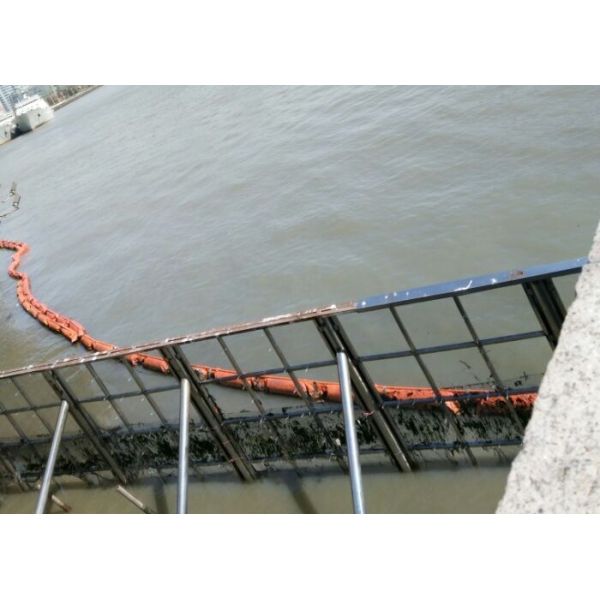

Oil Containment Boom / Solid Float Oil Boom Used For Protecting Water Environment

The solid float PVC boom is an economical,universal boom for intercepting oil spills and other floats on waters.It is suitable for the permanent,stationary deployment on waters.Thanks to its fast deployment and easy operation,it is widely used on rivers,harbors,lakes,offshore oil platforms and other waters.

The solid float rubber boom is the important equipment used for preventing spilled oil on waters from diffusion and transfer.It is widely used for long-term deployment on waters such as open seas,bays,harbors,rivers,oil platform,oil-refining plants,oil piers,oil storage,sea bathing area,etc. And also for emergent use in oil spilling accidents.

Features of solid float oil boom

* Fabricated with special rubber cloth to form the main body,thus high intensity,long endurance,oil-resistance,erosion-resistance are ensured.

* Covered with fire-proof rubber cap which can meet the requirment of fire-resistance.

* Special designed solid floats with higher buoyancy,boom body uniformly exerted by forces,with higher overall strength and good vertical stability.

* Make choice among zipper counterweight,cast iron counterweight and built-in counterweight according to demands.

* Noctilucent or colored outer rubber cover would be decorated according to customer’s requirement.

Technical data of oil containment boom

Model

WGJ

600

WGJ

800

WGJ

1000

WGJ

1200

WGJ

1400

WGJ

1600

WGJ

1800

Overall height

(mm)

600

800

1000

1200

1400

1600

1800

Freeboard(mm)

210

280

340

400

460

520

590

Draft(mm)

280

360

480

600

700

810

900

Max working

tensile strength

(KN)

50

80

100

110

120

140

160

Max wave

Height

to withstand(m)

1.5

2

2

2.5

3

3

3.5

Max wind speed

to withstand(m/s)

10

15

15

20

20

20

25

Max current

speed

to withstand(KN)

1.5

2

2.5

3

3

3-4

3-4

Structure of solid float PVC boom

1. Boom's membrane is PVC double-face coated reinforced fabric.


2. A top ridge rope, middle reinforced belts and a bottom balance chain on boom sections bear the longitudinal load, and form concaves both at the skirt in water and at the flexible sections above water when boom is in a current.


3. There are flexible sections between cross beam like floaters.


4. Easily connect boom sections, which are 20m long.


5. Every section has anchor seats.

Performance of solid float PVC boom


1. High strength and long service life. Because of reasonable force distribution on the boom.


2. Good oil stagnant ability with due to nice posture and high stability in water.


3. Good wave-response. Easy deployment.


4. Easy to clean and maintain.

Solid Float Oil Containment Boom 280 - 900mm Draft For Protecting Water Environment

Solid Float Oil Containment Boom 280 - 900mm Draft For Protecting Water Environment
