Marine Docking Rubber Balloon Airbag Ship Launching Boat Lift Air Bags
Marine Docking Rubber Balloon Airbag Ship Launching Boat Lift Air Bags
Marine Docking Rubber Balloon Airbag Ship Launching Boat Lift Air Bags
Marine Docking Rubber Balloon Airbag Ship Launching Boat Lift Air Bags
Marine Docking Rubber Balloon Airbag Ship Launching Boat Lift Air Bags
Marine Docking Rubber Balloon Airbag Ship Launching Boat Lift Air Bags
Marine Docking Rubber Balloon Airbag Ship Launching Boat Lift Air Bags
Marine Docking Rubber Balloon Airbag Ship Launching Boat Lift Air Bags
Marine Docking Rubber Balloon Airbag Ship Launching Boat Lift Air Bags
Marine Docking Rubber Balloon Airbag Ship Launching Boat Lift Air Bags
Specifications
Brand Name :
FLORESCENCE
Model Number :
FL-SJY027
Certification :
ISO9001
Place of Origin :
Shandong,China
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
500pcs per month
Delivery Time :
5- 7days
Packaging Details :
Pallets,wooden box,suitable for transportation
Product Name :
Marine Docking Rubber Balloon Airbag For Ship Launching
Material :
Natural Rubber
Application :
Launching, landing, lifting, salvage, docking
Structure :
Synthetic-nylon cord layers + outer rubber layer
Size :
1.5x12m 6layers
Diameter :
0.6-2.8m
Length :
5-24m
Layers :
3-10 layers
Service life :
6-8 years
Description

Docking rubber balloon airbag for ship lauching

Docking rubber airbags, also called rubber roller, docking air bags, ship salvage airbag, launching pontoon , now have become one convenient ship launching method in many shipyards, especially where slipways are not available.
Marine Docking Rubber Balloon Airbag Ship Launching Boat Lift Air Bags

Advantages of docking rubber airbag

1)Material :Natural rubber+dipped tyre-cord fabric(enhanced type)
2)Anti-ageing rubber formula ,rubber content more than 57%;the life span is longer than other docking rubber airbags
3)Inflatable,can deflate packaging, convenient for shipping;
4)The valve/lug on both side are all anti-corrosion, not easy to rust
5)Improved air valve,high performance air tight
6)Thicken outer rubber layer ,not easy to damage
Marine Docking Rubber Balloon Airbag Ship Launching Boat Lift Air Bags

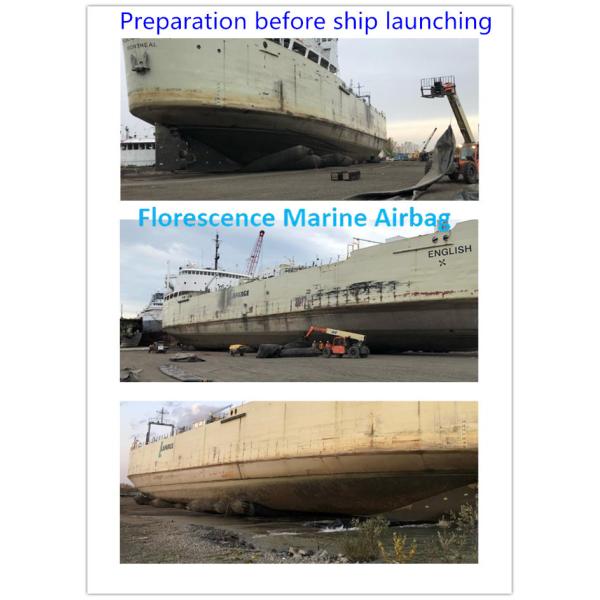

The process of ship launching by airbags

1.Preparing for launching ramp way and all needed equipments.
Select and check suitable docking rubber airbag size and quantity for boat, tide up the launching ramp way, fix the ship by winch and anchors.
2.Taking out all support blocks under stern and middle one by one, and put in airbags.
3.Taking out all support blocks under the prow. Open winch and release the cable, let the ship launch to water.
4.Checking all the deckhouse after launching, retrieving all air bags at meantime.
Marine Docking Rubber Balloon Airbag Ship Launching Boat Lift Air Bags

Attentions during docking rubber airbag use for ship launching

1.Docking rubber airbags must be checked if the pressure is normal before used.
2.The working pressure of docking rubber airbag when used should compare the data in the bearing pressure capacity from mustn't use excessive pressure.
3.It must clean the sharp and protrude hard objects on the ground which could touch with the rubber airbag body before the rubber airbag being used, in case it punchures the surface of the airbag.
4.The distance of the docking rubber airbags under the vessel should no less than 1.5m, the distance after compression should at least 0.8m, in case it occurs the rubber airbag overlapping phenomenon when the boat launching.
Marine Docking Rubber Balloon Airbag Ship Launching Boat Lift Air Bags
Product name
Docking rubber airbag
Diameter range
0.6-2.8m
Effective length range
5-24m
Layers
3-10 layers
Marine Docking Rubber Balloon Airbag Ship Launching Boat Lift Air Bags

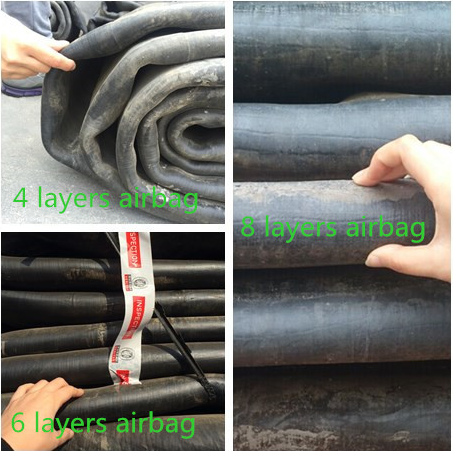

Different layers of docking rubber airbag

Marine Docking Rubber Balloon Airbag Ship Launching Boat Lift Air Bags

Product tags

ship launching airbags

,

ship launching air bag

,

boat lift air bags
