Specifications
Brand Name :
FLORESCENCE
Model Number :
FL-SJY008
Certification :
CCS,ABS,DNV,LR,ISO9001
Place of Origin :
Shandong,China
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
Western Union, L/C, T/T
Supply Ability :
30PCS/Month
Delivery Time :
5-10 days
Packaging Details :
container,pallet,wooden box
Design using life :
more than 10 years
Size :
Customized,according to customers' request
layer :
3-12 layers
Thickness :
more than 5.5mm
Material :
Natural rubber and cord fabric
Standard :
CB/T-3795,CB/T-3837,ISO14409
Description

World Class Marine Airbag / Marine Salvage Rubber Airbags / Pontoon Airbag

Advantages of Florescence marine salvage airbags

1. Big carrying capacity

2. High capacity against compression and twisting

3. Good air tightness,safety and reliability

Standard specifications of Florescence marine salvage airbags

1> Diameter (D): From 0.3m to 2.2 m.

2> Effective Length (EL): From 6m to24m.

3> Total Length (TL): From 7m to28m.

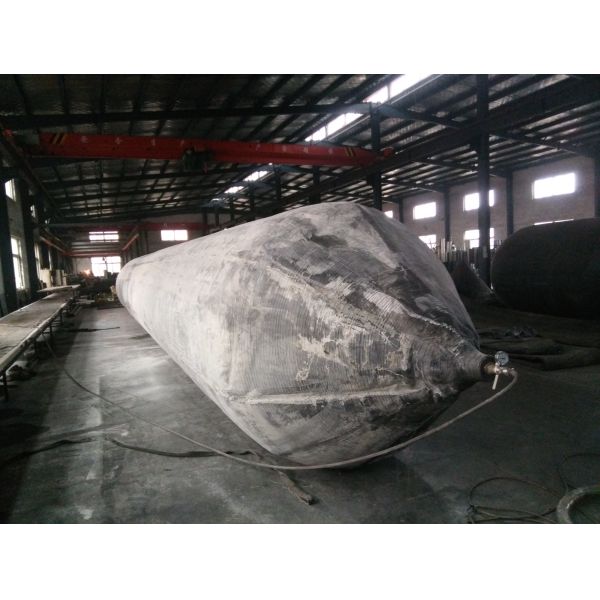

The structure of Florescence rubber airbag:

It consists of a bag body and an iron-end component. The bag body is manufactured by vulcanizing the preliminary shaped airbag made of base rubber and reinforced fiber material. The material of the iron- end component is metal, and it is connected to the bag body firmly.


Working pressure of Florescence marine rubber airbag:

Diameter Layer Work pressure Diameter Layer Work pressure
D=0.8M 3 0.13 Mpa D=1.5M 3 0.07 Mpa
4 0.17 Mpa 4 0.09 Mpa
5 0.21 Mpa 5 0.11 Mpa
6 0.25 Mpa 6 0.13 Mpa
7 0.30 Mpa 7 0.15 Mpa
8 0.33 Mpa 8 0.18 Mpa
D=1.0M 3 0.10 Mpa D=1.8M 3 0.06 Mpa
4 0.13 Mpa 4 0.08 Mpa
5 0.17 Mpa 5 0.09 Mpa
6 0.20 Mpa 6 0.11 Mpa
7 0.25 Mpa 7 0.13 Mpa
8 0.28 Mpa 8 0.15 Mpa
D=1.2M 3 0.09 Mpa D=2.0M 3 0.05 Mpa
4 0.11 Mpa 4 0.07 Mpa
5 0.14 Mpa 5 0.08 Mpa
6 0.17 Mpa 6 0.10 Mpa
7 0.20 Mpa 7 0.12 Mpa
8 0.23 Mpa 8 0.14 Mpa

Storage of the marine salvage airbags

1. If the air bag will not used for quite a long time, it shall be washed and dried, filled with French chalk inside and coated with French chalk outside as well as put in dry, shady and ventilated place in the room.

2. Place storing the air bag shall be far away from the heat source.

3. The air bag can’t contact with acid, alkali, grease and organic solvents.

4. The air bag should be stretched flat when not used. it’s not allowed to pole up and stack heavy object on the air bag.

FAQ

Q1: What’s your delivery time and payment terms?

A: Delivery time is according to customers’ size and order qty.The payment terms you could choose are T/T,L/C at sight,Western Union and so on.

Q2: What’s certificates can your company provide?

A:We can provide CCS,ABS,DNV,LR,BV certificates.

Q3: What about your warranty time?

A: Our warranty period is 24 months.During this time,any problems about products from our factory,we solemn promise to change and repair them for free;if problems from customers’ improper operating,we could provide free guidance and repair materials
