Specifications
Brand Name :
FLORESCENCE
Model Number :
FL rubber fender(67)
Certification :
CCS,ABS,DNV,LR,ISO9001
Place of Origin :
Shandong,China
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
Western Union, L/C, T/T
Supply Ability :
100 pcs/month
Delivery Time :
5-10 work days
Packaging Details :
nude,container
Main material :
Natural rubber and cord fabric
Diameter :
from 0.3-4.5m
Warranty period :
24 months
Design using life :
Usually 10 years
Product name :
Marine rubber fender
Inner filling thickness :
3 mm
Description

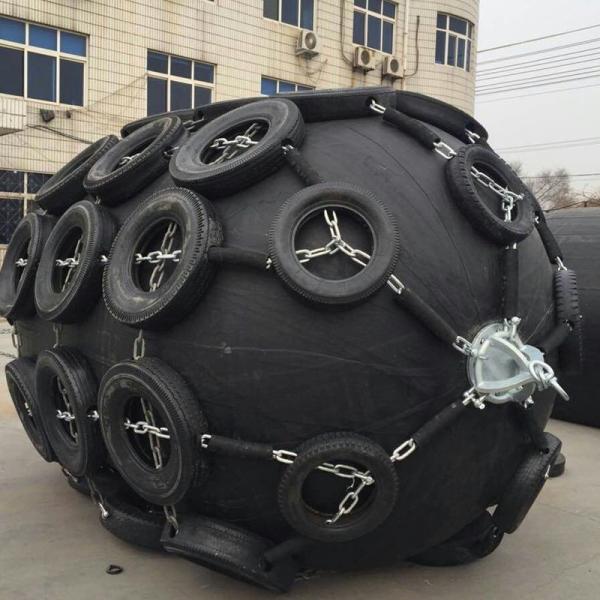

Double Inner Filling Of Pneumatic Marine Rubber Fender For Boats

In order to produce the qualified and famous China Brand of pneumatic fenders , FL RUBBER invested the advanced production and test equipments, and invited the foreign experienced engineers of pneumatic fenders, which ensure all FL pneumatic fenders are manufactured comply with ISO17357:2002. Therefore, FL-RUBBER is the unique manufacturer of ISO17357 qualified Pneumatic Fenders in China.

In order to protect your maritime values,FL-RUBBER strongly recommends the use of ISO certified Pneumatic Fenders while performing the high quality needed for safe berthing during ship to ship operations involving bunkering or discharging of oil or gas, and ship to port operation

Advantages of FL marine rubber fender:


* Absorb more energy,less reverse impact on the ships


* More flexible ,easy installation


* Long term service life


* Not being bent out of shape under pressure


* Good air tightness,safety and reliability


* Durable, practical and economical


* Good quality have been checked by many buyers


* Optional tire and chain,can provide chain with hot galvanizing or stainless steel(304,312,316)


* Optional end fittings for the better suitable of applications

Notes about FL marine rubber fender

* Frequently check whether the fender body si damaged and whether the pressure is normal,and the valve core must be replaced every six moths

* The steel wire should wrap the rubber pipe,when trying steel wire to pneumatic rubber fender in case the fender is stabbed

* The surface or subject next to the pneumatic rubber fender can’t be hard and sharp-pointed in case the pneumatic rubber fender is stabbed

* The accessories and jip’s nuts can’t be loose when testing the internal pressure

* The rope net should be reliable,the steel wire used for hanging metal parts and the hook link can’t be tied in disorder.

Technical performance of pneumatic rubber fender

Specification

DXL(m)

0.05Mpa(Initial pressure 0.05Mpa) (Initial pressure 0.08Mpa)
Weight(kg) Reaction force(KN)

GEA

(KJ)

Weight

(kg)

Reaction force(KN)

GEA

(KJ)

0.5X1.0 25 674 6 25 85 8
0.6X1.0 32 74 8 32 98 11
0.7X1.5 50 137 17 50 180 24
1.0X1.5 80 182 32 80 239 45
1.0X2.0 100 257 45 125 338 63
1.2X2.0 120 297 63 165 390 88
1.35X2.5 165 427 102 226 561 142
1.5X3.0 315 579 153 370 761 214
1.7X3.0 405 639 191 436 840 287
2.0X3.5 590 875 308 632 1150 430
2.5X4.0 1050 1381 663 1110 1815 925
2.5X5.5 1333 2019 943 1410 2653 1317
3.0X5.0 1880 2000 1050 2155 2709 1571
3.0X6.0 2160 2488 1312 2470 3292 1888
3.3X4.5 2020 1884 1175 2300 2476 1640
3.3X6.0 2300 2783 1675 2600 3652 2338
3.3X6.5 2700 3015 1814 3080 3961 2532
3.3X10.6 4403 5257 3067 5020 6907 4281
4.5X9.0 6554 5747 4752 7470 7551 6633
4.5X12 8739 7984 6473 9960 10490 9037
Note:The weight is the fender body weight(without tires and chain),with weight error of ±10% and counterforce error of ±10%

Double Inner Filling Of Marine Pneumatic Rubber Fender For Boats

Double Inner Filling Of Marine Pneumatic Rubber Fender For Boats

FAQ

Q1: Are you factory or trading company?

A: Qingdao Florescence Rubber Industry Co.,Ltd is the company and factory,located in Jimo City,Qingdao,near to Qingdao port and Qingdao airport,which is convenient for transportation.

Q2: What’s your delivery time and payment terms?

A: Delivery time is according to customers’ size and order qty.The payment terms you could choose are T/T,L/C at sight,Western Union and so on.

Q3: What about your warranty time?

A: Our warranty period is 24 months.During this time,any problems about products from our factory,we solemn promise to change and repair them for free;if problems from customers’ improper operating,we could provide free guidance and repair materials
