Specifications
Brand Name :
Florescence
Model Number :
Marine airbags
Certification :
CCS,ABS,DNV,LR,ISO9001
Place of Origin :
Shandong,China
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
Western Union, L/C, T/T
Supply Ability :
30PCS/Month
Delivery Time :
5-10 days
Packaging Details :
container,pallet,wooden box
Cord Fabric :
1880D2,100% raw silk
Standard :
CB/T-3795,CB/T-3837,ISO14409
Thickness :
More than 5.5mm
Layer :
3-10 layers
Pressure :
0.17-0.33Mpa
Color :
Black
Description

Used For Boats Launching Airbag With Marine Inflatable Rubber Airbag

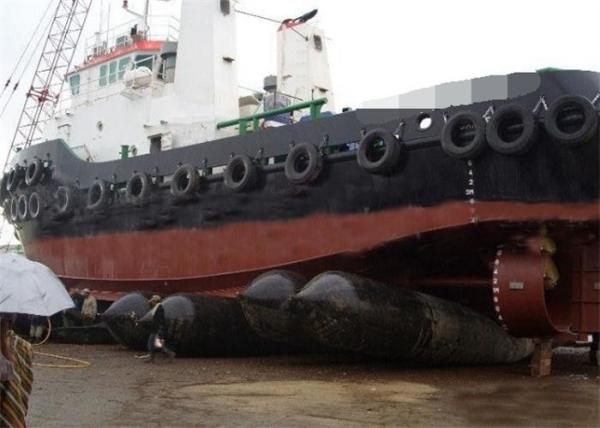

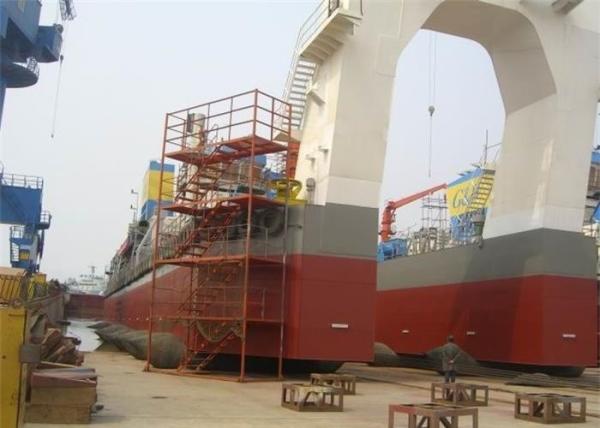

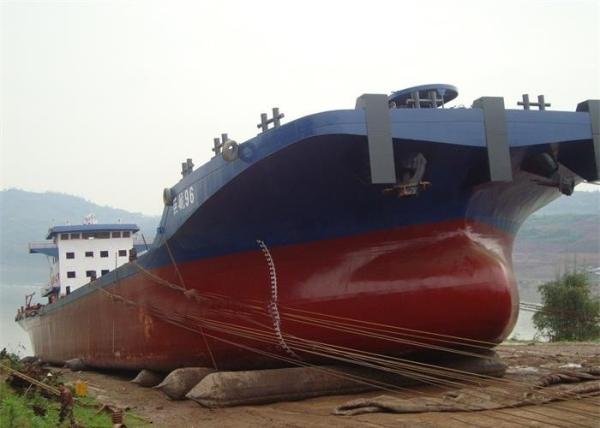

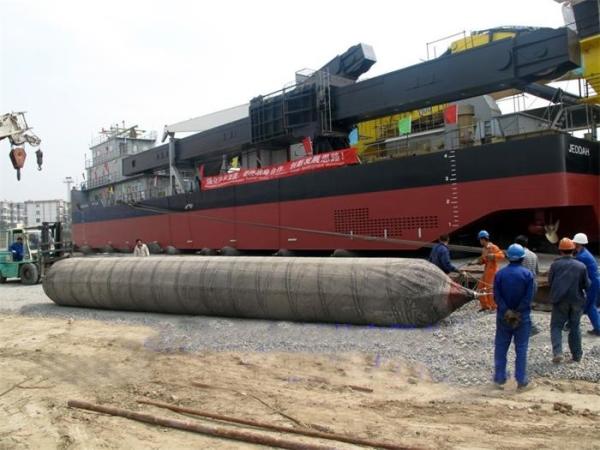

Florescence inflatable rubber airbag is a kind of innovative product with our own intellectual property.It has been widely used in the ship launching and landing,the caissons lifting movement, the removal of other heavy objects, underwater installation work buoyancy aid and other areas. Marine airbag applications are not affected by site constraints, and don't need large-scale machinery and equipment,so that to shorten the project cycle and save a lot of money. After 20 years of development practice,prove that it is safe,efficient, green,and flexible.

Advantages of Florescence inflatable rubber airbag

Optimized structural layout

The principle for optimizing the structural layout is to determine the size and orientation of the major stress in the working process, and then adjust the angle of the cord yarn at each layer to equalize the stressing onto each later more or less in order to give a full play to the efficiency of the fortifying fiber. For this purpose .we have established the strength model for the inflating rubber airbag and also tested the compressive property. We also studied the variation law of the size and orientation of the major stress on the bag wall and found out the best cord yarn layout. The new design has been proved very successful through bursting test and in-service use.

Durable aging resistance and anti-wear characteristic

The marine airbag works in very harsh environment where it is exposed to the sunlight, seawater, grits and pollutants. So the surface of the airbag must be wear resistant, sea water and chemical resistant and anti-aging. With its substrate made of natural rubber and auxiliary materials, Florescence marine rubber airbag with the high carrying capacity is proved to be of durable aging resistance and wearing quality.

Standard specifications of Florescence inflatable rubber airbag

1> Diameter (D): From 0.3m to 2.2 m.

2> Effective Length (EL): From 6m to24m.

3> Total Length (TL): From 7m to28m.

4> Other specification of ship launching airbags also available upon customer’s request

Technical parameters of Florescence inflatable rubber airbag:

Type

Diameter

Pressure

marine airbag can load

Working height

Static

Pressure load

Dynamic pressure load

Plan

airbag

0.8m

0.06mpa

0.3m

8 ton

4 ton

1m

0.05mpa

0.3m

9 ton

5 ton

1.2m

0.05mpa

0.35m

10 ton

6 ton

1.5m

0.05mpa

0.7m

12 ton

8 ton

1.8m

0.04mpa

0.8m

Slope

airbag

0.8m

0.06mpa

0.3m

9.6 ton

6 ton

1m

0.05mpa

0.3m

10.8 ton

7.5 ton

1.2m

0.05mpa

0.35m

12 ton

9 ton

1.5m

0.05mpa

0.7m

14.4ton

12 ton

1.8m

0.04mpa

0.8m

18 ton

15 to

Intertwine airbag

0.8m

0.06mpa

0.3m

12 ton

7.2 ton

1m

0.05mpa

0.3m

13.5 ton

9 ton

1.2m

0.05mpa

0.35m

15 ton

10.8 ton

1.5m

0.05mpa

0.7m

18 ton

14.4 ton

1.8m

0.4mpa

0.8m

22.5 ton

18 ton

FAQ

Q1: Are you factory or trading company?

A: Qingdao Florescence is the company and factory,located in Jimo City,Qingdao,near to Qingdao port and Qingdao airport,which is convenient for transportation.

Q2: What’s your delivery time and payment terms?

A: Delivery time is according to customers’ size and order qty.The payment terms you could choose are T/T,L/C at sight,Western Union and so on.

Q3: What about your warranty time?

A:Our warranty period is 24 months.During this time,any problems about products from our factory,we solemn promise to change and repair them for free;if problems from customers’ improper operating,we could provide free guidance and repair materials
