Specifications
Brand Name :
Florescence
Model Number :
airbags
Certification :
CCS,ABS,DNV,LR,ISO9001
Place of Origin :
Shandong,China
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
Western Union, L/C, T/T
Supply Ability :
30PCS/Month
Delivery Time :
5-10 days
Packaging Details :
container,pallet,wooden box
Material :
Natural rubber:RSS3,imported from Thailand
Cord Fabric :
1880D2,100% raw silk
Warranty period :
24 months
Design using life :
10 years
Color :
Black
Layer :
3-12 layers
Description

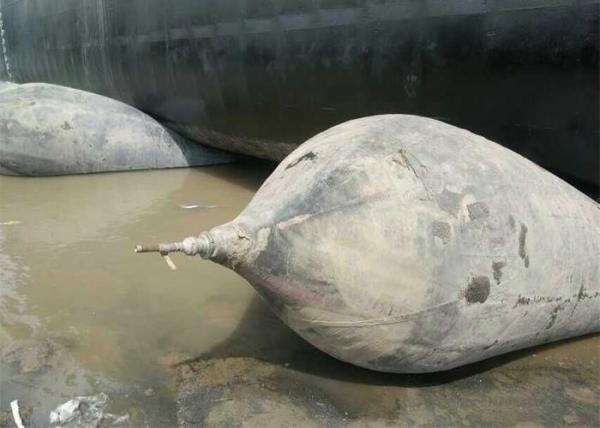

Used For Ocean Engineering Moving With Lifting Inflatable Rubber Airbag

Advantages of Florescence inflatable rubber airbag

Durable aging resistance and anti-wear characteristic

The marine airbag works in very harsh environment where it is exposed to the sunlight, seawater, grits and pollutants. So the surface of the airbag must be wear resistant, sea water and chemical resistant and anti-aging. With its substrate made of natural rubber and auxiliary materials, Florescence marine rubber airbag with the high carrying capacity is proved to be of durable aging resistance and wearing quality.

Higher flexibility and damping capacity

Florescence inflating marine rubber airbag is made by the special windup process and low-temperature long curing .its wall thickness is even without the secondary seam coming from the lap joint. So Florescence inflating rubber airbag can be made more thin, flexible and elastic under the same strength. When it rolls under the ship bottom, the contact pressure with the bottom would be less and even and it also has higher damping capacity. When the ground is sloped or rugged, such soft elastic property is in favor of eliminating the structural stress and lowering risk of ship going into the water.


Standard specifications of Florescence inflatable rubber airbag

1> Diameter (D): From 0.3m to 2.2 m.

2> Effective Length (EL): From 6m to24m.

3> Total Length (TL): From 7m to28m.

4> Other specification of ship launching airbags also available upon customer’s request
Working pressure of Florescence marine rubber airbag:

DiameterLayerWork pressureDiameterLayerWork pressure
D=0.8M30.13 MpaD=1.5M30.07 Mpa
40.17 Mpa40.09 Mpa
50.21 Mpa50.11 Mpa
60.25 Mpa60.13 Mpa
70.30 Mpa70.15 Mpa
80.33 Mpa80.18 Mpa
D=1.0M30.10 MpaD=1.8M 30.06 Mpa
40.13 Mpa40.08 Mpa
50.17 Mpa50.09 Mpa
60.20 Mpa60.11 Mpa
70.25 Mpa70.13 Mpa
80.28 Mpa80.15 Mpa
D=1.2M30.09 MpaD=2.0M30.05 Mpa
40.11 Mpa40.07 Mpa
50.14 Mpa50.08 Mpa
60.17 Mpa60.10 Mpa
70.20 Mpa70.12 Mpa
80.23 Mpa80.14 Mpa



Quality guarantee

The product is up to the quality requirements of ISO14409:2011 “Air bags for the up-to-slipway and launching of the ship.
Should quality problem happen within a year, it is guaranteed to change or refund on the condition that the transportation, storage and working conditions are up to the regulations.

FAQ


Q1: What’s the material of your products?
A: Our raw material is natural rubber, and rubber-dipped nylon cord fabric

Q2: What’s your delivery time and payment terms?
A: Delivery time is according to customers’ size and order qty.The payment terms you could choose are T/T,L/C at sight,Western Union and so on.

Q3: What’s certificates can your company provide?
A: We can provide CCS,ABS,DNV,LR,BV certificates.

Q4: What about your warranty time?
A: Our warranty period is 24 months.During this time,any problems about products from our factory,we solemn promise to change and repair them for free;if problems from customers’ improper operating,we could provide free guidance and repair materials
