Tugboat Rubber Fender Marine Rubber Fender With BV CCS Approved
Tugboat Rubber Fender Marine Rubber Fender With BV CCS Approved
Tugboat Rubber Fender Marine Rubber Fender With BV CCS Approved
Tugboat Rubber Fender Marine Rubber Fender With BV CCS Approved
Tugboat Rubber Fender Marine Rubber Fender With BV CCS Approved
Tugboat Rubber Fender Marine Rubber Fender With BV CCS Approved
Tugboat Rubber Fender Marine Rubber Fender With BV CCS Approved
Tugboat Rubber Fender Marine Rubber Fender With BV CCS Approved
Tugboat Rubber Fender Marine Rubber Fender With BV CCS Approved
Tugboat Rubber Fender Marine Rubber Fender With BV CCS Approved
Tugboat Rubber Fender Marine Rubber Fender With BV CCS Approved
Tugboat Rubber Fender Marine Rubber Fender With BV CCS Approved
Specifications
Brand Name :
Florescence
Model Number :
Florescence Rubber Fender
Certification :
BV, CCS, ABS, LR etc.
Place of Origin :
Qingdo
MOQ :
1
Price :
200
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
200 pcs per day
Delivery Time :
within 10 days
Packaging Details :
Metal and wooden pallet
Part :
Hinge
Name :
D Type Rubber Fender
Application :
STS, STD
Material :
NBR
Factory Standard :
ISO 9001:2015
Warrenty :
2 years
Usage :
Protect Boat
Package :
Pallet
Description

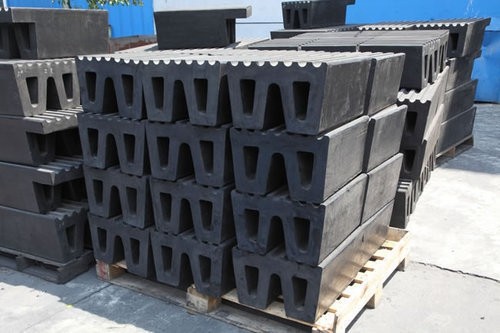

W Rubber Fender

W fender

W-Fenders are specially designed as vertical fenders for the bow and stern of tugs. It’s unique profile is able to accomodate the tight radius and closely follow the ship’s contours. The wider external face present a continue and uniform surfaces thus providing an unbroken protective surfaces at the bow and stern of tugboats.
The special shape of the W-Fenders offer savings in weight and installation advantages - reduce both the initial purchase and installation cost.

Tugboat Rubber Fender Marine Rubber Fender With BV CCS Approved

Type
A
B
C
D
E
F
K
LMax
W32-20
320
200
280
180
100
67
50
3000
W40-25
400
250
350
220
110
75
55
3000
W48-30
480
300
420
270
145
90
65
3000
W50-45
500
450
420
270
145
100
75
3000
Dimensional Tolerance Cross Section : > 100mm : ± 4%, or < 100mm : ISO3302-1, Class E3 Length : ± 20mm

W Type rubber fender is one of the most effective bumpers for protecting tugboats by means of absorbing excessive bumps and shocks.It is generally fastened to the stern and bow of boats in conjunction withaped profile with grooves on the top of fenders for extra grip and low pressure while pushing.Its special structure makes the fender much easier to install using guide rods whether at large or small radius.
“Florescence” W Type rubber fenders are produced in strict accordance with the ISO17357-2002 and GB/T 2002-2002 international quality standard, our products have exported to all over the world.

Extruded Fender

Extruded Fender

Extruded Fender is able to be delivered with fixing points, i.e. holes drilled into the fender, sloping ends, fixing plates, bolts and accessories. Extruded lengths vary dependant on handling and transport criteria. Extruded fenders are normally used as side fendering on tugs, supply vessels and pilot boats.
Typical Mounting Details For Ships

Tugboat Rubber Fender Marine Rubber Fender With BV CCS Approved

Tugboat Rubber Fender Marine Rubber Fender With BV CCS Approved

Feature

1.Used for ship and tug boat.

2.Large contact area and low surface.

Note

1.Fender length is subject to customer's requirement.

2.Fender in other specifications are available upon request.

Note

1.Fender length is subject to customer's requirement.

2.Fender in other specifications are available upon request.
