Marine Lifting Rubber Culvert Making Balloon Airbag In Kenya
Marine Lifting Rubber Culvert Making Balloon Airbag In Kenya
Marine Lifting Rubber Culvert Making Balloon Airbag In Kenya
Marine Lifting Rubber Culvert Making Balloon Airbag In Kenya
Marine Lifting Rubber Culvert Making Balloon Airbag In Kenya
Marine Lifting Rubber Culvert Making Balloon Airbag In Kenya
Marine Lifting Rubber Culvert Making Balloon Airbag In Kenya
Marine Lifting Rubber Culvert Making Balloon Airbag In Kenya
Marine Lifting Rubber Culvert Making Balloon Airbag In Kenya
Marine Lifting Rubber Culvert Making Balloon Airbag In Kenya
Specifications
Brand Name :
FLORESCENCE
Model Number :
NC1-2
Certification :
CCS,ABS,BV,LR,CCS BV GL
Place of Origin :
Shandong, China
MOQ :
1 piece
Price :
USD1000
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
100pcs per month
Delivery Time :
5-15 days
Packaging Details :
Pallet
Product name :
Marine Airbag
Diameter :
0.6-2.8m
Usage :
Ship launching,ship rubber marine salvage lift bags,Boat Fender,marine rubber airbag,lifting airbags
Packing :
Pallet
Lifespan :
6-8 Years
Standard :
ISO14409,CB/T-3837;ISO14409,ISO 14409,CB/T-3795,IMCA D 016
Layer :
3-10 layers
Working pressure :
0.05MPa to 0.15MPa
Warranty :
2 Years
Long :
8--24M
Layers :
4-10 layers
Type :
Pnematic
Description

Boat Rubber Air Bag Construction:
Reinforced Synthetic Tire-Cord Layer:
The boat rubber air bags are made with reinforced synthetic tire-cord layers which have a much better performance than air bags made with PVC coated fabrics.
High-Pressure Design:
The boat rubber air bags have a maximum working pressure of 0.25Mpa.
Holistic Screw Technology:
This method of manufacture ensures that there aren't any welded seams making for a stronger product than RF welded boat rubber air bags.

Details of ship launching airbags:

Name ship launching airbags / marine airbags for vessel/boat/launch
Material Natural rubber
Brand Name Florescence
Characteristic

1. High strength

2. Wear resistance and anti-aging

3. Good air tightness

4. Safety and reliability

5. High kneading & compressing resistance and damping capacity

Certification CCS,ABS,BV,DNV,ISO14409:2011
Price excellent quality and competitive price
Packaging wooden packing or upon customers requirement

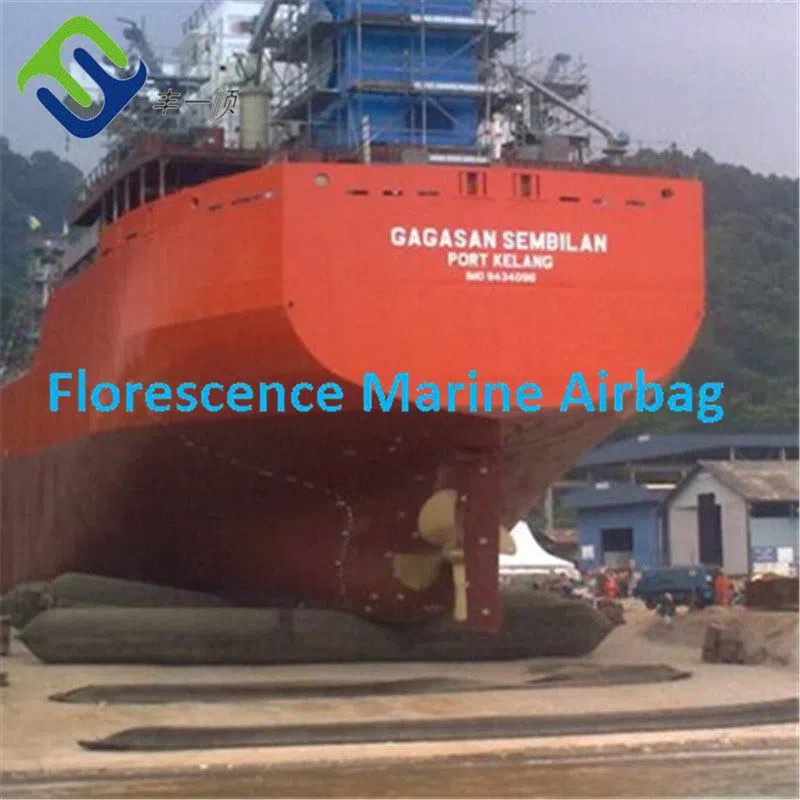

Applicable for ship 1. ship launching and ship landing airbags
2. rubber airbag for ship lifting,heavy lifting,caisson moving,upgrading,heavy building or constructions moving
3. Standard ship airbag maximum diameter size range is 2.0m

4.High-pressure ship launching marine airbags are used for ship launching, ship landing, ship lifting, loading, and floating.

Advantage

Our test the ship rubber airbags purchased based on the test items indicated below:
* The appearance of the airbag is free from defects such as blemishes, bubbles, cracks, etc.
* The diameter, length and working pressure of each air bag need to be tested before shipping.
* The airtightness test of the airbag complies with the ISO 14409 standard. Air loss per hour does not exceed 5%

Marine Lifting Rubber Culvert Making Balloon Airbag In Kenya

Ship Launching Bearing Capacity
Diameter
Working Pressure
Working Height
Guaranteed Bearing Capacity per Unit Length
m
MPA
m
kN/m
t/m
1b/ft
D=0.8m
0.25MPA
0.5m
117.92
12.02
8079
0.4m
157.16
16.02
10768
0.3m
196.49
20.03
13463
0.2m
235.73
24.03
16151
D=1.0m
0.20MPA
0.6m
125.76
12.82
8617
0.5m
157.16
16.02
10768
0.4m
188.65
19.23
12925
0.3m
220.04
22.43
15076
0.2m
251.53
25.64
17233
D=1.2m
0.17MPA
0.7m
133.61
13.62
9154
0.6m
160.3
16.34
10983
0.5m
187.08
19.07
12818
0.4m
213.76
21.79
14646
0.3m
240.44
24.51
16474
0.2m
267.22
27.24
18309
D=1.5m
0.13MPA
0.9m
122.63
12.5
8402
0.8m
143.03
14.58
9800
0.7m
163.43
16.66
11198
0.6m
183.94
18.75
12602
0.5m
204.34
20.83
14000
0.4m
224.75
22.91
15398
0.3m
245.15
24.99
16797
0.2m
267.81
27.3
18349
D=1.8m






0.11MPA
1.1m
120.96
12.33
8287
1.0m
138.22
14.09
9470
0.9m
155.59
15.86
10660
0.8m
172.85
17.62
11843
0.7m
190.22
19.39
13033
0.6m
207.48
21.15
14216
0.5m
224.75
22.91
15398
0.4m
242.01
24.67
16581
0.3m
259.38
26.44
17771
0.2m
276.64
28.2
18954



D=2.0m



0.10MPA
1.2m
125.76
12.82
8617
1.1m
141.46
14.42
9692
1.0m
157.16
16.02
10768
0.9m
172.85
17.62
11843
0.8m
188.64
19.23
12925
0.7m
204.34
20.83
14000
