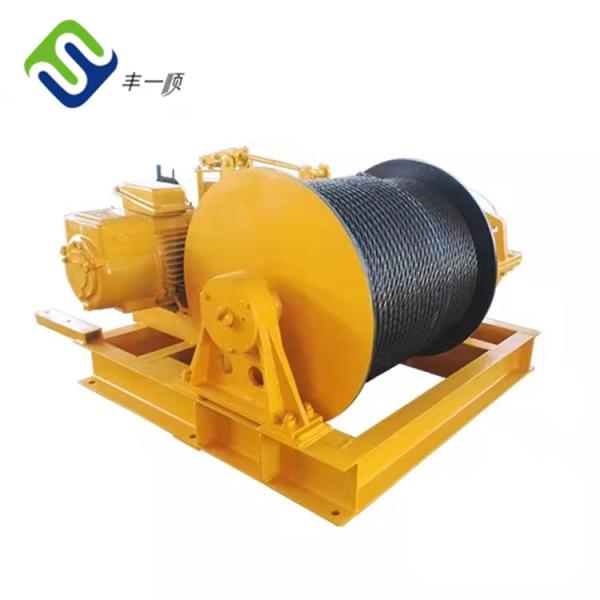

Electric Power Cable Pulling 10 Ton Marine Single Drum Marine Shipyard Winch
Product Description
High speed Electric Winch is widely used on bridge /gantry crane, it is mainly used in marine to help lifting ship or fishing lifting, the large and middle sized concrete, steel structure, mechanical equipment installation and dismantling. The structural
characteristics of steel wire rope is an orderly, lifting safe and reliable. Suitable for all kinds of bridge, port, wharf, road and bridge engineering.
| Item | Data |
| Capacity | 10-65t |
| Rated load(KN) | 100-650 |
| Rated speed(m/min) | 8-10.5 |
| Rope dia(mm) | Ø30-Ø65 |
| Orm dimension(mm) | 2090*1475*956-5900*4680*3200 |
| Motor power(KW) | 22-160 |
| Power source | as your demands |
| Other | According to your specific usage, specific model and design will offer |
Features:
1. Compact structure and reasonable design.
2. Easy to install, operate and maintenance.
3. Low noise and good working condition
4. Wireless remote control is available
5. Three-phase power supply, suitable for a wide range of applications
6. Simple structure, easy to identify the cause of the failure, easy to repair and maintain
