Specifications
Brand Name :
Hongruntong Marine
Model Number :
HMRA-189
Certification :
ISO, BV, ABS, DNV, LR, SGS, CCS, RMRS
Place of Origin :
China
MOQ :
1
Price :
US$290-US$810
Payment Terms :
L/C, T/T, D/A, D/P, Western Union, MoneyGram
Supply Ability :
800 Pcs Per Month
Delivery Time :
5-7 Work Days
Packaging Details :
Wooden Pallets, Wooden Box
Product Name :
Rubber Airbag
Material :
High Tensile NR
Inner Layer :
NR
Standard :
ISO14409:2011
Outer Layer :
NR
Feature :
Safe and Environmentally Friendly
Diameter :
0.5M-3.0M or as Request
Length :
3M-28M or as Request
Working Pressure :
0.05-0.25 MPA
Thickness :
5-13Ply, or as Request
Application :
Vessel Launching and Docking
Description

Marine Rubber Airbag Launching Balloon for Dock Land Launch Boat Vessel

Description

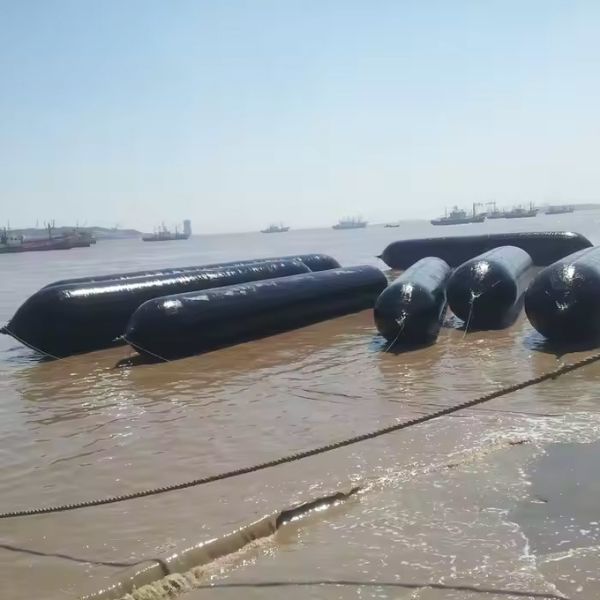

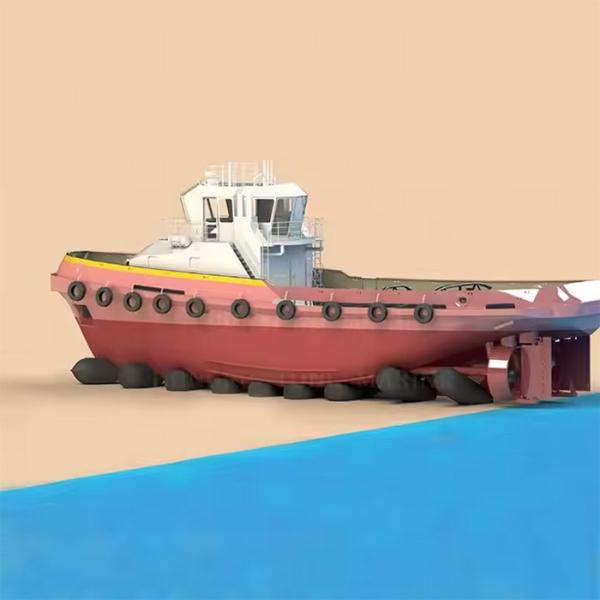

Rubber Airbags have transformed ship launching by providing a flexible and portable alternative to dry docks. These airbags are placed beneath the hull and inflated to lift and roll vessels into the water. Their ability to distribute weight evenly ensures smooth and safe launching, even for large ships.

Constructed with reinforced rubber layers, these airbags can withstand heavy loads and repeated use. Their resistance to saltwater and UV rays ensures durability during prolonged exposure. Rubber Airbags eliminate the need for permanent infrastructure, making them a cost effective solution for shipyards worldwide.

Marine Rubber Airbag Launching Balloon For Dock Land Launch Boat VesselMarine Rubber Airbag Launching Balloon For Dock Land Launch Boat Vessel

Specifications

Item Description
Place of Origin China
Brand Name Hongruntong Marine
Material NBR
Diameter 0.5m-3.0m, or as Request
Length 1.0m-28.0m, or as Request
Working Pressure 0.05-0.25 mpa
Technics High pressure, overall winding, explosion-proof
Use ship launching and docking
Thickness 5-13 ply
Standard Conducted by ISO14409 and GB/T1590-2006 system.
Accessories Q355/SS304/SS316, Pressure Gauge, Tee, Plug, Switch, Inflation Tube

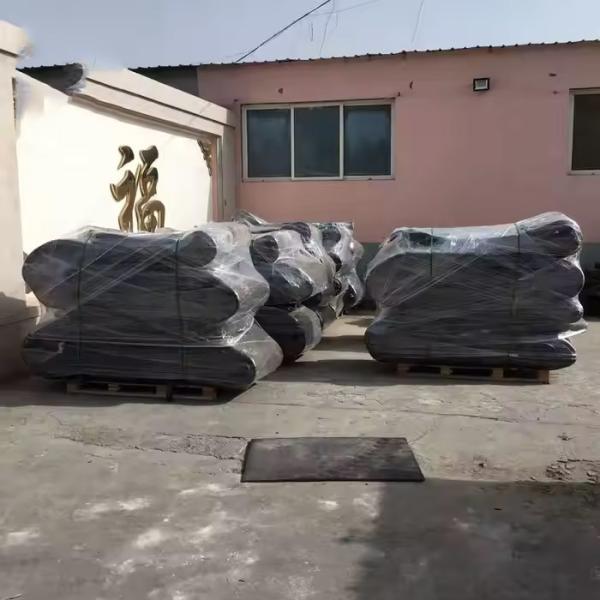

Packaging Inner-Plastic Bag; Outer-Standard Wooden Pallets.
Keywords Rubber Airbag
Certificates ABS, BV, KR, LR, GL, NK, RINA, DNV, RMRS
MOQ 1
OEM Welcome

Diameter

Working

Pressure

Working

Height

Bearing Capacity
KN/m Ton/m
D=1.0m 0.14Mpa 0.6m 87.96 8.98
0.5m 109.96 11.22
0.4m 131.95 13.46
D=1.2m 0.12Mpa 0.7m 94.25 9.62
0.6m 113.10 11.54
0.5m 131.95 13.46
0.4m 150.80 15.39
D=1.5m 0.10Mpa 0.9m 94.25 9.62
0.8m 109.96 11.22
0.7m 125.66 12.82
0.6m 141.37 14.43
0.5m 157.08 16.03
D=1.8m 0.09Mpa 1.1m 98.96 10.10
1.0m 113.10 11.54
0.9m 127.33 12.98
0.8m 141.37 14.43
0.7m 155.51 15.87
0.6m 169.65 17.31
D=2.0m 0.08Mpa 1.2m 100.53 10.26
1.1m 113.10 11.54
1.0m 125.66 12.82
0.9m 138.23 14.11
0.8m 150.80 15.39
0.7m 163.36 16.67
0.6m 175.93 17.95
* Other size can be produced follow client's requirements.

Features

Quick Deployment

Designed for fast inflation and immediate use, reducing project downtime.

Portable

Lightweight and easy to transport, making them ideal for use in remote locations.

Compact Storage

Deflates and folds into a compact size for easy storage when not in use.

Simple Inflation Process

Can be inflated with air compressors, making the setup process easy and quick.

Applications

Deepwater exploration support

Temporary vessel buoyancy in dry docks

Transport of submerged equipment

Underwater salvage of shipwrecks

Advantages

Commitment to Innovation

Continuous product innovation to meet evolving market demands.

On Time Delivery

Reliable shipping and delivery schedules to ensure timely project completion.

Specialized Applications

Capability to design products for niche or specialized marine applications.

Proven Safety Record

Reliable products that help reduce the risks involved in marine operations.

Marine Rubber Airbag Launching Balloon For Dock Land Launch Boat VesselMarine Rubber Airbag Launching Balloon For Dock Land Launch Boat Vessel

FAQ

1. How much weight can a Rubber Airbag support?
The weight capacity varies by size and model, typically ranging from a few tons to over 200 tons.

2. Can Rubber Airbags be used in saltwater environments?
Yes, they are designed to resist saltwater corrosion and perform effectively in marine environments.

3. Are Rubber Airbags reusable?
Yes, Rubber Airbags are reusable, provided they are well-maintained and stored properly.

4. How do you inflate a Rubber Airbag?
They can be inflated using manual pumps, electric air compressors, or other standard inflation equipment.
