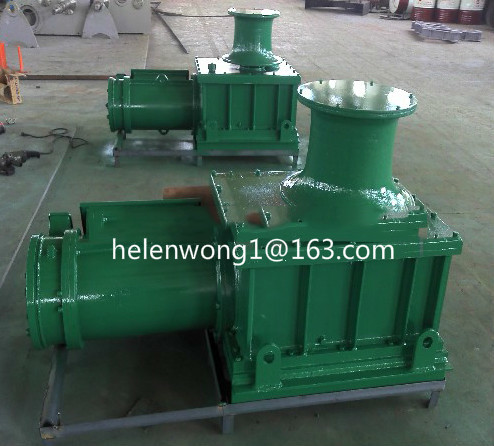

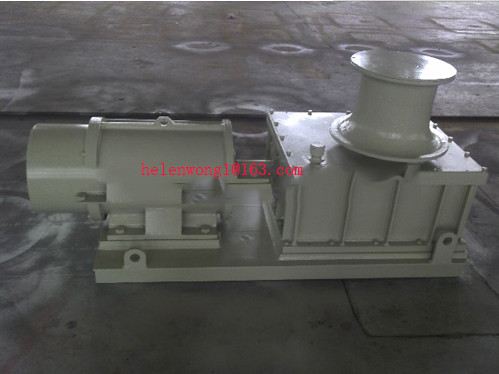

Hot sale marine capstan electric marine capstan
Hot sale marine capstan electric marine capstan
Hot sale marine capstan electric marine capstan
Hot sale marine capstan electric marine capstan
Hot sale marine capstan electric marine capstan
Hot sale marine capstan electric marine capstan
Specifications
Place of Origin :
China
Brand Name :
HST
MOQ :
1 unit
Model Number :
EC
Certification :
CCS.DNV.LR,BV,etc
Price :
FOB$1
Supply Ability :
200sets one month
Delivery Time :
35days
Packaging Details :
Plywood Cases
name :
marine capstan electric marine capstan
working load :
30kn-350kn
driven :
electric or hydraulic
type :
vertical or horizontal
Description
  • Brief introduction Contact us

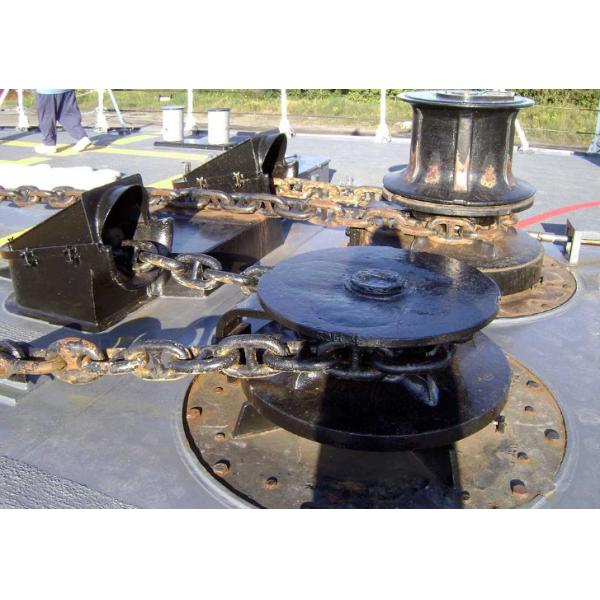

    Brief introduction Capstan windlass (hereinafter referred to as winch) is designed according to standard GB/T4447-1992 which is suitable for 5 m to 30 m length ship. The capstan is always be installed on the ship keel of main deck, and used for anchoring and mooring.
    Specific details

    Capstan technical parameters:
    1.Structure: Vertical or horizontal
    2.The maximum load 0.5-35 tons
    3.The anchor nominal speed 8 to 15 m/min or customized
    4.Driving type: hydraulic or electric
    5.Usage: mooring or anchoring


    Installation of capstan: it must ensure that the Angle of the chain and chain wheel should be 117-120 °
  • Driven type: Electric ,hydraulic
  • Structure type: Vertical ,horizontal
  • Loading capacity:0.5 ~ 35T
  • Working speed:10 ~ 30 m/min
  • Rope diameter:15 ~ 50 mm
  • Usage:Mooring
  • Hot sale marine capstan electric marine capstanHot sale marine capstan electric marine capstan
  • Hot sale marine capstan electric marine capstan

when you want to buy products,pls tell us these questions:

1.Your need quantity?(Set)

2.FOB price or CIF price?(If need CIF price,kindly tell us your nearest sea port)

3.Driven type?(Electric or Hydraulic)

4.Working loading capacity?(KN)

5.Working speed?(m/min)

6.Rope diameter?(m)

7.Structure type?(Vertical or horizontal)

8.Power supply?(Voltage-50Hz/60Hz-Phase)

9.What does the capstan used for ?

10.Any other special requirements?What kind of certificate or no need certificate?
