Double Deck Plastic Marine Navigation Lights CXH Series Port Light
Double Deck Plastic Marine Navigation Lights CXH Series Port Light
Double Deck Plastic Marine Navigation Lights CXH Series Port Light
Double Deck Plastic Marine Navigation Lights CXH Series Port Light
Specifications
Brand Name :
SEAMAN
Model Number :
CXH-101P
Certification :
CCS/CE
Place of Origin :
China
MOQ :
50 pcs
Price :
negotiation
Payment Terms :
T/T, Western Union
Supply Ability :
2000 pcs month
Delivery Time :
10-25 days
Packaging Details :
export carton
Product name :
Navigation signal light
Material :
Plastic, PC
IP :
IP56
Fit for boat length :
>50m
Lamp base :
P28S
Standard :
IEC60598-1-2008
weight :
4.2kgs
Description

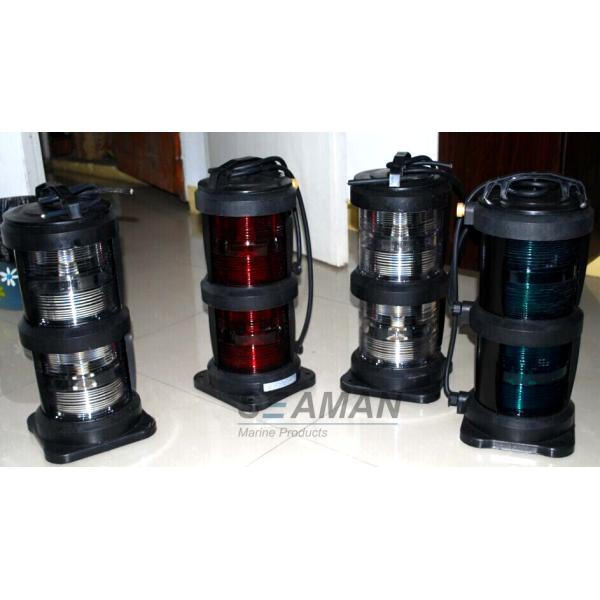

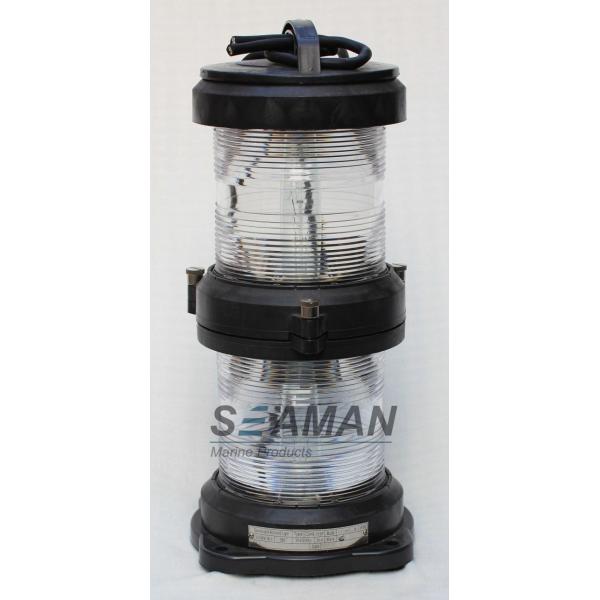

Double Deck Plastic Marine Navigation Signal Light CXH Series Port Light

Production authentication:

1. Approved by the CCS(China Classification Society),approved by ZY of China Fishery Inspection. 2. Passed the authentication of CE.

3. Approverd by Germanischer Lloyd "GL".

4. Approved by MED/EC.

General Information:

1. Marine naviagtion signal light applied to the ships with the length 50m or above 50m as lamp signal liaison when night navigation .

2. This naviagtion signal light shell is made of high-strength engineering plastic PA+GF,the lampshade adopts injection of PC,lens hood adopts good quality stainless steel.

3. This navigation signal lights have the whole seal structure,it is waterproof under the bad environment.

4. Lamp holder and the base adopt plug-in type,can replace the up and down bulb as open the cover.

5. The signal light adopt the signal light's bulb which conform to the ship norm,and the average life is not lower than 700h.

6. The signal lights can work normally under the temperature -30oC to 50oC.

7. Conrorm to THE INTERNATIONAL REGULATIONGS FOR PREVENTINGS COLLISION AT SEA,1972 and GRADE ENTRY NORMS FOR STEEL SHIPS.

Specifications:

Name Type Visibility Level arc Lamp holder Bulb Protection class Color Weight
double-deck starboard light CXH1-101P 3n.m 112.5° p28s

230v/2×65w

115v/2×60w

24v/2×60

 IP56 Green 4.15kg
double-deck port light CXH2-101P 3n.m 112.5° p28s

230v/2×65w

115v/2×60w

24v/2×60W

IP56 Red 4.15kg
double-deck masthead light CXH3-101P 6n.m 225° p28s

230v/2×65w

115v/2×60w

24v/2×60W

IP56 Transparent 4.15kg
double-deck stern light CXH4-101P 3n.m 135° p28s

230v/2×65w

115v/2×60w

24v/2×60W

IP56

Transparent

Grey White Yellow

 4.15kg
double-deck all-round light CXH6-101P 3n.m 360° p28s 230v/2×65w

115v/2×60w

24v/2×60W

 IP56 Red Green Rransparent 4.15kg


Double Deck Plastic Marine Navigation Lights CXH Series Port Light

Double Deck Plastic Marine Navigation Lights CXH Series Port Light

Double Deck Plastic Marine Navigation Lights CXH Series Port Light
