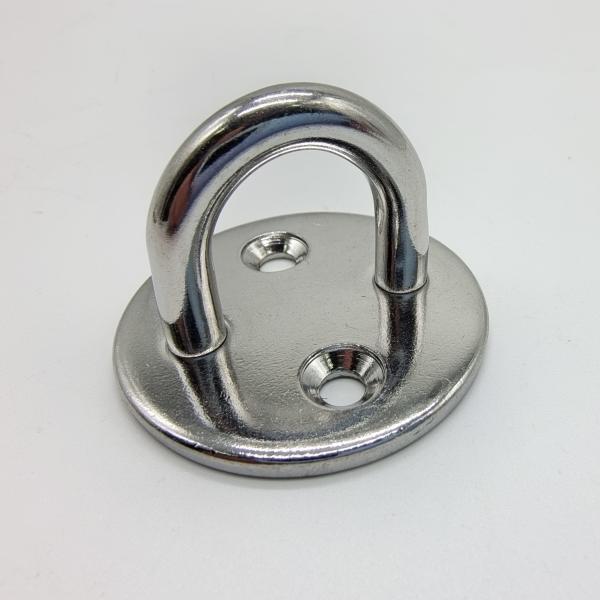

Round Eye Plate
 Boat Rigging Hardware Stainless Steel AISI304 316
Round Eye Plate
 Boat Rigging Hardware Stainless Steel AISI304 316
Specifications
Brand Name :
SEAMAN
Model Number :
50100
Certification :
CE ISO
Place of Origin :
China
MOQ :
300pcs
Price :
Negocation
Payment Terms :
T/T
Supply Ability :
2000pcs Month
Delivery Time :
15 ~25days
Packaging Details :
export carton
Material :
SS304/316
Application :
Boat, Rigging
Size :
5~8mm
Furface :
Polished
Technology :
Forging
Description

Boat Hardware Rigging Round Eye Plate Stainless Steel AISI304/316

Marine hardware rigging products, Stainless steel, Galvanized snap hook, quick link, rigging screw, shackle, thimble, eye plate and so on.

Specification:

1. Material: Stainless Steel 304/ 316

2. Size: 5mm - 8mm

3. Load: 50KG - 800KG

4. Surface: High Polished

5. Safety Factor: 4:1 or 6:1

6. Usage: Lifting, Connecting

7. Packaging: Cartons, Gunny Bags + Pallet

Round Eye Plate
 Boat Rigging Hardware Stainless Steel AISI304 316

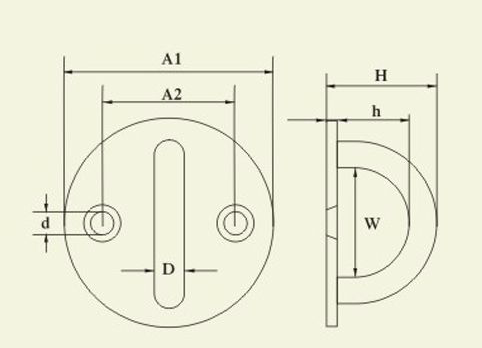

D mm A1 A2 H H1 W D1
5 33 20 20 12 12 4.2
6 40 23 26 17 17 4.2
8 50 30 32 21 20 5.2

The SEAMAN hardware line includes durable turnbuckles, spring hooks, thimbles, heavy-duty dee rings (or D rings), standard connectors, shackles, Pad Eye, eye bolt, wire rope and connectors, and slide-on wire parts. All easy-to-use products are available in all sizes to meet any demand.

All Products are Made from high-strength stainless steel 316, the parts are built to hold under maximum tension.

Round Eye Plate
 Boat Rigging Hardware Stainless Steel AISI304 316
