DIN5299 Stainless Steel 304 316 Marine Snap Hook With Eyelet
DIN5299 Stainless Steel 304 316 Marine Snap Hook With Eyelet
Specifications
Brand Name :
SEAMAN
Model Number :
50063
Certification :
CE ISO
Place of Origin :
CHINA
MOQ :
300pcs
Price :
Negociation
Payment Terms :
T/T
Supply Ability :
1000pcs month
Delivery Time :
15~25 days
Packaging Details :
export carton
Material :
SS304/316, Galvanized steel
Name :
Snap hook with eyelet
application :
Lifejacket/ immersion suit belt hook
size :
4~14mm
Surface :
Polished
technology :
Forging
Description

Marine Hardware Rigging Snap Hook With Eyelet DIN5299 Stainless Steel

Marine hardware rigging products,

Stainless steel, Galvanized snap hook, quick link, rigging screw, shackle, thimble, eye plate and so on.

Specification:

1. Material: Stainless Steel 304/ 316

2. Size: 4mm - 14mm

3. Load: 80LBS - 900LBS

4. Surface: High Polished

5. Safety Factor: 4:1 or 6:1

6. Usage: Lifting, Connecting

7. Packaging: Cartons, Gunny Bags + Pallet

DIN5299 Stainless Steel 304 316 Marine Snap Hook With Eyelet

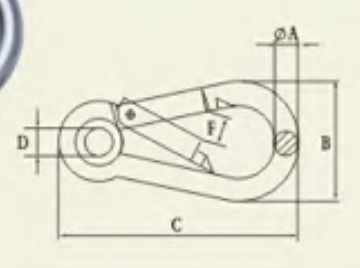

Size mm ∅A B C D F

W.L.L

LBS
4x40 4 20 40 5 7 80
5x50 5 25 50 5 7 100
6x60 6 30 60 5 8 140
7x70 7 35 70 7 8 200
8x80 8 40 80 10 9 250
9x90 9 45 90 10 10 280
10x100 10 50 100 13 11 400
11x120 11 57 120 13 16 500
12x140 12 67 140 15 19 600
13x160 13 74 160 17 25 700
14x180 14 86 180 17 35 900

The SEAMAN hardware line includes durable turnbuckles, spring hooks, thimbles, heavy-duty dee rings (or D rings), standard connectors, shackles, Pad Eye,eye bolt, wire rope and connectors, and slide-on wire parts. All easy-to-use products are available in all sizes to meet any demand.

All Products are Made from high-strength stainless steel 316, the parts are built to hold under maximum tension.

DIN5299 Stainless Steel 304 316 Marine Snap Hook With Eyelet
