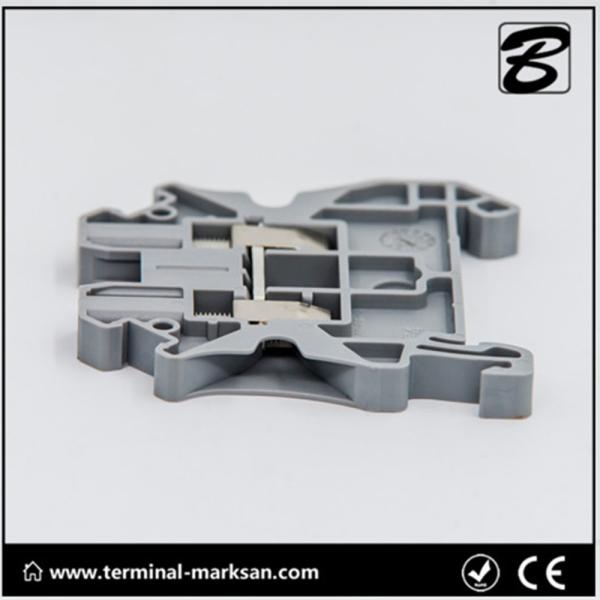

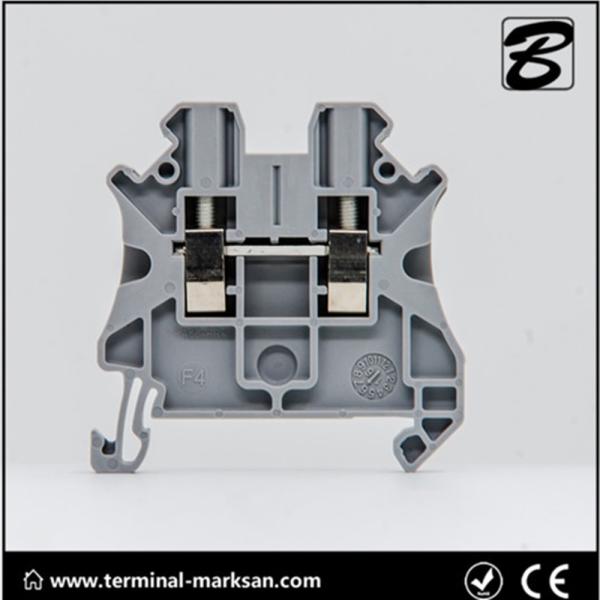

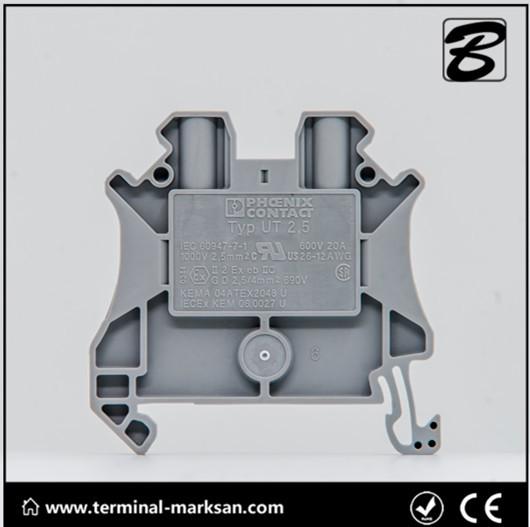

UT 2.5 Chinese screw connection feed through euro gray terminal block for Phoenix contact
UT 2.5 Chinese screw connection feed through euro gray terminal block for Phoenix contact
UT 2.5 Chinese screw connection feed through euro gray terminal block for Phoenix contact
UT 2.5 Chinese screw connection feed through euro gray terminal block for Phoenix contact
UT 2.5 Chinese screw connection feed through euro gray terminal block for Phoenix contact
UT 2.5 Chinese screw connection feed through euro gray terminal block for Phoenix contact
UT 2.5 Chinese screw connection feed through euro gray terminal block for Phoenix contact
UT 2.5 Chinese screw connection feed through euro gray terminal block for Phoenix contact
Specifications
Brand Name :
phoenix contact
Model Number :
UT 2.5
Place of Origin :
Jiangsu, China (Mainland)
MOQ :
50
Price :
US $0.25 - 1 / Piece
Payment Terms :
Western Union, MoneyGram, T/T, D/P, D/A, L/C
Supply Ability :
100000
Packaging Details :
box
Type :
Screw Terminal
Color :
Grey
Usage :
Connecting Cable
Description

Screw connection terminal block UT 2.5 for Phoenix technical data

Dimensions: Thickness Length Height(NS 35/7.5)
[mm] 5.2 47.7 47.5
Max refer. I max[A] Umax[V] Max. Ø[mm2] AWG
32 1000 0.14-4 26-12
Refer. data IEC UL/CUL CSA IEC/EN 60079-7
Rated voltage [V] 1000 600 600 690
Rated I max/Max. Ø [A]/[mm2] 24/2.5 20/- 20/- 22/2.5//
28/4
Cross section[mm2] 2.5 - - 2.5
Conductor cross section AWG 26-12 26-12 26-12 26-12
Conductor cross section Rigid conductor[mm2] Flexible conductor[mm2] Ferrule with/without plastic sleeve
1conductor[mm2] 0.14-4 0.14-4 0.14-2.5 0.14-2.5
2conductor[mm2] 0.14-1.5 0.14-1.5 0.14-1.5 -
2conductor with same cross section twin ferrules 0.5-1.5
General reference
Stripping length[mm] 9
Screw thread M3
Tightening torque 0.5-0.6
Insulating material PA
Flammability rating according to UL 94 V0

Packaging: Packed with export grade Carton( we also can do as your request).

UT 2.5 Chinese screw connection feed through euro gray terminal block for Phoenix contact
