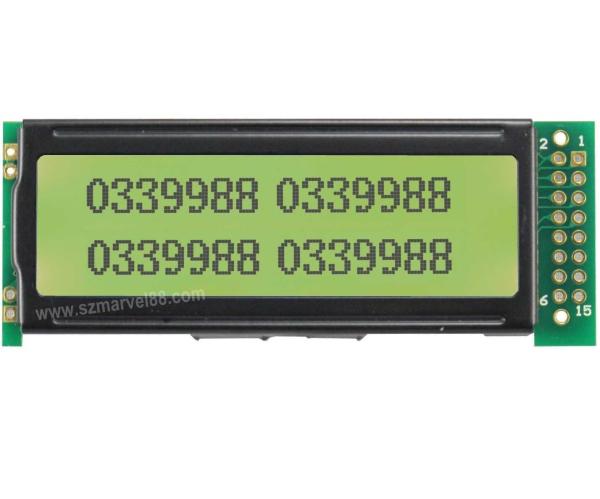

M12232C-Y5,12232 Graphics LCD Module, 122x32Display, STN yellow green, transflective/posit
M12232C-Y5,12232 Graphics LCD Module, 122x32Display, STN yellow green, transflective/posit
Specifications
Description
M12232C-Y5
Display type: 122X32 dots
LCD type: STN(YG), transflective/positive
Drive Method:1/32duty, 1/5bias, VOP 4.7V, VDD 5.0V
Backlight: White(side), VDD 5.0V, Idd 200mA
Drive IC: SBN1661G
Viewing angle: 6 O’clock
Operating temperature: -20 to 70 degree celsius
Storage temperature: -30 to 80 degree celsius
Connection: ZEBRA
Outline dimension: 76.40mm(L)*29.10mm(W)*7.00mm(H)
Viewing area: 61.00mm(L)*18.00mm(W)
Active area: 48.76mm(L)*15.32mm(W)
Dots size: 0.36mm(L)*0.41mm(W)
Dots pitch: 0.40mm(L)*0.45mm(W)
