FF-050 16mm DC Gear Motor 6V 12V Miniature DC Electric Gear Motor For Robots
FF-050 16mm DC Gear Motor 6V 12V Miniature DC Electric Gear Motor For Robots
FF-050 16mm DC Gear Motor 6V 12V Miniature DC Electric Gear Motor For Robots
FF-050 16mm DC Gear Motor 6V 12V Miniature DC Electric Gear Motor For Robots
FF-050 16mm DC Gear Motor 6V 12V Miniature DC Electric Gear Motor For Robots
FF-050 16mm DC Gear Motor 6V 12V Miniature DC Electric Gear Motor For Robots
FF-050 16mm DC Gear Motor 6V 12V Miniature DC Electric Gear Motor For Robots
FF-050 16mm DC Gear Motor 6V 12V Miniature DC Electric Gear Motor For Robots
Specifications
Brand Name :
Masing Motor
Model Number :
MSGM16A030
Certification :
ISO9001,RoHS,CE,16949
Place of Origin :
China
MOQ :
1000
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
100000piece/per month
Delivery Time :
3-5 work weeks
Packaging Details :
Carton box
Product Name :
16mm DC Gear Motor
Gearbox Dimension :
φ16mm gear box
Shaft tyoe :
customized ，round ,flat ,d-cut ect
Direction of Rotation :
CW/CCW available
Protect Feature :
Totally Enclosed
Gears :
Precision Metal Gear Motor
Applicationl :
Home Appliance and engineer tools
Noise :
Low noise
Encoder :
Encoder available
Description

Title:

FF-050 Micro DC Motor 6v 12v Motor With Gear Reducer 16mm Diameter Electric Miniature DC Gear Motor for Robots

Description:

  • Rated Voltage:DC1.5v-24v or Customized

  • Rated Speed:5rpm-3000rpm or Customized

  • Out Power:0.1W-5W Customized

  • Gearbox diameter :Ø16mm Gearbox material :Metal Gear box

  • Gear Material:Spur Precision Metal Gear,Plastic,Powder metallurgy ect

  • Special imported steel for gear material, minimum modulus (0.15 mode), ultra-low noise, high reliability.The motor adopts high anti-oxidation commutator and brush material

  • Reduction ratio: 1:10-1:1000 or Customized

  • Match Motor Type :FF-030, FF-050 permanent magnet DC brushed motors

  • Accessories:Wires, Connectors, Gearbox, Encoder, Brake, Cool Fan, etc (Optional)

  • Factory customization: customized according to demand, high performance, stable and controllable

  • Shaft size :Ø3mm or Customized

  • Shaft type:M3/M4/threaded hole/ Bare /D-Cut /Double D-Cut /Pin Hole /Keyway shaft/Flat/Can be Customized

  • Shaft Material:Carbon Steel or Stainless Steel or Customized

  • High Torque ,Low Noise Longer life time up to 200,000 times unlock

  • Meet EU environmental standards: low energy consumption, low noise

  • Use:Home Appliance and engineer tools,Robot , door lock , toy, cabinet lock ,vending machine, medcial device

  • Quality: With professional equipment, improve the testing process, quality control system

  • Please refer to the rated voltage used by our motor,the voltage exceeding the range of use of our voltagemay cause the machine to burn.

  • We can provide samples for testing.

  • 100% of each product must pass inspection before shipping.

Key attributes:

Speed(RPM)
10~1200rpm
Continuous Current(A)
10mA-300mA
Efficiency
65%-73%
Warranty
3Months-1Year
Place of Origin
Guangdong, China
Brand Name
Masing Motor
Model Number
MSGM16A050
Use
robotic,Door Locks ,Electric Bicycle, Home Appliance, Cosmetic instrument, SMART HOME, Toys
Gearbox Diamter
φ16mm Gearbox
Gear Ratio
1:15-1:1000
Construction
Permanent Magnet
Direction of Rotation
cw or ccw available
Protect Feature
Totally Enclosed
Product Name
12v dc gear motor high torque
Gear box
φ16mm Metal Gearbox
Certificate
16949,CE,Rohs,ISO
Shaft size
Ø3mm or Customized
Encoder
Encoder available
Power
approx 0.2W-3.0W
MOQ
1000Pcs
Gear Material
Spur Precision Metal Gear,Plastic,Powder metallurgy ect
Shaft Type
Flat/M3/ Bare /D-Cut /Double D-Cut /Pin Hole /Keyway shaft
Life time
Long life 500hours-1000hours

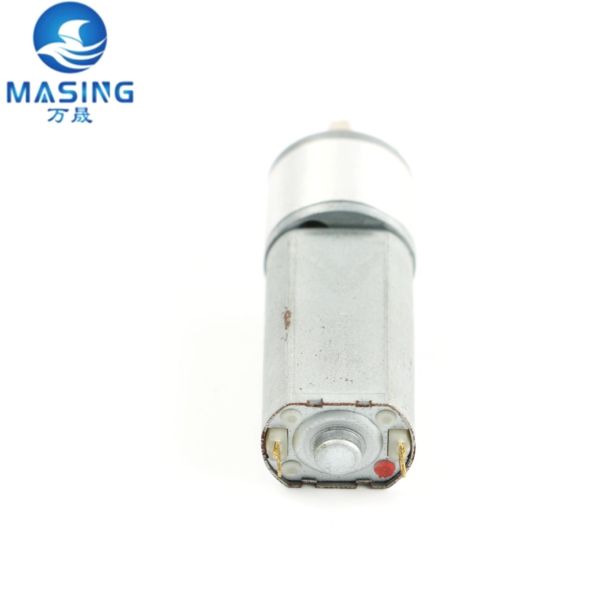

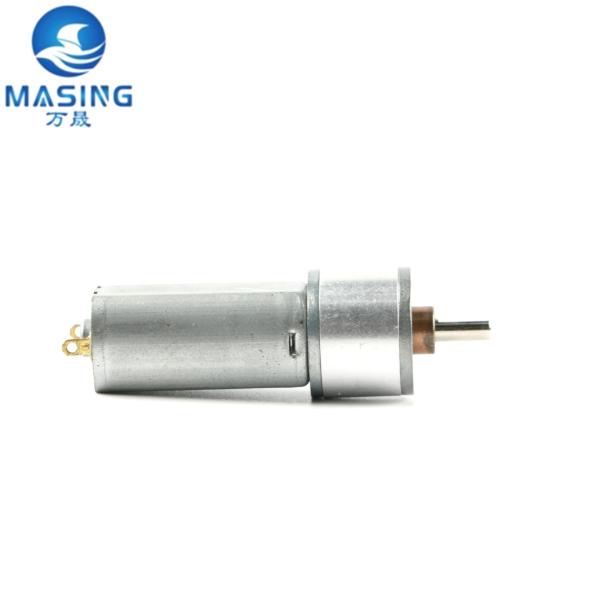

Product Photo:

FF-050 16mm DC Gear Motor 6V 12V Miniature DC Electric Gear Motor For RobotsFF-050 16mm DC Gear Motor 6V 12V Miniature DC Electric Gear Motor For RobotsFF-050 16mm DC Gear Motor 6V 12V Miniature DC Electric Gear Motor For Robots

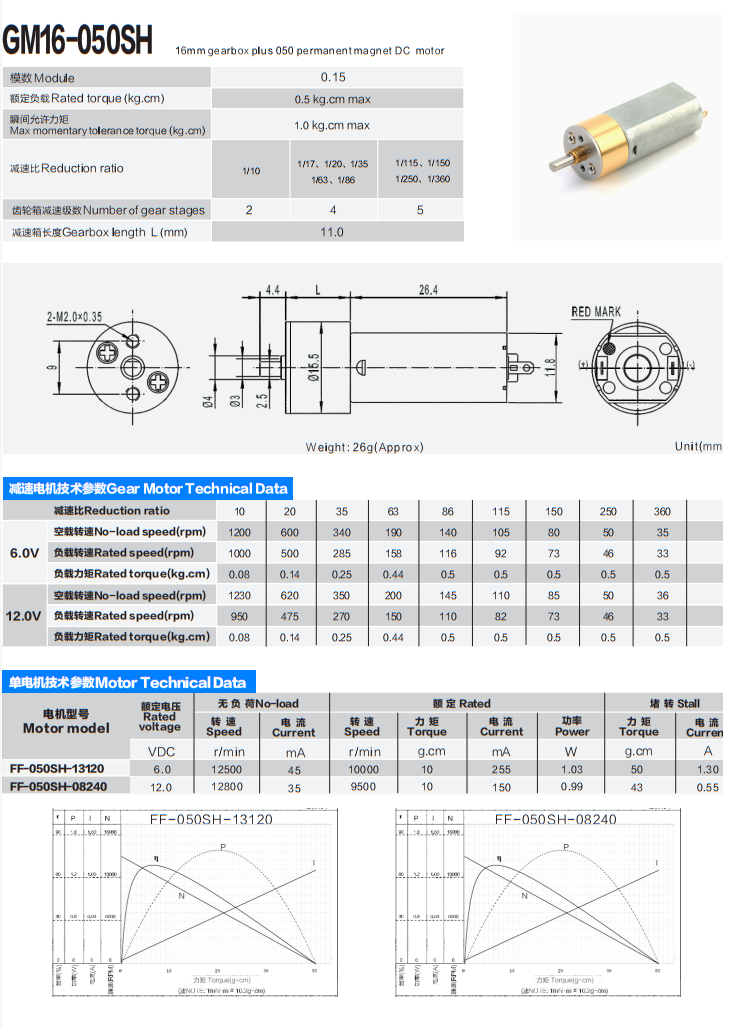

Product Spec:

16MM DC Spur Metal Gearbox Motor Typical Applications:

Electronic Door Lock
Smart Home Appliance
Smart Robot
Electric Toys Robot , door lock , toy, cabinet lock inventory controlling machines and semiconductor automation machines

Voltage,ratedtorque,speed,curent,powerand shaftsize can be customizedasrequrement.

FF-050 16mm DC Gear Motor 6V 12V Miniature DC Electric Gear Motor For Robots

Packaging and delivery:

Packaging Details
Strong Carton 1000pcs/box, or as you wish.
Port
Shenzhen/Guangzhou/Shanghai
Selling Units:
Single item
Single package size:
12X10X24mm
Single gross weight:
0.08kg

Supply Ability:

Supply Ability
100000 Piece/Pieces per Month

Lead time:

Quantity (pieces) 1 - 100 101 - 1000 > 1000
Lead time (days) 10 15 To be negotiated

Samples:

Maximum order quantity: 1piece
Sample price:

$5/piece

Certifications:

FF-050 16mm DC Gear Motor 6V 12V Miniature DC Electric Gear Motor For Robots

Factory Show:

FF-050 16mm DC Gear Motor 6V 12V Miniature DC Electric Gear Motor For Robots

Product Classification:

FF-050 16mm DC Gear Motor 6V 12V Miniature DC Electric Gear Motor For Robots

Applications:

Robot , door lock , toy, cabinet lock ,Home Appliance, robot,vending machine, medcial device

Medical equipment
sphygmomanometer, Massaging mattress, Air pump, Urine Analyzer.
Business Machines
intelligent robot,Copiers and Scanners, 3D Printers, Tattoo pen.
Electric powered equipment
Electric toothbrush,Electric tool,adult erotica products,Electric toy car,Electric curtain.
Smart Home
Intelligent window opener ,vacuum cleaner, Smart coffee machine,hair drier,Fascia gun,fan,air cleaner,Hair removal device,door
lock,Intelligent door lock.
Food and Beverage
Hand Blenders, Blenders, Mixers, Coffee Machines, Food Processors, Juicers, Fryers, Ice Makers, Soy Bean Milk Makers.
Robotics

Servicing robotics, Food delivery robot, Reception robot, Medical serving robot, AGV & AMR, Convenying robot, Inspection robot.

FF-050 16mm DC Gear Motor 6V 12V Miniature DC Electric Gear Motor For Robots

FAQ

Q1.Can you provide OEM or ODM service?

A1:Yes, OEM and ODM are both welcomed

Q2: How about the quality of products in your company?
A2: A;We have high and best quality products and our products get some good feedbacks from clients over the world. Once you got our peoducts with some questions under guarantee, we will provide helps at first time. at the usual time we keep our records about products complaints as low as 1%.

Q3:What's the minimum order quantity?
A3:Our minimum order quantity depends on different motor models, please email us to check. Also, we usually do not accept personal use of motor orders.

Q4: Can I buy samples placing orders?
A4: Yes.Please feel free to contact us.

Q5:Do you accept customize?
A5: Sure,as we have a strong design team,any problems will get our technical answer.

Q6:How can i get the price?
A6: We usually quote within 24 hours after we get your inquiry(Except weekend and holidays). If you are very urgent to get the price, please email us or contact us in other ways so that we can offer you a quote..
