Dc Gear Motor Dc Motor 25mm Diameter Spur Gearbox Motor For Small Electric Cat Toilet Motor
Dc Gear Motor Dc Motor 25mm Diameter Spur Gearbox Motor For Small Electric Cat Toilet Motor
Dc Gear Motor Dc Motor 25mm Diameter Spur Gearbox Motor For Small Electric Cat Toilet Motor
Dc Gear Motor Dc Motor 25mm Diameter Spur Gearbox Motor For Small Electric Cat Toilet Motor
Dc Gear Motor Dc Motor 25mm Diameter Spur Gearbox Motor For Small Electric Cat Toilet Motor
Dc Gear Motor Dc Motor 25mm Diameter Spur Gearbox Motor For Small Electric Cat Toilet Motor
Specifications
Brand Name :
Masing Motor
Model Number :
MSGM25A370
Certification :
RoHS,CE
Place of Origin :
China
MOQ :
1000
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
100000piece/per month
Delivery Time :
3-5 work weeks
Packaging Details :
Carton box
Product Name :
370 geared motor
Dimension :
32mm
Protect Feature :
Totally Enclosed
Direction of Rotation :
CW/CCW
Gearbox Material :
Plastic
Gears :
Plastic gears
Shaft Material :
Carbon Steel or Stainless Steel
Torque :
0.1-1kg.cm
Motor type :
12 volt gear reduction motor
Description

Title:

Dc Gear Motor Dc Motor 25mm Diameter Spur Gearbox Motor For Small Electric Cat Toilet Motor

Description:

  • Voltage:DC1.5v-24v

  • Speed:2rpm-1000rpm Customized

  • Power:0.1W-10W Customized

  • Gearbox diameter :Ø25mm Gearbox material :Metal Gear box

  • Reduction ratio:Customized 1:10-1:1000

  • Match Motor : RF-300,RF-310,RF-370,RS-385.RS-365.RS-390 permanent magnet DC brushed motors

  • Bearing At Output:Ball bearing / Sleeve bearing

  • Accessories:Wires, Connectors, Gearbox, Encoder, Brake, Cool Fan, etc (Optional)

  • Shaft size :Ø3mm,Ø4mm,Ø5mm,

  • Shaft type: Bare /D-Cut /Double D-Cut /Pin Hole /Keyway shaft (Can be Customized)

  • Shaft Material:Carbon Steel or Stainless Steel

  • Meet EU environmental standards: low energy consumption, low noise

  • Use:Home Appliance, robot,vending machine, medcial device

  • Quality: With professional equipment, improve the testing process, quality control system

  • Factory customization: customized according to demand, high performance, stable and controllable

  • Please refer to the rated voltage used by our motor,the voltage exceeding the range of use of our voltagemay cause the machine to burn.

  • Durable Construction: The motor's drip-proof design and permanent magnet construction ensure long-lasting performance and resistance to water and dust, making it ideal for use in harsh environments.

Key attributes:

Speed(RPM)
1.5rpm-1500rpm
Continuous Current(A)
10mA-500mA
Efficiency
70%
Warranty
3Months-1Year
Place of Origin
Guangdong, China
Brand Name
Masing Motor
Model Number
MSGM25A370
Use
Home Appliance, robot,vending machine, medcial device ,Robot Vacuum Cleaner,Home Appliance, door lock,camera,medcial device,Robots, electronic locks, public bicycle locks, relays
Gearbox Material
Rohs 25mm gearbox
Gear Ratio
1:15-1:1000
Construction
Permanent Magnet
Direction of Rotation
cw or ccw
Protect Feature
Totally Enclosed
Product Name
metal gear dc motor 6volt
Gear box
Metal 25mm
Certificate
CE,Rohs,ISO
Gearbox Size
25mm
Voltage
1.2v-24v
Noise
≤55DB
MOQ
1000Pcs
Shaft Material
Carbon Steel or Stainless Steel
Shaft Type
Bare /D-Cut /Double D-Cut /Pin Hole /Keyway shaft
Life time
100hours-1000hours

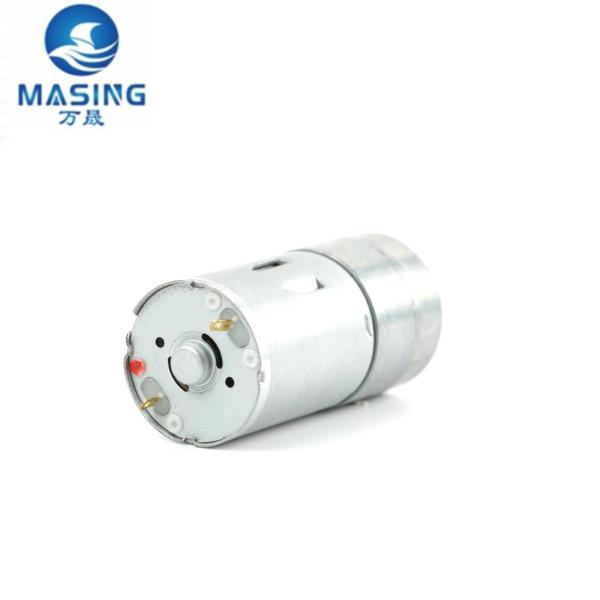

Product Photo:

Dc Gear Motor Dc Motor 25mm Diameter Spur Gearbox Motor For Small Electric Cat Toilet MotorDc Gear Motor Dc Motor 25mm Diameter Spur Gearbox Motor For Small Electric Cat Toilet MotorDc Gear Motor Dc Motor 25mm Diameter Spur Gearbox Motor For Small Electric Cat Toilet Motor

Product Spec:

DC Spur Plastic Gearbox Motor Typical Applications:

Home Appliance, robot,vending machine, medcial device ,Robot Vacuum Cleaner,Home Appliance,

door lock,camera,medcial device,Robots, electronic locks, public bicycle locks, relays

Voltage,ratedtorque,speed,curent,powerand shaftsize can be customizedasrequrement.

Dc Gear Motor Dc Motor 25mm Diameter Spur Gearbox Motor For Small Electric Cat Toilet Motor

Packaging and delivery:

Packaging Details
Strong Carton 1000pcs/box, or as you wish.
Port
Shenzhen/Guangzhou/Shanghai
Selling Units:
Single item
Single package size:
12X10X24mm
Single gross weight:
0.08kg

Supply Ability:

Supply Ability
100000 Piece/Pieces per Month

Lead time:

Quantity (pieces) 1 - 100 101 - 1000 > 1000
Lead time (days) 10 15 To be negotiated

Samples:

Maximum order quantity: 1piece
Sample price:

$5/piece

Certifications:

Dc Gear Motor Dc Motor 25mm Diameter Spur Gearbox Motor For Small Electric Cat Toilet Motor

Factory Show:

Dc Gear Motor Dc Motor 25mm Diameter Spur Gearbox Motor For Small Electric Cat Toilet Motor

Product Classification:

Dc Gear Motor Dc Motor 25mm Diameter Spur Gearbox Motor For Small Electric Cat Toilet Motor

Applications:

Driverless,Artificial intelligence,Intelligent transportation,Health care,Smart city,Automotive supplies,Security monitoring,

5G communication,Smart home,Robots, electronic locks, public bicycle locks, relays, electric glue guns, household appliances,

3D printing pens, electric toothbrushes, office equipment, massage and health care, beauty and fitness equipment,

medical equipment, toys, electric daily necessities, curling irons, automatic car facilities, etc.

Medical equipment
sphygmomanometer, Massaging mattress, Air pump, Urine Analyzer.
Business Machines
intelligent robot,Copiers and Scanners, 3D Printers, Tattoo pen.
Electric powered equipment
Electric toothbrush,Electric tool,adult erotica products,Electric toy car,Electric curtain.
Smart Home
Intelligent window opener ,vacuum cleaner, Smart coffee machine,hair drier,Fascia gun,fan,air cleaner,Hair removal device,door
lock,Intelligent door lock.
Food and Beverage
Hand Blenders, Blenders, Mixers, Coffee Machines, Food Processors, Juicers, Fryers, Ice Makers, Soy Bean Milk Makers.
Robotics

Servicing robotics, Food delivery robot, Reception robot, Medical serving robot, AGV & AMR, Convenying robot, Inspection robot.

Dc Gear Motor Dc Motor 25mm Diameter Spur Gearbox Motor For Small Electric Cat Toilet Motor

FAQ

Q1.What're your main products?

A1:We currently produce Brushed Dc Motors, Brushed Dc gear Motors, Planetary Dc Gear Motors, Brushless Dc Motors, Stepper motors etc. You can check the specifications for above motors on our website and you can email us to recommend needed motors per your specification too.

Q3: How do you make sure motor quality?
A3: We have our own inspection procedures: for incoming materials, we have signed sample and drawing to make sure qualified incoming materials; for the production process, we have tour inspection in the process and final inspection to make sure qualified products before shipping.

Q4:What's the minimum order quantity?
A4:Our minimum order quantity depends on different motor models, please email us to check. Also, we usually do not accept personal use of motor orders.

Q4: Can you send me your price list?
A4: Since we have hundreds of different products, and price varies per different specifications, we are not able to offer a price list. But we can quote within 24 hours once got your inquiries to make sure you can get the price in time.

Q6:Do you have a customized service for your standard motors?
A6: Yes, we can customize per your request for the voltage, speed, torque and shaft size/shape. If you need additional wires/cables soldered on the terminal or need to add connectors, or capacitors or EMC we can make it too.

Q7:What's your lead time?
A7: Generally speaking, our regular standard product will need 25-30days, a bit longer for customized products. But we are very flexible on the lead time, it will depend on the specific orders
