MachineU > China Products > Sports & Entertainment > Cycling > Electric Bicycle Part > Electric Bicycle Motor
3-12V N30 DC Motor 12mm Brushed Electric Motor 5000rpm-30000rpm
3-12V N30 DC Motor 12mm Brushed Electric Motor 5000rpm-30000rpm
3-12V N30 DC Motor 12mm Brushed Electric Motor 5000rpm-30000rpm
3-12V N30 DC Motor 12mm Brushed Electric Motor 5000rpm-30000rpm
3-12V N30 DC Motor 12mm Brushed Electric Motor 5000rpm-30000rpm
3-12V N30 DC Motor 12mm Brushed Electric Motor 5000rpm-30000rpm
Specifications
Brand Name :
Masing Motor
Model Number :
MS-FFN30
Certification :
RohS,CE,ISO,EU,16949
Place of Origin :
China
MOQ :
5000
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
1000000piece/per month
Delivery Time :
3-5 work weeks
Packaging Details :
carton box
Product name :
Brush Type Dc Motor
Shaft diameter :
φ1.0mm
Motor diameter :
φ12mm
Motor size :
φ12mm*L20mm
Application :
Eyebrow Pencil, Electric Toothbrush, Facial Cleanse,Beauty Devices/toys
Rated Speed :
5000rpm-30000rpm
Rated Voltage :
DC 1.2v-12v
Brush tyoe :
Metal brush/Carton Brush
Shaft type :
round or D-cut
Direction of motor :
CW & CCW available
Description

Title:

3-12V N30 DC Motor 12mm Brushed Electric Motorr ROHS CE Certified Customized Small DC Motor

Description:

  • Voltage range:DC1.5v-12V

  • Rated Speed:5000-30000RPM or Other Customized

  • Rotating speed is constant and can be made as you required.

  • Motor Size: φ12mm*20mm,diameter 12mm ,length 20mm, micro dc motor

  • Suitable to small diameter, low noise and big toque application

  • Motor default direction:CW&CCW available

  • Shaft diameter :φ1mm or Customized

  • Shaft types :round ,D-cut ,Flat ,with a hold ,with knurl or Customized

  • Shaft material:Stainless steel shaft and carbon steel shaft

  • Accessories:Wires ,encoder ,gear,Gearbox ,worm gear ,capacitance ect

  • Brush type :Metal brush/Carton brush

  • Can be match with wheel, One shaft one wheel or one motor, one wheel

  • Widely used in robot,locks.,toy, Eyebrow Pencil, Electric Toothbrush, Facial Cleanse,Beauty Devices/toys

  • Working temperature:-40~+60°c

  • We can provide samples for your test.

  • Every product must pass 100% quality inspection before shipping

Key attributes:

Speed(RPM)
5000-35000RPM or Customized
Continuous Current(A)
20-100mA
Efficiency
Customized
Warranty
Others
Place of Origin
Guangdong, China
Brand Name
Masing Motor
Model Number
MSFF-N30
Use
Beauty instrument,Car, Lock, FAN, Home Appliance, Cosmetic Instrument, SMART HOME, Robot,Toys
Type
Micro Brush Motor
Direction of motor
CW &CCW available
Construction
Permanent Magnet
Brush type
Metal Brush/Carbon brush
Protect Feature
Totally Enclosed
Product Name
N30 dc brush motor
Application
toys ,Locks,robots ,Home Appliance
Shaft diameter
φ1mm
Motor Diameter
φ12mm *L20 mm
Weight
5g
Noise
≤55DB
MOQ
5000Pcs
Shaft materials
Stainless steel shaft and carbon steel shaft
Motor Life time
500H-1000H
Motor type
Brushed N30 dc mini motor

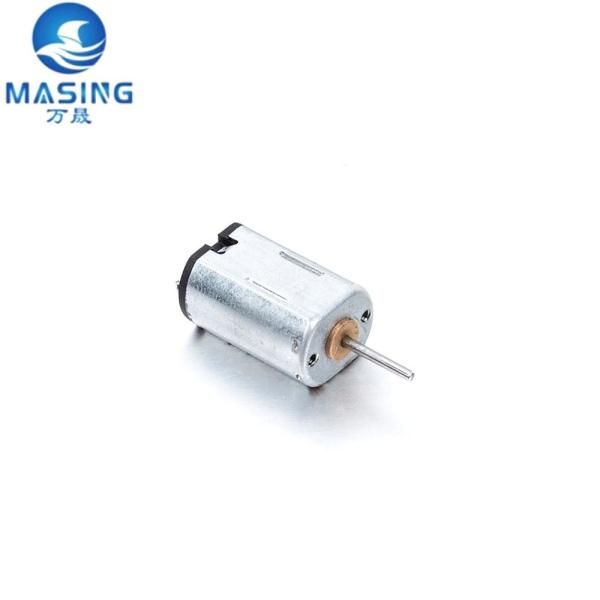

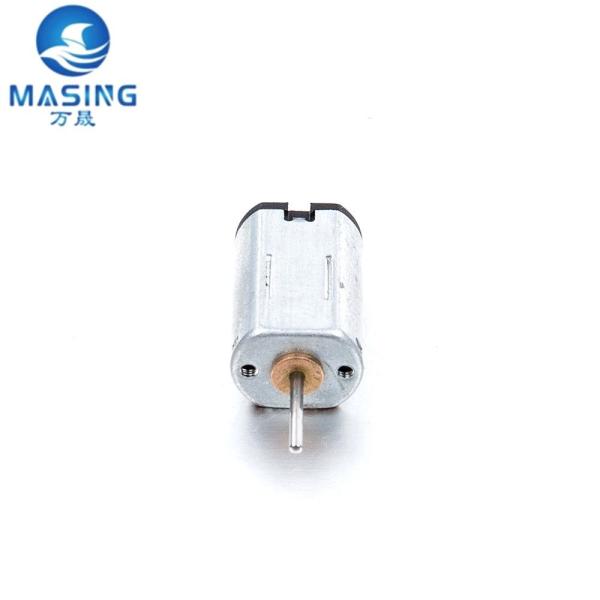

Product Photo:

3-12V N30 DC Motor 12mm Brushed Electric Motor 5000rpm-30000rpm3-12V N30 DC Motor 12mm Brushed Electric Motor 5000rpm-30000rpm

Product Spec:

FF-N30 Micro DC Motor Typical Applications
Toys ,Robots ,Household Appliances,CD/DVD player,Camera,Bloodpresure meter,Camera,Ricecooker.Har Cae:Electricshaver.
Office Equipment:Printer,Projector,Counting Machine.

Remark:Voltage,rated torque,speed,curent.power and shaft sze can becustomized asrequirement.

3-12V N30 DC Motor 12mm Brushed Electric Motor 5000rpm-30000rpm

Motor Technical Data
Model Voltage No-load AT Maximum Efficiency Output Power Stall
Speed Current Speed Turque Current Turque Current
VDC r/min mA r/min g.cm mA W g.cm A
FF-N30-08Z195 3.0 5100 30 3900 2.0 90 0.27 7.7 0.28
FF-N30-10150 5.0 13500 45 12000 2.0 125 0.625 16 0.48
FF-N30-08250 12.0 16200 50 15200 2.0 90 1.08 29 0.63

Packaging and delivery:

Packaging Details
Strong Carton 1000pcs/box, or as you wish.
Port
Shenzhen/Guangzhou/Shanghai
Selling Units:
Single item
Single package size:
37X27X24cm
Single gross weight:
5.0kg

Supply Ability:

Supply Ability
100000 Piece/Pieces per Month

Lead time:

Quantity (pieces) 1 - 100 101 - 1000 > 1000
Lead time (days) 10 15 To be negotiated

Samples:

Maximum order quantity: 1piece
Sample price:

$1.5/piece

Certifications:

3-12V N30 DC Motor 12mm Brushed Electric Motor 5000rpm-30000rpm

Factory Show:

3-12V N30 DC Motor 12mm Brushed Electric Motor 5000rpm-30000rpm

Product Classification:

3-12V N30 DC Motor 12mm Brushed Electric Motor 5000rpm-30000rpm

Applications:

Medical equipment
sphygmomanometer, Massaging mattress, Air pump, Urine Analyzer.
Business Machines
intelligent robot,Copiers and Scanners, 3D Printers, Tattoo pen.
Electric powered equipment
Electric toothbrush,Electric tool,adult erotica products,Electric toy car,Electric curtain.
Smart Home
Intelligent window opener ,vacuum cleaner, Smart coffee machine,hair drier,Fascia gun,fan,air cleaner,Hair removal device,door
lock,Intelligent door lock.
Food and Beverage
Hand Blenders, Blenders, Mixers, Coffee Machines, Food Processors, Juicers, Fryers, Ice Makers, Soy Bean Milk Makers.
Robotics
Servicing robotics, Food delivery robot, Reception robot, Medical serving robot, AGV & AMR, Convenying robot, Inspection robot.

3-12V N30 DC Motor 12mm Brushed Electric Motor 5000rpm-30000rpm

FAQ
Q1: How can I know the product is suitable for me?
A1: Firstly , you need to provide us the more details information including voltage, no-load speed, load speed, load torque and shaft length. Then, we will recommend the item to you according to your requirement of specification. After you confirm, we will prepare the samples to you. also we will offer some good advances according to your product use.

Q2: Do you have the item in stock?
A2:We don't have the item in stock, All products are made as customer's requirement.

Q3: Why should I choose your products?
A3: Our products are high quality and low price.

Q4:How about Sample order?
A4: Sample is available for you. please contact us for details. Contact us

Q5: How long is the deliver?
A5: Devliver time depends on the quantity you order. usually it takes 15-25 working days.
