14.4V Permanent Magnet DC Motor High RPM Speed RS-550 RS-555 DC Motor For Vacuum Cleaner
14.4V Permanent Magnet DC Motor High RPM Speed RS-550 RS-555 DC Motor For Vacuum Cleaner
14.4V Permanent Magnet DC Motor High RPM Speed RS-550 RS-555 DC Motor For Vacuum Cleaner
14.4V Permanent Magnet DC Motor High RPM Speed RS-550 RS-555 DC Motor For Vacuum Cleaner
14.4V Permanent Magnet DC Motor High RPM Speed RS-550 RS-555 DC Motor For Vacuum Cleaner
14.4V Permanent Magnet DC Motor High RPM Speed RS-550 RS-555 DC Motor For Vacuum Cleaner
14.4V Permanent Magnet DC Motor High RPM Speed RS-550 RS-555 DC Motor For Vacuum Cleaner
14.4V Permanent Magnet DC Motor High RPM Speed RS-550 RS-555 DC Motor For Vacuum Cleaner
Specifications
Brand Name :
Masing Motor
Model Number :
MSRS-540/545
Certification :
RohS,CE,ISO
Place of Origin :
China
MOQ :
5000
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
1000000piece/per month
Delivery Time :
3-5 work weeks
Packaging Details :
Carton box
Product Name :
Permanent Magnet DC Motor RS-555 RS-550
Shaft Diameter :
5mm Customized
Voltage :
6v-36v
Efficiency :
IE1
Mtor Type :
14.4v Brushed DC Motor High Power
Brush Type :
Carbon brush or Metal brush
Structure :
Totally Enclosed
Magnet :
Strong or Normal one for option
Rated Power :
1W-200W
Key words :
RS-555 RS-550 DC Motor High Torque
Description

Title:

Permanent Magnet DC Motor 14.4v High RPM Speed RS-550 RS-555 DC Motor For Vacuum Cleaner

Description:

  • Voltage range:6V-36V

  • Speed:1800-30000RPM

  • Motor default direction:CW&CCW

  • Size: 36*57mm,Diamter 36mm , Length 57mm Carbon Brush Permanent Magnet motor

  • Suitable to small diameter 36mm, low noise and big torque and high power application

  • Can be match with wheel, One shaft one wheel or one motor, one wheel

  • Working temperature:-40~+60°c

  • Bearing :Oil bearing or ball bearing

  • We can provide samples for your test.

  • Rotating speed is constant and can be made as you required.

  • Widely used in rc car ,rc boat, electric car ,Vacuum Cleaner,Robot,Power Tools,Automobile Actuator Vacuum Pump , Water Pump ,Small Electric Drill ,Smart Home,Fishing pole,Hairdryer

Key Attributes:

Speed(RPM)
1800-30000 rpm
Continuous Current(A)
Customized
Efficiency
65%-85%
Warranty
Others
Place of Origin
Guangdong, China
Brand Name
Masing Motor
Model Number
RS-550 RS-555
Use
rc car ,rc boat, electric car ,vacuum cleaner,fan,Mass
Type
High Power Brush Motor
Torque
Customized
Construction
Permanent Magnet
Commutation
Brush
Protect Feature
Totally Enclosed
Product Name
18V Permanent Magnet DC Motor RS-550 RS-555
Application
Hairdryer,Fan,Home Appliance
Keywords
18v DC Motor
Motor Size
36*57mm
Certification
CE,ROHS,ISO
Noise
≤55DB
MOQ
5000Pcs
Torque
Customized 50m.Nm-150m.Nm
Color
Customer's Request
Motor type
12V PMDC Micro Motor

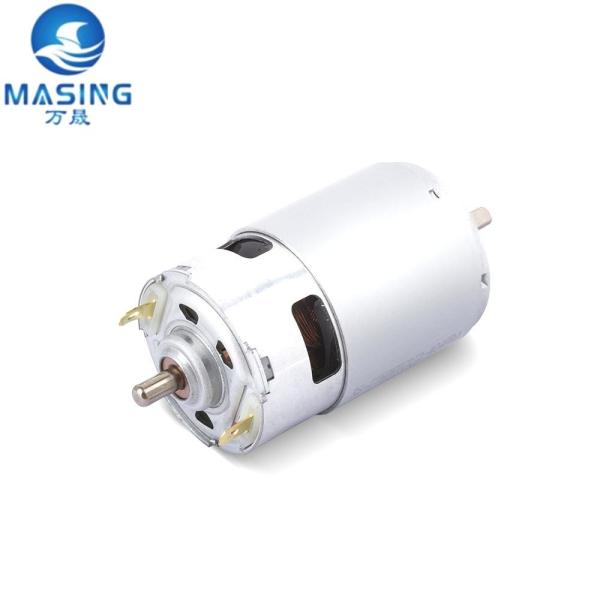

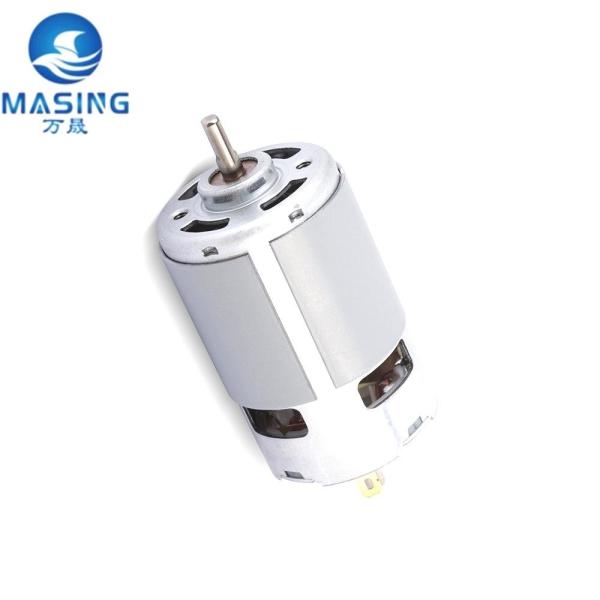

Product Photo:

14.4V Permanent Magnet DC Motor High RPM Speed RS-550 RS-555 DC Motor For Vacuum Cleaner14.4V Permanent Magnet DC Motor High RPM Speed RS-550 RS-555 DC Motor For Vacuum Cleaner

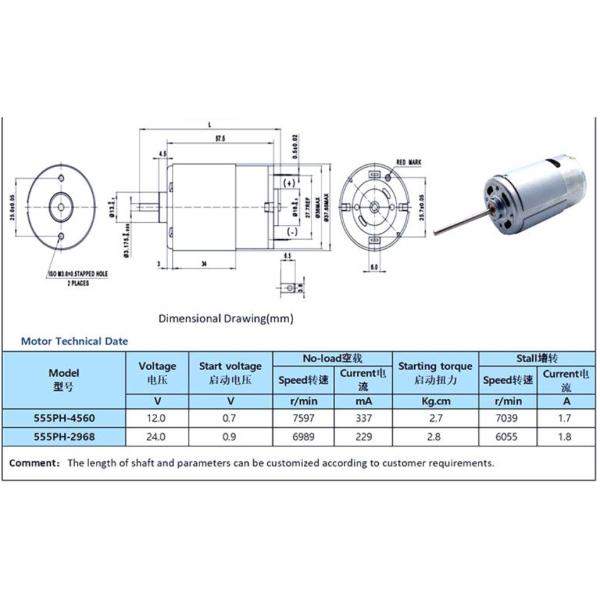

Product Spec:

RS-550 RS-550 Permanent Magnet DC Motor Typical Applications

Househdld Appliances Hair dyer,Eectichar clipper,massoge instument.Dust collector,Car air pump,

automatic water heating teapot, electric water pump,Vacuum cleaners, hair dryers, sweepers, electric toys,

juice cups, air pumps, lawnmowers

Office Equipment:Printer,Projector,Counting Machine,Shredder.

Industid Equpment:Water elecric,dandgas valve,Arswitch,Waterump.Air pump,Eectic drll.Massger,Cordless Power Tool,

Air Compressor Busines Equpment:Vendingmochines,Parkinglocs,ATM machhes

Voltage,rated torque,speed,curent,power and shaft size can be customizedasrequrement.

14.4V Permanent Magnet DC Motor High RPM Speed RS-550 RS-555 DC Motor For Vacuum Cleaner

Packaging and delivery:

Packaging Details
Strong Carton 100pcs/box, or as you wish.
Port
Shenzhen/Guangzhou/Shanghai
Selling Units:
Single item
Single package size:
37X27X24cm
Single gross weight:
0.030kg

Supply Ability:

Supply Ability
100000 Piece/Pieces per Month

Lead time:

Quantity (pieces) 1 - 100 101 - 1000 > 5000
Lead time (days) 10 15 To be negotiated

Samples:

Maximum order quantity: 1piece
Sample price:

$3/piece

Certifications:

14.4V Permanent Magnet DC Motor High RPM Speed RS-550 RS-555 DC Motor For Vacuum Cleaner

Factory Show:

14.4V Permanent Magnet DC Motor High RPM Speed RS-550 RS-555 DC Motor For Vacuum Cleaner

Product Classification:

14.4V Permanent Magnet DC Motor High RPM Speed RS-550 RS-555 DC Motor For Vacuum Cleaner

Applications:

Driverless,Artificial intelligence,Intelligent transportation,Health care,Smart city,Automotive supplies,Security monitoring,

5G communication,Smart home,Massger,Cordless Power Tool,Air Compressor

14.4V Permanent Magnet DC Motor High RPM Speed RS-550 RS-555 DC Motor For Vacuum Cleaner

FAQ
Q1: How can i get the price?
A1: We usually quote within 24 hours after we get your inquiry(Except weekend and holidays). If you are very urgent to get the price, please email us or contact us in other ways so that we can offer you a quote.

Q2: How about Sample order?
A2: Sample is available for you. Please contact us for details. Contact us

Q3: What kind of data do i neet to provide if i want to order?
A3: Please kindly tell us your voltage,speed,torque and overall dimension


Q4: What is your guarantee forthe products?
A4: We can offer the technical support and spare parts for the repair if any quality problems, and will follow the problems until you are satisfied.

Q5: How do you make our business long-term and good relationship?
A5:a. We keep good quality and competitive price to ensure our customers benefit ;

b. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.

Q6: Can you provide OEM or ODM service?
A: Yes, OEM and ODM are both welcomed.

Q7.How can I know the product is suitable for me?

A7:You provide us the more details information about the product.We will recommend theitem to you according to your detail parameters.After you confirm,we will prepare thesamples to you.Also we will offer some good advances according to your product use.
