28mm Permanent Magnet DC Brushless Motor 24V 2838 BLDC Permanent Magnet Motor
28mm Permanent Magnet DC Brushless Motor 24V 2838 BLDC Permanent Magnet Motor
28mm Permanent Magnet DC Brushless Motor 24V 2838 BLDC Permanent Magnet Motor
28mm Permanent Magnet DC Brushless Motor 24V 2838 BLDC Permanent Magnet Motor
28mm Permanent Magnet DC Brushless Motor 24V 2838 BLDC Permanent Magnet Motor
28mm Permanent Magnet DC Brushless Motor 24V 2838 BLDC Permanent Magnet Motor
28mm Permanent Magnet DC Brushless Motor 24V 2838 BLDC Permanent Magnet Motor
28mm Permanent Magnet DC Brushless Motor 24V 2838 BLDC Permanent Magnet Motor
Specifications
Brand Name :
Masing Motor
Model Number :
MSBL2838
Certification :
16949,RohS,CE,ISO
Place of Origin :
China
MOQ :
1000
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
1000000piece/per month
Delivery Time :
3-5 work weeks
Packaging Details :
Carton box
Product Name :
Permanent Magnet DC Brushless Motor
Shaft :
Flat ,D-cut or Round ect
Motor size :
φ28mm*L38mm
Bearing type :
Oil bearing or ball bearing
Motor Type :
Brushless Motor
Application :
Smart home, robots, office supplies, power tools, medical equipment, precision instruments, automotive electronics,etc.
Structure :
Built-in drive
Direction of motor :
CW&CCW
Voltage :
12volt or 24volt
Function :
Driving effect
Description

Title:

Factory Customizable 28mm Diameter 24V DC Brushless Motor 2838 Bldc Permanent Magnet for Medical Devices Robotic Applications

Description:

  • Voltage :12VOLT ,24VOLT OR others

  • Rated speed :1000rpm -10000rpm

  • The motor speed is proportional to the motor voltage

  • Torque :10g.cm-200g.cm

  • The torque of the motor is nronortional to the speed of the motor

  • Motor type :Brushless dc motor

  • Motor default direction:CW&CCW

  • Motor size :φ28mm*L38mm ,diamter 28mm Length 38mm brushless motor

  • Motor shaft :φ2.3mm or others

  • Motor type :Round ,Flat ,D-cut,Threaded shaft ect

  • Bearing type:Oil bearing or ball bearing

  • Motor voltage speed torque eccentric wheel size and material can be customized according to customerrequirements.

  • Customizable: The motor is customizable to meet specific user needs, allowing for adjustments to be made to suit various applications, as requested by the user.

  • Working temperature:-40~+60°c

  • We can provide samples for your test.

  • Structure selection:Built-in driver or external driver

  • Please refer to the rated voltage used by our motor,the voltage exceeding the range of use of our voltagemay cause the machine to burn.

  • Applications :Smart home, robots, office supplies, power tools, medical equipment,precision instruments, automotive electronics,etc.

    Toys,Massager ,Robot,Robot Vacuum Cleaner,Car flip screen,Intelligent Trash Can ,Power Tools, Home Application, Personal Care,Car, Electric Bicycle, FAN,, Cosmetic instrument, SMART HOME, Medical Imaging Equipment,

Key Attributes:

Speed(RPM)
1000rpm-10000rpm
Continuous Current(A)
10mA-500mA
Efficiency
IE3
Warranty
3Months-1year
Place of Origin
Guangdong, China
Brand Name
Masing Motor
Model Number
MSBL-2838
Use
Smart home, robots, office supplies, power tools, medical equipment,precision instruments, automotive electronics,etc.
Shaft diameter
φ2.3mm
Torque
Customized
Construction
Permanent Magnet
Commutation
BLDC Motor
Protect Feature
Totally Enclosed
Bearing type
oil bearing or ball bearing
Feature
High Efficiency
Keywords
Brushless Motor 2838
Motor Diameter
φ28mm
Weight
90g
Noise
≤55DB
MOQ
1000Pcs
Voltage
12Volt or 24volt
Color
Customer's Request
Motor type
Micro Brushless Motor

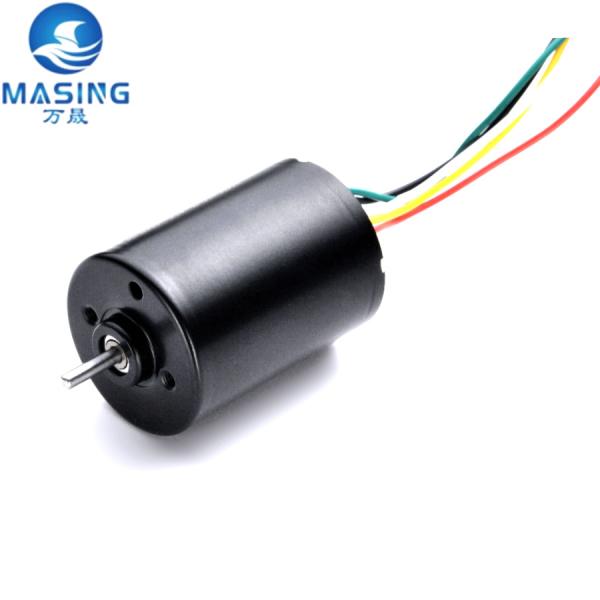

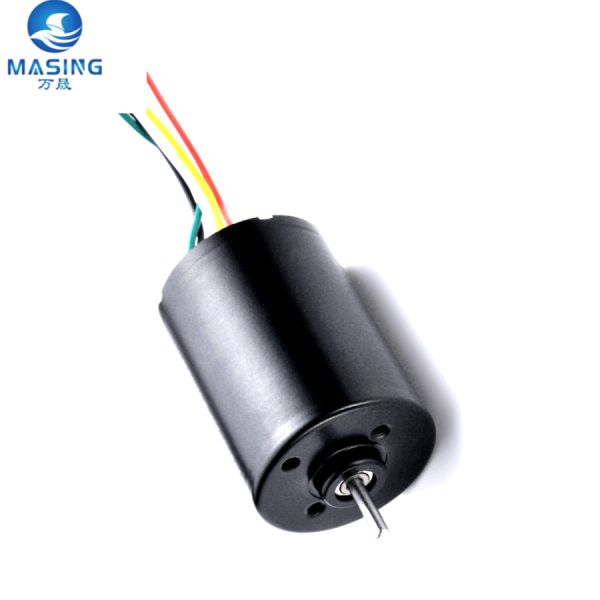

Product Photo:

28mm Permanent Magnet DC Brushless Motor 24V 2838 BLDC Permanent Magnet Motor28mm Permanent Magnet DC Brushless Motor 24V 2838 BLDC Permanent Magnet Motor

Product Spec:

BLDC 2838 Brushless DC Motor Typical Applications

● Smart home, robots, office supplies, power tools, medical equipment,precision instruments, automotive electronics,Toys,Massager ,Robot Vacuum Cleaner,Car flip screen,Intelligent Trash Can ,Power Tools, Home Application, Personal Care,Car, Electric Bicycle, FAN,, Cosmetic instrument, SMART HOME, Medical Imaging Equipment,

Voltage,rated torque,speed,curent,power and shaft size can be customizedasrequrement.

28mm Permanent Magnet DC Brushless Motor 24V 2838 BLDC Permanent Magnet Motor

28mm Permanent Magnet DC Brushless Motor 24V 2838 BLDC Permanent Magnet Motor

Motor Data:

Motor Model

 Voltage No Load At Maximum Efficiency Stall
Operating Range Rated Current Speed Current Speed

Torque

 Power

Efficiency

 Current

Torque
A rpm A rpm g-cm W % A g-cm
BL2838*** 9~14V 12V 0.04 3550 0.18 2900 50 1.5 71.5 0.8 275
BL2838*** 19~26V 24V 0.10 6400 0.31 4850 104 5.1 67.5 1.0 434

Packaging and delivery:

Packaging Details
Strong Carton 100pcs/box, or as you wish.
Port
Shenzhen/Guangzhou/Shanghai
Selling Units:
Single item
Single package size:
37X27X24cm
Single gross weight:
70g

Supply Ability:

Supply Ability
100000 Piece/Pieces per Month

Lead time:

Quantity (pieces) 1 - 100 101 - 1000 > 5000
Lead time (days) 10 15 To be negotiated

Samples:

Maximum order quantity: 1piece
Sample price:

$15/piece

Certifications:

28mm Permanent Magnet DC Brushless Motor 24V 2838 BLDC Permanent Magnet Motor

Factory Show:

28mm Permanent Magnet DC Brushless Motor 24V 2838 BLDC Permanent Magnet Motor

Product Classification:

28mm Permanent Magnet DC Brushless Motor 24V 2838 BLDC Permanent Magnet Motor

Applications:

Toys,Massager ,Robot,Robot Vacuum Cleaner,Car flip screen,Intelligent Trash Can ,Power Tools,Driverless,

Artificial intelligence,Intelligent transportation,Health care,Smart city,Automotive supplies,Security monitoring,

5G communication,Smart home

28mm Permanent Magnet DC Brushless Motor 24V 2838 BLDC Permanent Magnet Motor

FAQ

Q1:How can i get the price?
A1: We usually quote within 24 hours after we get your inquiry(Except weekend and holidays). If you are very urgent to get the price, please email us or contact us in other ways so that we can offer you a quote.

Q2: Can I buy samples placing orders ?
A2: Yes.Please feel free to contact us.
Q3: Do you have discount ?
A3:We are factory and bave the most competitive price ,if your quantity is large ,we cannegotiate the price
Q4: What is your lead time?
A4: Devliver time depends on the quantity you order. sually it takes 15-25 working days.
Q5: Do you accept customize?
A5:YSure,as we have a strong design team,any problems will get our technical answer..
Q6: What kind of data do i neet to provide if i want to order?
A6: Please kindly tell us your voltage,speed,torque and overall dimension.
