BL4826 DC12V 3000RPM 15W High Power Brushless Permanent Magnet DC Motor For Massage Gun
BL4826 DC12V 3000RPM 15W High Power Brushless Permanent Magnet DC Motor For Massage Gun
BL4826 DC12V 3000RPM 15W High Power Brushless Permanent Magnet DC Motor For Massage Gun
BL4826 DC12V 3000RPM 15W High Power Brushless Permanent Magnet DC Motor For Massage Gun
BL4826 DC12V 3000RPM 15W High Power Brushless Permanent Magnet DC Motor For Massage Gun
BL4826 DC12V 3000RPM 15W High Power Brushless Permanent Magnet DC Motor For Massage Gun
BL4826 DC12V 3000RPM 15W High Power Brushless Permanent Magnet DC Motor For Massage Gun
BL4826 DC12V 3000RPM 15W High Power Brushless Permanent Magnet DC Motor For Massage Gun
Specifications
Brand Name :
Masing Motor
Model Number :
MSBL4826
Certification :
ISO,CE,ROHS ,16949
Place of Origin :
China
MOQ :
1000
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
100000piece/per month
Delivery Time :
3-5 work weeks
Packaging Details :
Carton Box
Product name :
brushless permanent magnet dc motor
Shaft type :
M6,Round,Flat ,D-Cut or others
Efficiency :
90%-60%
Rated Speed :
1000rpm-10000rpm
Motor Diameter :
φ48mm
Shaft diameter :
φ6mm
Rated voltage :
9v-30v dc
Motor type :
Brushless Motor &BLDC Motor
Rated Power :
1w-50w
Direction of motor :
CW & CCW available
Description

Title:

BL4826 DC12V 3000RPM 15W High Power Brushless Permanent Magnet Dc Motor for Massage Gun

Description:

  • Motor Model: BL4826 Product Name:Brushless permanent magnet dc motor 12V

  • Rated Speed:1000rpm -10000RPM or customized

  • Rotating speed is constant and can be made as you required.

  • Motor diameter :φ48mm

  • Certification:CE,RoHS,IOS9001,REACH,16949

  • Suitable to small diameter, low noise and big torque application

  • Shaft diameter :φ6mm, D-cut

  • Shaft type :M6,Round ,Flat ,D-cut ,M4 ,with a hole or customized

  • Motor default direction:CW&CCW available

  • Working temperature:-40~+60°c

  • Power 0.2W-50W Maximum torque: 2KG. cm

  • Motor type:Brushless motor & BLDC motor

  • Customized: OEM,ODM Accepted

  • Applications:Robots,Electric curtain,Electric Sanitary Ware, Intelligent Electric, Aviation Model ,Field Machinery, Consumer Electronics, Automotive Electronics, Intelligent Machine Home Automation, Production Automation, Medical Equipment, Security Devices

  • High Efficiency and Performance: 6v-30v DC Spur Geared Motor offers an efficiency of 90-60%,

  • We can provide samples for your test.

  • With stable quality,every product will pass 100% quality inspection before shipping

Key attributes:

Speed(RPM)
3000RPM
Continuous Current(A)
0.3A
Efficiency
73.2%
Rated Voltage
12v DC
Place of Origin
Guangdong, China
Brand Name
Masing Motor
Model Number
MSBL4826
Use
Massage Gun ,Fan ,Water purifier equipment,Electric curtain,door-lock ,robots ,SMART HOME,Electric Bicycle Lock, Cosmetic Instrument
Motor Type
Brushless dc motor
Rated Torque
0.01-2kgf.cm
Construction
Permanent Magnet
Commutation
Brushless
Protect Feature
Totally Enclosed
Product Name
micro planetary gear reduction dc motor 22mm
Shaft diameter
φ4mm,D-cut
Keywords
Massage dc brushless motor
Motor Diameter
φ48mm
Direction of motor
CW&CCW
Noise
≤55DB
MOQ
1000Pcs
Rated Power
0.1W -50W
Motor Material
Metal Rohs
Motor type
BL4826 DC Brushless Motor

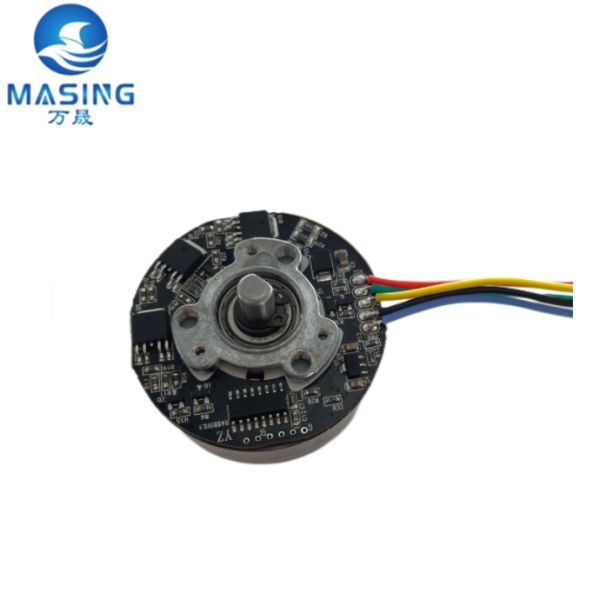

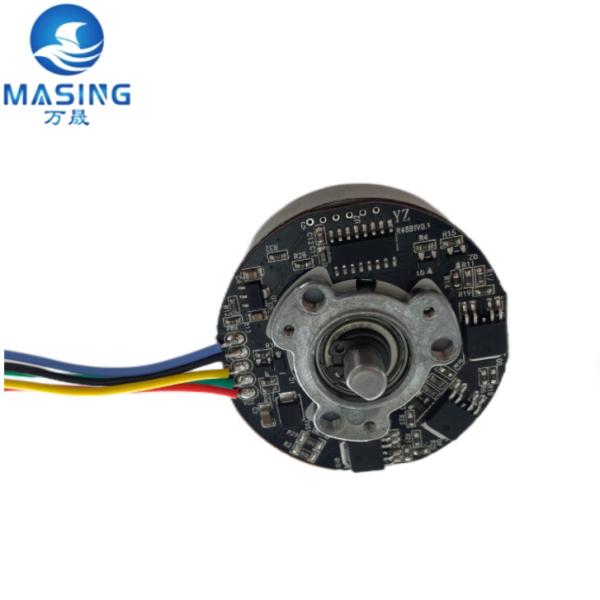

Product Photo:

BL4826 DC12V 3000RPM 15W High Power Brushless Permanent Magnet DC Motor For Massage GunBL4826 DC12V 3000RPM 15W High Power Brushless Permanent Magnet DC Motor For Massage Gun

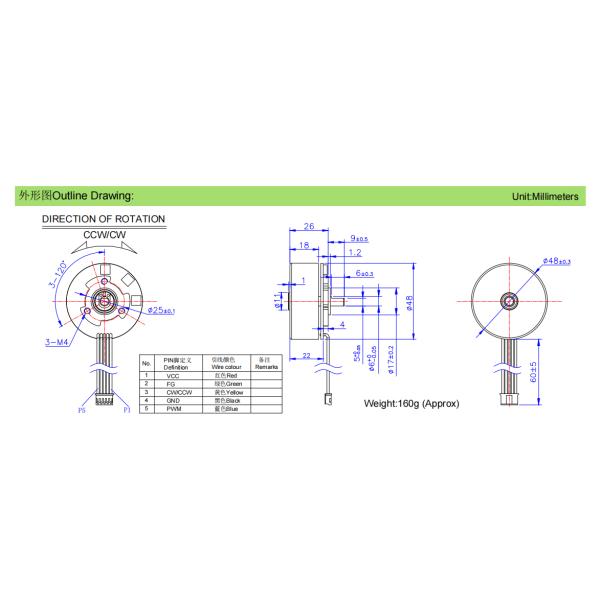

Product Spec:

Micro BL4826 DC BRUSHLESS MOTOR Typical Applications:

Fan ,Massage Gun,Robots,Electric curtain,Electric Sanitary Ware, Intelligent Electric, Aviation Model · Field Machinery, Consumer Electronics, Automotive Electronics, Intelligent Machine Home Automation, Production Automation, Medical Equipment, Security Devices

Voltage,ratedtorque,speed,curent,powerand shaftsize can be customizedasrequrement.

BL4826 DC12V 3000RPM 15W High Power Brushless Permanent Magnet DC Motor For Massage Gun

BL4826 DC12V 3000RPM 15W High Power Brushless Permanent Magnet DC Motor For Massage Gun

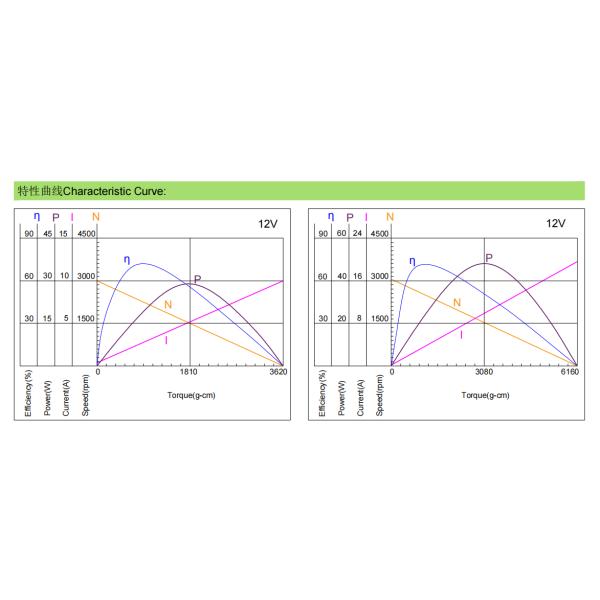

Motor Data:

Motor Model		 Voltage No Load At Maximum Efficiency Stall

Operating
Range
Rated
Current
Speed
Current
Speed
Torque
Power
Efficiency
Current
Torque
A rpm A rpm g-cm W % A g-cm
BL4826*** 9~14V 12V 0.300 3000 1.67 2540 550 14.68 73.2 9.28 3620
BL4826*** 9~14V 12V 0.305 3010 2.38 2668 700 19.56 68.4 18.6 6160

Packaging and delivery:

Packaging Details
Strong Carton 400pcs/box, or as you wish.
Port
Shenzhen/Guangzhou/Shanghai
Selling Units:
Single item
Single package size:
37X27X24cm
Single gross weight:
160g(Approx)

Supply Ability:

Supply Ability
100000 Piece/Pieces per Month

Lead time:

Quantity (pieces) 1 - 100 101 - 1000 > 1000
Lead time (days) 10 15 To be negotiated

Samples:

Maximum order quantity: 1piece
Sample price:

$15/piece

Certifications:

BL4826 DC12V 3000RPM 15W High Power Brushless Permanent Magnet DC Motor For Massage Gun

Factory Show:

BL4826 DC12V 3000RPM 15W High Power Brushless Permanent Magnet DC Motor For Massage Gun

Product Classification:

BL4826 DC12V 3000RPM 15W High Power Brushless Permanent Magnet DC Motor For Massage Gun

Applications:

Massage Gun ,Fan,Smart home, smart door locks, personal care, artificial intelligence, automobiles, model airplanes, adult products, security, small home appliances, models, power tools, communication equipment, medical devices, health care equipment, toys and fitness equipment and other products.

BL4826 DC12V 3000RPM 15W High Power Brushless Permanent Magnet DC Motor For Massage Gun

FAQ

Q1:How can I get the price?

A1:We usually quote within 24 hours after we get your inquiry(Except weekend and holidays). If you are
very urgent to get the price, please email us or contact us in other ways so that we can offer you a quote.

Q2:Can I buy samples placing orders?

A2:Yes.Please feel free to contact us.

Q3: What is your lead time?
A3: It depends on the order quantity and the season you place the order. Usually we can ship within 7-15 days for small quantity,and about 30 days for large quantity.

Q4: What is the shipping method?

A4:It could be shipped by sea,by air or by express(EMS,UPS,DHL,TNT,FEDEX and ect).Please confirm with us before placing orders.

Q5:What kind of express will be used to transport samples or bulk goods?

A5:We have established long-term service relationships with DHL, FedEx, ups and other global express companies In addition, we accept the transportation mode required by customers

Q6: How can you guarantee the quality ?

A6:We have 100%finished product inspection before delivery and no defective productsreturned.
