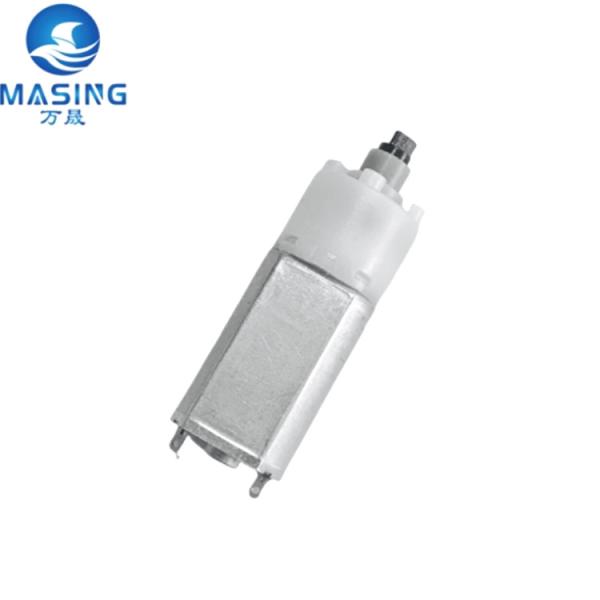

Plastic Micro Gearbox Motor 12V 24V 20mm Brushed Gear Motor For Logistics Industrial Robot
Plastic Micro Gearbox Motor 12V 24V 20mm Brushed Gear Motor For Logistics Industrial Robot
Plastic Micro Gearbox Motor 12V 24V 20mm Brushed Gear Motor For Logistics Industrial Robot
Plastic Micro Gearbox Motor 12V 24V 20mm Brushed Gear Motor For Logistics Industrial Robot
Plastic Micro Gearbox Motor 12V 24V 20mm Brushed Gear Motor For Logistics Industrial Robot
Plastic Micro Gearbox Motor 12V 24V 20mm Brushed Gear Motor For Logistics Industrial Robot
Specifications
Brand Name :
Masing Motor
Model Number :
MSGM20P130
Certification :
ROHS,ISO,CE
Place of Origin :
China
MOQ :
1000
Price :
Lower price
Payment Terms :
T/T
Supply Ability :
100000piece/per month
Delivery Time :
3-5 work weeks
Packaging Details :
Carton Box
Product name :
12v dc planetary gear motor
Shaft type :
Flat ,D-Cut or Round or Double D-cut or Customized
Efficiency :
70%
Speed :
Customized
Shaft Diameter :
φ6mm
Gearbox diameter :
φ20mm Plastic Planetary Gearbox
Gearbox Materail :
Plastic gearbox or metal gearbox
Micro Motor :
FF-130 or FF-180 dc motor
Key words :
20mm plastic micro planetary gear motor
Gears Materail :
Plastic or steel or Customized
Noise :
Low Noise
Description

Title:

12v 24v 20mm Plastic Micro Gearbox Brushed Gear Motor For Logistics Industrial Robot And Hair Curler

Description:

  • High Efficiency and Performance: 1.2v-12v DC Spur Geared Motor offers an efficiency of 70%, ensuring optimal performance in various applications, including ,Logistics Industrial Robot And Hair Curler,SMART HOME,Electric Bicycle Lock,Cosmetic Instrument.

  • Speed:5rpm-1000RPM

  • Rotating speed is constant and can be made as you required.

  • Match Motor type : FF-130 /FF-180 dc brush motor ,Gearbox: 20 mm metal spur gear reducer;

  • Suitable to small diameter, low noise and big torque application

  • Motor default direction:CW&CCW

  • Can be match with wheel, One shaft one wheel or one motor, one wheel

  • Working temperature:-40~+60°c

  • We can provide samples for your test.

  • Many type products to choose

  • 100% inspection before shipment

  • Good price and service

  • 15 years experience in gear and motor design

  • Encoder : magnetic encoder available

  • Commutation: Carbon brush/Graphite brush/Metal brush;

  • Customizable Options: We offer various diameter options and a color that can be customized according to the user's request, allowing for flexibility in design and integration.

  • Durable and Long-Lasting: The motor's totally enclosed design provides protection from external factors, while the permanent magnet construction ensures a long lifespan and reliable operation.

Key attributes:

Speed(RPM)
2-1000 rpm (customized)
Continuous Current(A)
customized
Efficiency
70%
Warranty
3Months-1Year
Place of Origin
Guangdong, China
Brand Name
Masing Motor
Model Number
MSGM20P130
Use
Logistics Industrial Robot, Hair Curler door-lock ,robots ,SMART HOME,Electric Bicycle Lock, Cosmetic Instrument
Type
12v dc planet geared motor
Torque
0.01-5kg.cm
Construction
Permanent Magnet
Commutation
Metal/Carton Brush
Protect Feature
Totally Enclosed
Product Name
M10 Brushed Dc Gear Motor
ApplicationLo
door-lock,smart home
Keywords
1.5V DC Planetary Gear Motor
Shaft Diameter
φ6mm or customized
Certification
CE,ROHS,ISO,IATF16949
Noise
≤55DB
MOQ
1000Pcs
Encoder
available,3ppr/7ppr/12ppr
Color
Customer's Request
Shaft type
Flat,D-cut ,Round ,a hole ect Customer's Request

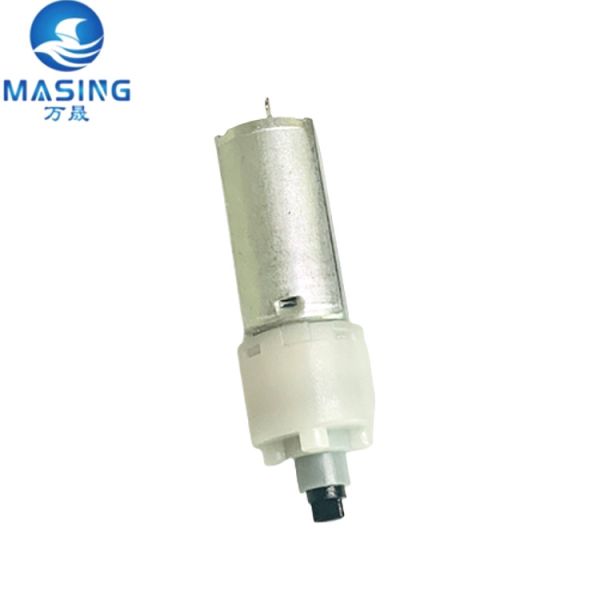

Product Photo:

Plastic Micro Gearbox Motor 12V 24V 20mm Brushed Gear Motor For Logistics Industrial RobotPlastic Micro Gearbox Motor 12V 24V 20mm Brushed Gear Motor For Logistics Industrial Robot

Plastic Micro Gearbox Motor 12V 24V 20mm Brushed Gear Motor For Logistics Industrial Robot

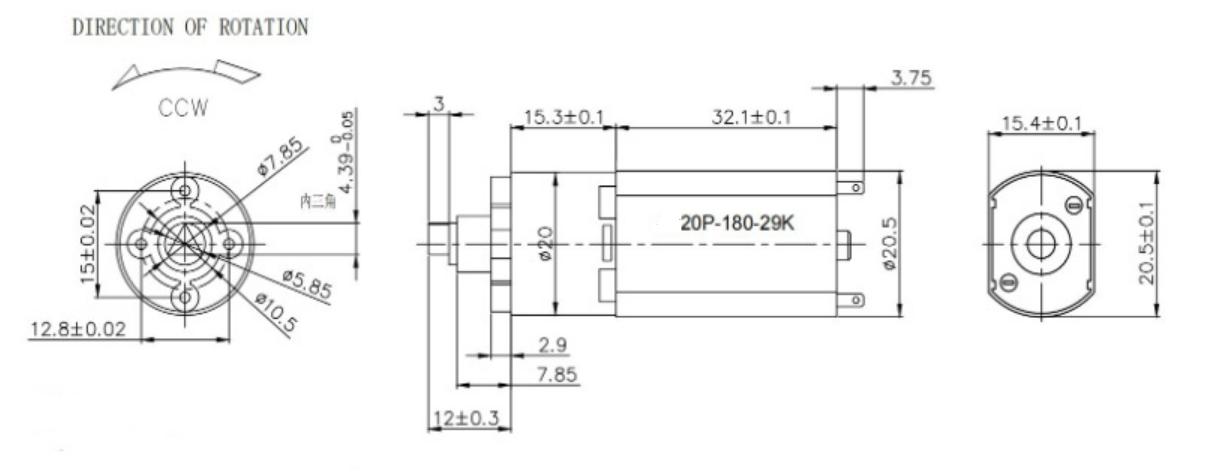

Product Spec:

20mm DC Planetary Gear Motor Typical Applications:

Home Appliance,door-lock ,robots ,SMART HOME,Electric Bicycle Lock,Cosmetic Instrument.,Logistics Industrial Robot And Hair Curler

Voltage,ratedtorque,speed,curent,powerand shaftsize can be customizedasrequrement.

Plastic Micro Gearbox Motor 12V 24V 20mm Brushed Gear Motor For Logistics Industrial Robot

Model VOLTAGE No-Load On-Load Stall ratio Gearbox Length(L) Motor Motor Length(L
Speed Current Speed Current torque torque current
V r/min A r/min A mN.m Kg.cm mN.m Kg.cm A mm mm
MS-20P130-10 12 750 0.060 525 0.136 7.4 0.08 14.8 0.15 0.3 10 17.3 130 25.1
MS-20P130-12.5 12 600 0.060 420 0.136 9.3 0.09 18.6 0.19 0.3 12.5 17.3 130 25.1
MS-20P130-25 12 300 0.060 210 0.136 18.6 0.19 37.2 0.38 0.3 25 17.3 130 25.1
MS-20P130-31 12 242 0.060 169 0.136 23.1 0.24 46.2 0.47 0.3 31 17.3 130 25.1
MS-20P130-50 12 150 0.067 105 0.151 30.2 0.31 60.4 0.62 0.3 50 17.3 130 25.1
MS-20P130-57 12 132 0.067 92 0.151 30.2 0.31 60.4 0.62 0.3 57 17.3 130 25.1
MS-20P130-62 12 121 0.067 85 0.151 46.1 0.47 92.2 0.94 0.3 62 17.3 130 25.1
MS-20P130-78 12 96 0.067 67 0.151 50.2 0.51 100.4 1.02 0.3 78 17.3 130 25.1
MS-20P130-103 12 73 0.067 51 0.151 76.6 0.78 153.2 1.56 0.3 103 19 130 25.1
MS-20P130-107 12 70 0.067 49 0.151 79.6 0.81 159.2 1.62 0.3 107 19 130 25.1
MS-20P130-125 12 60 0.067 42 0.151 90.5 0.92 226.2 2.31 0.3 125 19 130 25.1
MS-20P130-144 12 52 0.067 36 0.151 90.5 0.92 226.3 2.31 0.3 144 19 130 25.1
MS-20P130-156 12 48 0.075 34 0.170 92.5 0.94 277.5 2.83 0.3 156 19 130 25.1
MS-20P130-195 12 38 0.075 27 0.170 99.2 1.01 297.6 3.03 0.3 195 19 130 25.1
MS-20P130-250 12 30 0.075 21 0.170 125.5 1.28 376.5 3.84 0.3 250 20.5 130 25.1
MS-20P130-268 12 28 0.075 20 0.170 145.8 1.49 437.4 4.46 0.3 268 20.5 130 25.1
MS-20P130-313 12 24 0.075 17 0.170 150.3 1.53 450.9 40 (.3 313 20.5 150 25.1
MS-20P130-391 12 19 0.086 13 0.194 163.5 1.67 572.3 5.84 0.3 391 20.5 130 25.1
MS-20P130-488 12 15 0.086 11 0.194 185.8 1.89 650.3 6.63 0.3 488 20.5 130 25.1

Packaging and delivery:

Packaging Details
Strong Carton 400pcs/box, or as you wish.
Port
Shenzhen/Guangzhou/Shanghai
Selling Units:
Single item
Single package size:
37X27X24cm
Single gross weight:
10.0kg

Supply Ability:

Supply Ability
100000 Piece/Pieces per Month

Lead time:

Quantity (pieces) 1 - 100 101 - 1000 > 1000
Lead time (days) 10 15 To be negotiated

Samples:

Maximum order quantity: 1piece
Sample price:

$5/piece

Certifications:

Plastic Micro Gearbox Motor 12V 24V 20mm Brushed Gear Motor For Logistics Industrial Robot

Factory Show:

Plastic Micro Gearbox Motor 12V 24V 20mm Brushed Gear Motor For Logistics Industrial Robot

Product Classification:

Plastic Micro Gearbox Motor 12V 24V 20mm Brushed Gear Motor For Logistics Industrial Robot

Applications:

Driverless,Artificial intelligence,Intelligent transportation,Health care,Smart city,Automotive supplies,Security monitoring,

5G communication,Smart home,door-lock ,robots ,Electric Bicycle Lock,Cosmetic Instrument.

Plastic Micro Gearbox Motor 12V 24V 20mm Brushed Gear Motor For Logistics Industrial Robot

FAQ

Q1:Are you factory ?

A1:Yes,we are factory..Main product including micro geared motor,brushless DC motor,DC motor and DC planetary gear box ect.

Q2: What is the quality of the planetary reducer?

A2:At present, our gear motors have been sold to Japan, Germany, the United States, the United Kingdom, Indonesia, Singapore and other countries Most customers will give me feedback, saying that they operate well, have low noise and large torque, which is exactly the product they are looking for I think this should be the best word of mouth for our products


Q3: How about Sample order?

A3:Sample is available for you. please contact us for details. Once we charge you sample fee, please feel easy, it would be refund when you place formal order


Q4: Do you accept customize?
A4: Sure,as we have a strong design team,any problems will get our technical answer.
Q5: How to confirm the payment?
A5: We accept payment by T/T, PayPal, the other payment ways also could be accepted,Please contact us before you pay by the other payment ways. Also 30-50% deposit is available, the balance money should be paid before shipping.
