High Torque Planetary Gearbox 12V 36mm RS-545 DC Motor For Vacuum Cleaner
High Torque Planetary Gearbox 12V 36mm RS-545 DC Motor For Vacuum Cleaner
High Torque Planetary Gearbox 12V 36mm RS-545 DC Motor For Vacuum Cleaner
High Torque Planetary Gearbox 12V 36mm RS-545 DC Motor For Vacuum Cleaner
High Torque Planetary Gearbox 12V 36mm RS-545 DC Motor For Vacuum Cleaner
High Torque Planetary Gearbox 12V 36mm RS-545 DC Motor For Vacuum Cleaner
High Torque Planetary Gearbox 12V 36mm RS-545 DC Motor For Vacuum Cleaner
High Torque Planetary Gearbox 12V 36mm RS-545 DC Motor For Vacuum Cleaner
Specifications
Brand Name :
Masing Motor
Model Number :
MSGM36P545
Certification :
RohS,CE,ISO
Place of Origin :
China
MOQ :
1000
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
1000000piece/per month
Delivery Time :
3-5 work weeks
Packaging Details :
Carton box
Product Name :
24v dc planetary gear motor
Shaft diameter :
φ8mm,φ10mm
Motor size :
φ36mm*L50mm,φ36mm*L57mm
Gearbox efficiency :
90%-65%
Shaft Type :
customization available
Direction :
CW&CCW
Power :
1w-100w
Torque :
0.1Nm-10Nm
Gearbox Diameter :
φ 36mm metal gearbox
Gears Material :
Copper ,steel,Powder metallurgy ect
Description

Title:

High Torque Reducer RS-545 Motor DC Motor Micro Planetary Gear Motor 12V 36mm Planetary Gearbox For Vacuum Cleaner

Description:

  • Rated Voltage:6v-24v DC

  • Match Brushless Motor Type:RS-540 ,RS-545,RS-550,RS-555

  • Magnetic selection of motor:Ordinary magnetic, strong magnetic magnetic

  • Output Speed :2rpm -1000rpm

  • Rated Torque:0.1NM-10NM

  • Motor voltage speed torque eccentric wheel size and material can be customized according to customerrequirements.

  • Motor direction:CW/CCW

  • Motor Power:1W-100W

  • Gearbox diameter :φ36mm

  • Gears Material:Copper ,steel,Powder metallurgy or customized

  • Customizable: The motor is customizable to meet specific user needs,

  • Working temperature:-40~+60°c

  • RS-540,RS-545,RS-550,RS-555 DC Motor life:500H-3000H

  • Motor size :φ36mm *L50mm ,φ36mm *L57mm ,

  • Certification:CE,Rohs,ISO

  • High Efficiency: The motor boasts an efficiency of 90% to 66%, ensuring optimal energy usage and minimizing energy waste, as requested by users looking for eco-friendly options.

  • Applications :Robotics Automation, Smart Home, Electric Curtain

  • Please refer to the rated voltage used by our motor,the voltage exceeding the range of use of our voltagemay cause the machine to burn.

  • We can provide samples for your test.

Key Attributes:

Speed(RPM)
customized 2rpm-1000rpm
Continuous Current(A)
20mA-1A
Efficiency
90%-65%
Place of Origin
Guangdong, China
Brand Name
Masing Motor
Model Number
MSGM36P545
Use

Robotics Automation, Smart Home, Electric Curtain, Medical Imaging Equipment,Manufacturing Plant

Shaft diameter
customized, φ8mm or φ10mm
Torque
0.1NM-10NM
Construction
Permanent Magnet
Commutation
RS-540,RS-545,RS-550,RS-555 Brush Motor
Shaft Type
Round,Flat,D-cut or customized
Direction of motor
CW/CCW
Feature
High Efficiency
Keywords
12v dc gear motor high torque
Diameter Size
φ36mm*L40mm,φ36mm*L50mm,φ36mm*L57mm,
Weight
500g
Noise
Low Noise Level ,≤55DB
MOQ
1000Pcs
Customized support
OEM, ODM, OBM
Dimension box
Metal 36mm DC planetary gear box
Life Expectancy
500H-3000H

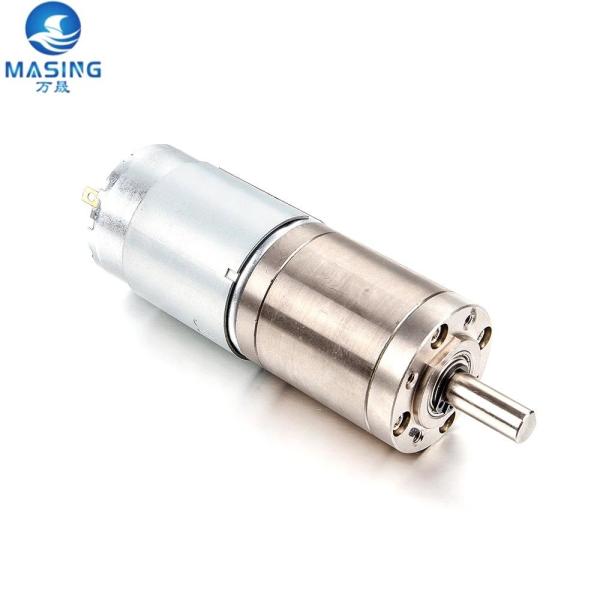

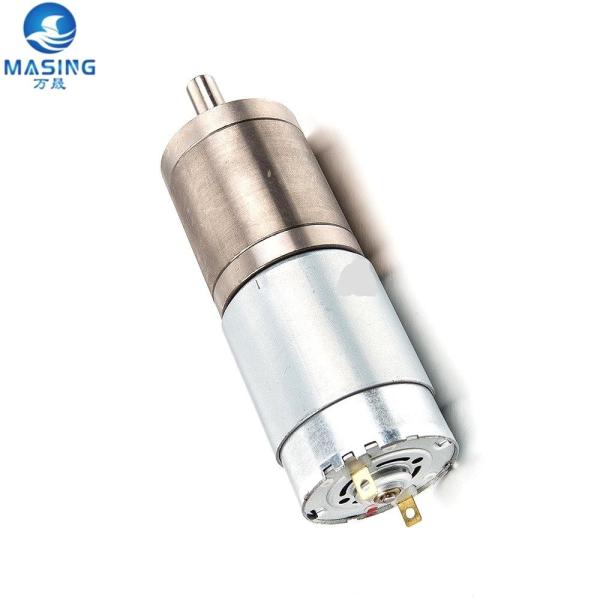

Product Photo:

High Torque Planetary Gearbox 12V 36mm RS-545 DC Motor For Vacuum CleanerHigh Torque Planetary Gearbox 12V 36mm RS-545 DC Motor For Vacuum Cleaner

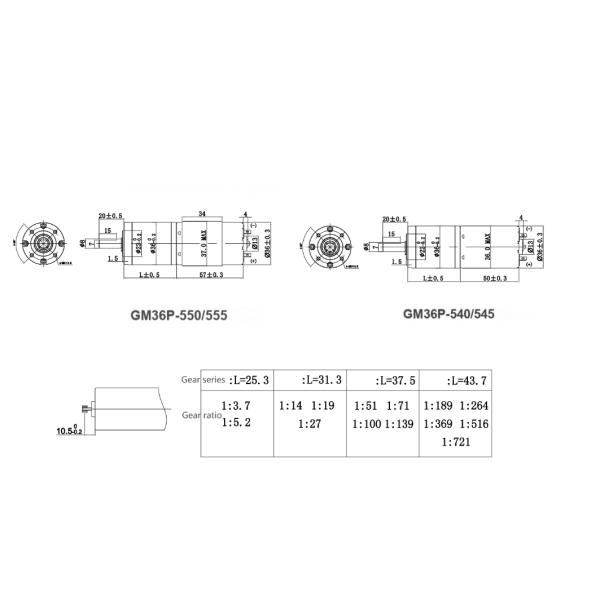

Product Spec:

36MM Gearbox Planetary DC GEAR MOTOR With RS-540/RS-545/RS-550/RS-555 Carbon Brushed DC Motor Typical Applications

●Robotics Automation, Smart Home, Electric Curtain,Robot Vacuum Cleaner,Cosmetic instrument, Smart Home, Medical Imaging Equipment,Manufacturing Plant Robots,,Car flip screen,Intelligent Trash Can ,Power Tools, Home Application, Personal Care,

Voltage,rated torque,speed,curent,power and shaft size can be customizedasrequrement.

NOTE:The left side of redline area can continous work

High Torque Planetary Gearbox 12V 36mm RS-545 DC Motor For Vacuum Cleaner

Gearbox Data:
Number of stages
1
2
3
4
Reduction ratio
3.71,5.18
13.8,19.2,26.9
51,71,100,139
190,265,369,516,721
Gearbox length “L ”
24.6
31.8
39
46.2
Gearbox efficiency
90%
81%
73%
66%
Motor Data & Charecteristics
SPECIFICATIONS
The specifications aaccept customization
Model number Rated volt. No load Load Stall
Speed Current Speed Current Torque Power Current Torque
rpm mA(max) rpm mA(max) Kgf.cm W mA(min) Kgf.cm
GM26P5550126000-5.2K 12V 1153 650 960 3000 1.2 11.8 10620 6.3
GM26P5550128000-14K 12V 571 900 465 3500 4 19.1 11550 19
GM26P5550126000-27K 12V 223 400 175 1600 4.2 7.5 5350 20
GM26P5550126000-51K 12V 117 680 85 2680 13 11.3 8350 60
GM26P5550126000-71K 12V 84 500 70 2400 14 10.1 8380 71
GM26P5550126000-99.5K 12V 60 450 48 2000 16 7.9 6300 78
GM26P5550124500-264K 12V 17 400 12 1500 28 3.4 2800 104
GM26P5550126000-721K 12V 8 400 6 3200 160 9.9 9000 630
GM26P5550246000-3.7K 24V 1621 500 1216 2000 1.5 18.7 8000 7.5

Packaging and delivery:

Packaging Details
Strong Carton 100pcs/box, or as you wish.
Port
Shenzhen/Guangzhou/Shanghai
Selling Units:
Single item
Single package size:
37X27X24cm
Single gross weight:
500g

Supply Ability:

Supply Ability
100000 Piece/Pieces per Month

Lead time:

Quantity (pieces) 1 - 100 101 - 1000 > 5000
Lead time (days) 10 15 To be negotiated

Samples:

Maximum order quantity: 1piece
Sample price:

$15/piece

Certifications:

High Torque Planetary Gearbox 12V 36mm RS-545 DC Motor For Vacuum Cleaner

Factory Show:

High Torque Planetary Gearbox 12V 36mm RS-545 DC Motor For Vacuum Cleaner

Product Classification:

High Torque Planetary Gearbox 12V 36mm RS-545 DC Motor For Vacuum Cleaner

Applications:

Medical equipment
sphygmomanometer, Massaging mattress, Air pump, Urine Analyzer.
Business Machines
Intelligent robot,Copiers and Scanners, 3D Printers, Tattoo pen.
Electric powered equipment
Electric toothbrush,Electric tool,Electric toy car,Electric curtain.
Smart Home
Intelligent window opener ,vacuum cleaner, Smart coffee machine,hair drier,Fascia gun,fan,air cleaner,Hair removal device,door
lock,Intelligent door lock.
Food and Beverage
Hand Blenders, Blenders, Mixers, Coffee Machines, Food Processors, Juicers, Fryers, Ice Makers, Soy Bean Milk Makers.
Robotics
Servicing robotics, Food delivery robot, Reception robot, Medical serving robot, AGV & AMR, Convenying robot, Inspection robot.

Others application
Business Vending Machines Printers ATM Copiers and Scanners
Camera and Optical Video Cameras Projectors Car
Lawn and Garden Lawn Mowers Snow Blowers Trimmers Leaf Blowers

High Torque Planetary Gearbox 12V 36mm RS-545 DC Motor For Vacuum Cleaner

FAQ

Q1: Can you customize according to my specification?

A1:Sure,we have a profession R&D centre ,we can customize according to your specification


Q2:How to select a suitable motor?
A2:If you have motor pictures or drawings to show us, or you have detailed specs like voltage, speed, torque, motor size, working mode of the motor, needed lifetime and noise level etc, please do not hesitate to let us know, then we can recommend suitable motor per your request accordingly
Q3: What's the main usage of the micro dc gear motor?
A3: Our motor widely used in Home Appliance,Office Equipment,Health-care appliance,Sanitation industry, High-class toy,Banking

System,Electronic and electrical tools,automation industry, bank equipments,payment equipments,vending machines,power door

lock,electric door lock.


Q4: Do you have a customized service for your standard motors?
A4: Yes, we can customize per your request for the voltage, speed, torque and shaft size/shape. If you need additional wires/cables soldered on the terminal or need to add connectors, or capacitors or EMC we can make it too.
Q5: What if i don't know the above data?
A5:Please contact our saleman to handle,we'll answer your questions patiently.

Q6:What's your lead time?
A6:Generally speaking, our regular standard product will need 25-30days, a bit longer for customized products. But we are very flexible on the lead time, it will depend on the specific orders
