3v 6v Small Electronic Door Lock Geared Motor N20 N30 12mm Dc Gear Motor 65rpm 100rpm 200rpm
3v 6v Small Electronic Door Lock Geared Motor N20 N30 12mm Dc Gear Motor 65rpm 100rpm 200rpm
3v 6v Small Electronic Door Lock Geared Motor N20 N30 12mm Dc Gear Motor 65rpm 100rpm 200rpm
3v 6v Small Electronic Door Lock Geared Motor N20 N30 12mm Dc Gear Motor 65rpm 100rpm 200rpm
3v 6v Small Electronic Door Lock Geared Motor N20 N30 12mm Dc Gear Motor 65rpm 100rpm 200rpm
3v 6v Small Electronic Door Lock Geared Motor N20 N30 12mm Dc Gear Motor 65rpm 100rpm 200rpm
3v 6v Small Electronic Door Lock Geared Motor N20 N30 12mm Dc Gear Motor 65rpm 100rpm 200rpm
3v 6v Small Electronic Door Lock Geared Motor N20 N30 12mm Dc Gear Motor 65rpm 100rpm 200rpm
Specifications
Brand Name :
Masing Motor
Model Number :
MS-GM12N30
Certification :
ROHS CE ISO 16949
Place of Origin :
China
MOQ :
1000
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
100000piece/per month
Delivery Time :
3-5 work weeks
Packaging Details :
Carton box
Product name :
12mm small 12 volt gear reduction motor
Shaft type :
Flat ,D-cut ,Round,M3 M4 ,with a hole or customized
Brush type :
Metal brush or carton brush
Rated torque :
0.05kg-1.5kg
Motor Size :
φ12mm *L20mm
Direction of rotation :
CCW&CW available
Gearbox material :
Copper,steel or customized
Certificates :
16949,CE Rohs,ISO
Shaft diameter :
φ3mm, D-cut 2.5mm
Description

Title:

3v 6v Small Electronic Door Lock Geared Motor N20 N30 12mm Dc Gear Motor 65rpm 100rpm 200rpm

Description:

  • 12mm gearbox plus N30 permanent magnet DC motor

  • Rated Voltage:DC1.5V-12V

  • Gear Module:0.15

  • Rated Speed :10rpm-3000rpm or customized

  • High Efficiency and Performance: 1.5V- 12V DC Spur Gear Motor offers an efficiency of 80%-55%,

  • Rated torque (kg.cm) :0.5 kg.cm max

  • Max momentary tolerance torque (kg.cm):1.0 kg.cm max
  • Reduction ratio:1/10,1/20,1/30,1/50,1/63 ,1/100
    1/110,1/150 1/210,1/250 1/298,1/380 1/1000
  • Gearbox length L (mm):9.0mm/12.0mm

  • Motor size :φ12mm *L20mm,φ12mm *L15mm

  • Match Motor Type :FF-N10,FF-N20,FF-N30

  • Gearbox Material:Copper,steel or customized

  • Direction fo motor :CW &CCW available

  • Gearbox Shaft diameter :φ3mm ,D-cut 2.5mm

  • Gearbox size :φ12mm *10mm

  • Accessories:encoder ,wires ,gears ,fan or customized

  • Shaft type :Round,M3,M4,with a hole,D-cut ,Flat,or customized

  • Brush Type :Metal brush or Carton brush

  • Free sample testing is available

  • Every product must pass quality 100% inspection before shipping

Key attributes:

Speed(RPM)
10-3000rpm
Continuous Current(A)
10mA-500mA
Efficiency
56%-85%
Warranty
Others
Place of Origin
Guangdong, China
Brand Name
Masing Motor
Model Number
N30 gear motor
Use
Beauty products,Car, Electric Bicycle Lock, FAN, Home Appliance, Cosmetic Instrument, SMART HOME, Robot,Educational robot
Motor Type
3v dc gear motor
Rated Torque
0.5kgf.cm
Rotating direction
CW/CCW available
Shaft diameter
φ3mm D-cut 2.5mm
Gear Module
0.15
Temperature Range
-40℃ - +60℃
Gears material
Copper,Steel
Life time
500H-1000H
Gearbox Diameter
12mm,13mm,14mm,ect
Weight
10g
Noise
≤55DB
MOQ
1000Pcs
Shaft type
Round ,Flat,D-cut,M3,M4,with a hole ect
Max momentary tolerance torque (kg.cm)
1.0 kg.cm max
Life time
200,000 cycles

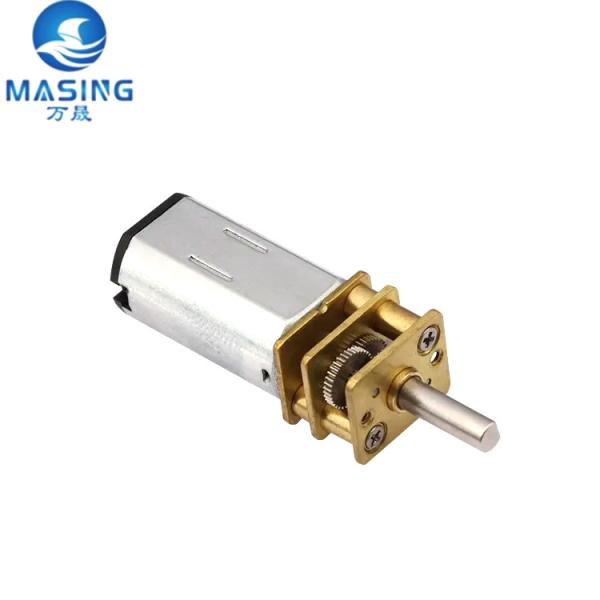

Product Photo:

3v 6v Small Electronic Door Lock Geared Motor N20 N30 12mm Dc Gear Motor 65rpm 100rpm 200rpm3v 6v Small Electronic Door Lock Geared Motor N20 N30 12mm Dc Gear Motor 65rpm 100rpm 200rpm

Product Spec:

N20/N30 Micro DC Gear Motor Typical Applications:

Educational robot,Beauty products,Educational robot,Robot sweeper, radar,Electronic Door Lock,Smart Home ,Appliance Smart Robot ,Electric Toys,3D printing,Smart cabinet locks

Voltage,ratedtorque,speed,curent,powerand shaftsize can be customizedasrequrement.

3v 6v Small Electronic Door Lock Geared Motor N20 N30 12mm Dc Gear Motor 65rpm 100rpm 200rpm

Packaging and delivery:

Packaging Details
Strong Carton 1000pcs/box, or as you wish.
Port
Shenzhen/Guangzhou/Shanghai
Selling Units:
Single item
Single package size:
37X27X24cm
Single gross weight:
10.0kg

Supply Ability:

Supply Ability
100000 Piece/Pieces per Month

Lead time:

Quantity (pieces) 1 - 100 101 - 1000 > 1000
Lead time (days) 10 15 To be negotiated

Samples:

Maximum order quantity: 1piece
Sample price:

$5/piece or Negotiable

Certifications:

3v 6v Small Electronic Door Lock Geared Motor N20 N30 12mm Dc Gear Motor 65rpm 100rpm 200rpm

Factory Show:

3v 6v Small Electronic Door Lock Geared Motor N20 N30 12mm Dc Gear Motor 65rpm 100rpm 200rpm

Product Classification:

3v 6v Small Electronic Door Lock Geared Motor N20 N30 12mm Dc Gear Motor 65rpm 100rpm 200rpm

Applications:

Driverless,Artificial intelligence,Intelligent transportation,Health care,Smart city,Automotive supplies,Security monitoring,

5G communication,Smart home,Beauty products,Educational robot,Robot sweeper, radar,Electronic Door Lock

3v 6v Small Electronic Door Lock Geared Motor N20 N30 12mm Dc Gear Motor 65rpm 100rpm 200rpm

FAQ
Q1: What's the price?
A1: We're a professional manufacturer So the exact price is based on clients' specifications,such as the speed,voltage etc.
Q2: What's the MOQ?
A2: We try to meet every client's requests and don't want to disappoint our clients.So the MOQ is flexible if the product is not complicated to produce and we are not in a busy season.Kindly chat with our saler to confirm it.
Q3: What's the delivery time?
A3: At the first we have an schedule,the earlier you place order,the fater we finish the production.

In the slack season,we can make sure the delivery time is by one month.

In the busy season,we need more than one month if your quantity is large.

The most important,we can provide free overtime prodution if your order is really urgent.

Q4: Can you make our logo on the products?
A4: Certainly,logo is easy as most of our products are customizable.So logo in usually logo is necessary.It can be labeled on the motors.

Q5:What's the payment term?
A5: For small amount,we accept 100% payment via paypal.

For large amount,we accept 30% telegraphic transfer(TT) as the deposit. And the rest must be paid before shipping.
