37mm Gearbox Metal Gear Motor GM37-500 High Torque DC 12V Geared Motor Low-speed
37mm Gearbox Metal Gear Motor GM37-500 High Torque DC 12V Geared Motor Low-speed
37mm Gearbox Metal Gear Motor GM37-500 High Torque DC 12V Geared Motor Low-speed
37mm Gearbox Metal Gear Motor GM37-500 High Torque DC 12V Geared Motor Low-speed
37mm Gearbox Metal Gear Motor GM37-500 High Torque DC 12V Geared Motor Low-speed
37mm Gearbox Metal Gear Motor GM37-500 High Torque DC 12V Geared Motor Low-speed
37mm Gearbox Metal Gear Motor GM37-500 High Torque DC 12V Geared Motor Low-speed
37mm Gearbox Metal Gear Motor GM37-500 High Torque DC 12V Geared Motor Low-speed
Specifications
Brand Name :
Masing Motor
Model Number :
MS-GM37B500
Certification :
ROHS,CE,ISO,16949
Place of Origin :
China
MOQ :
1000
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
100000piece/per month
Delivery Time :
3-5 work weeks
Packaging Details :
Carton box
Product name :
DC 12 volt gear reduction motor
Shaft diameter :
φ6mm
Torque :
0.1kgf.cm-20kgf.cm
Protect Feature :
Totally Enclosed
Direction of Rotation :
CW/CCW
Gearbox Material :
37mm Gearbox Motor
Voltage :
DC5V-24V
Construction :
Permanent Magnet
Gearbox length :
21mm to 29mm
Gears :
Metal/Plastic/Copper/Powder metallurgy
Description

Title:

37mm Gearbox Metal Gear Motor GM37-500 High Torque Motor DC 12V Geared Motor Low-speed for Smart home,Smart toilet seat

Description:

  • Rated Speed: 2rpm to 3000rpm or Can be Customized

  • Voltage:DC Input 3v,6v,9v,12v,24v,36v,48v (Can be Customized)

  • Gearbox Shaft Dimater: φ 6mm
    Gearbox Shaft type: M5/M6/Bare /D-Cut /Double D-Cut /Pin Hole /Keyway shaft (Can be Customized)

  • High Efficiency and Performance: 1.5V- 12V DC Spur Geared Motor offers an efficiency of 85%-55%,

  • Accessories:Wires, Connectors, Gearbox, Encoder, Brake, Cool Fan, etc (Optional)

  • Gear material:Metal ,Plastic ,Powder metallurgy,Copper ect
  • Gearbox diameter :φ32mm
  • Rated Torque :0.1kgf.cm-30kgf.cm
  • Direction of Rotation:CW&CCW available
  • We can provide free sample testing
  • Every product has to pass quality inspection

Key attributes:

Speed(RPM)
3rpm-3000rpm
Continuous Current(A)
50mA-800mA
Efficiency
55%-85%
Warranty
Others
Place of Origin
Guangdong, China
Brand Name
Masing Motor
Model Number
MS-GM37B500
Use
Smart home,Smart toilet seat,Home Appliance, robot,vending machine, medcial device
Type
12v micro dc gear motor
Torque
0.1kgf.cm-30kgf.cm
Construction
Permanent Magnet
Commutation
Brush
Protect Feature
Totally Enclosed
Direction of Rotation
CW&CCW
Gearbox Material
Metal gearbox
Keywords
Micro 12v gear motor
Gearbox length
21mm to 29mm
Gearbox diameter
37mm
Gearbox ratio
1:5 to 1:1000
MOQ
1000Pcs
Shaft
M5/M6/D-cut or Round or Flat or with a hole (Customer's Request)
Shaft Material
Carbon Steel or Stainless Steel
Certification
CE.ROHS,ISO,16949

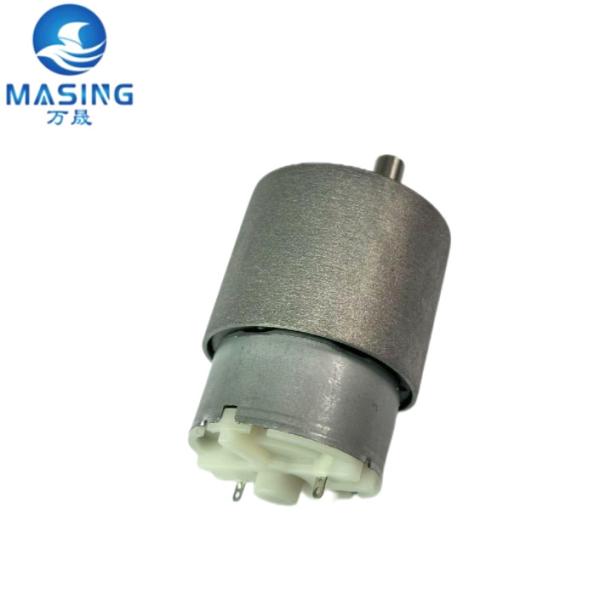

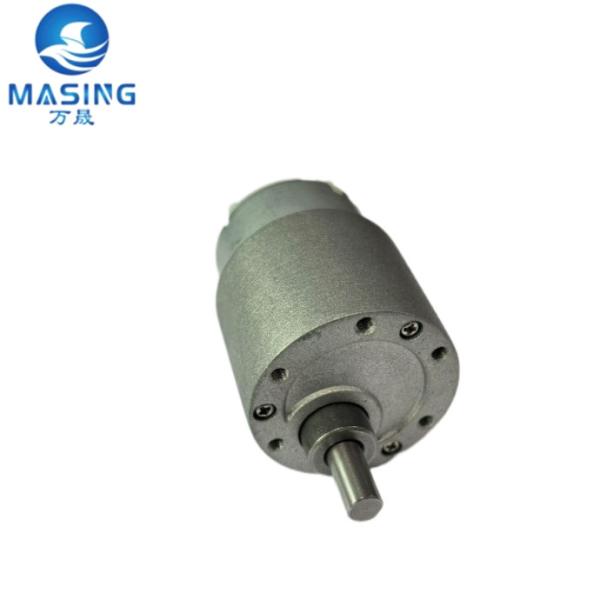

Product Photo:37mm Gearbox Metal Gear Motor GM37-500 High Torque DC 12V Geared Motor Low-speed

37mm Gearbox Metal Gear Motor GM37-500 High Torque DC 12V Geared Motor Low-speed37mm Gearbox Metal Gear Motor GM37-500 High Torque DC 12V Geared Motor Low-speed

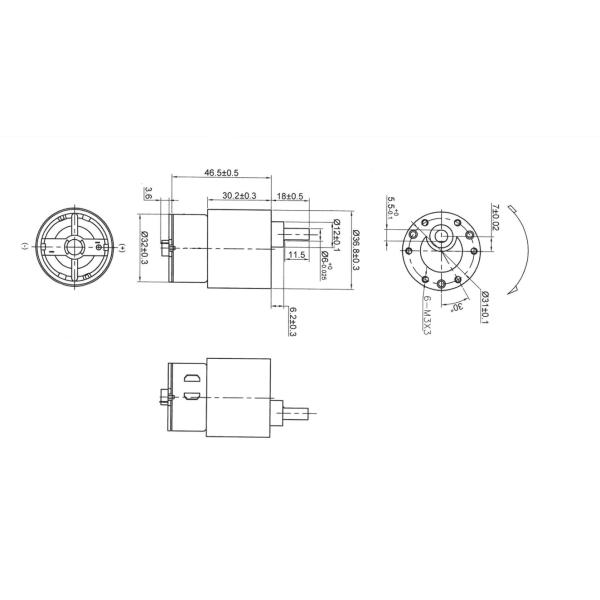

Product Spec:

MS-GM37B500 12V/24V DC Spur Gear Motor Typical Applications:

Smart home,Smart toilet seat,Home Appliance, robot,vending machine, medcial device

Voltage,ratedtorque,speed,curent,powerand shaftsize can be customizedasrequrement.

37mm Gearbox Metal Gear Motor GM37-500 High Torque DC 12V Geared Motor Low-speed

37mm Gearbox Metal Gear Motor GM37-500 High Torque DC 12V Geared Motor Low-speed

Packaging and delivery:

Packaging Details
Strong Carton 80pcs/box, or as you wish.
Port
Shenzhen/Guangzhou/Shanghai
Selling Units:
Single item
Single package size:
37X27X24cm
Single gross weight:
About 130-160g

Supply Ability:

Supply Ability
100000 Piece/Pieces per Month

Lead time:

Quantity (pieces) 1 - 100 101 - 1000 > 1000
Lead time (days) 10 15 To be negotiated

Samples:

Maximum order quantity: 1piece
Sample price:

$10/piece

Certifications:

37mm Gearbox Metal Gear Motor GM37-500 High Torque DC 12V Geared Motor Low-speed

Factory Show:

37mm Gearbox Metal Gear Motor GM37-500 High Torque DC 12V Geared Motor Low-speed

Product Classification:

37mm Gearbox Metal Gear Motor GM37-500 High Torque DC 12V Geared Motor Low-speed

Applications:

Driverless,Artificial intelligence,Intelligent transportation,Health care,Smart city,Automotive supplies,Security monitoring,

5G communication,Smart home,Automatic door operators, automatic energy saving bath, electrical controlled valve,

robots, grass cutter, electric curtain, camera, medical service, oxygen machine, etc.

37mm Gearbox Metal Gear Motor GM37-500 High Torque DC 12V Geared Motor Low-speed

FAQ
Q1: What is the advantage about your company?
A1: a.Advanced manufacturing equipment b.More than 15years motor design,manufacturing experience

c.Flexible customization of OEM/ODM orders d.Advanced automated production equipment

e.ISO9001,ISO14001,TS16949 system certification
Q2: Why should I choose your products?
A2: Our products are high quality and low price
Q3:The logo and the color can be customized?
A3: Yes, we welcome you to sample custom.
Q4: Any other good service your company can provide?
A4: Yes,we can provide good after-sale and fast delivery.

Q5: Can you provide OEM or ODM service?
A5: Yes, OEM and ODM are both welcomed.
Q6:What kind of data do i neet to provide if i want to order?
A6: Please kindly tell us your rated voltage, no load speed, load speed, load torque and overall dimension.
Q7:What if i don't know the above data?
A7: Please contact our salesman to handle,we'll answer your questions patiently.
