16mm Dc Planetary Gear Motor 12v 24v High Torque Long Lifespan Brushless Planetary Dc Gear Motor for Antenna Feeder
16mm Dc Planetary Gear Motor 12v 24v High Torque Long Lifespan Brushless Planetary Dc Gear Motor for Antenna Feeder
16mm Dc Planetary Gear Motor 12v 24v High Torque Long Lifespan Brushless Planetary Dc Gear Motor for Antenna Feeder
16mm Dc Planetary Gear Motor 12v 24v High Torque Long Lifespan Brushless Planetary Dc Gear Motor for Antenna Feeder
16mm Dc Planetary Gear Motor 12v 24v High Torque Long Lifespan Brushless Planetary Dc Gear Motor for Antenna Feeder
16mm Dc Planetary Gear Motor 12v 24v High Torque Long Lifespan Brushless Planetary Dc Gear Motor for Antenna Feeder
16mm Dc Planetary Gear Motor 12v 24v High Torque Long Lifespan Brushless Planetary Dc Gear Motor for Antenna Feeder
16mm Dc Planetary Gear Motor 12v 24v High Torque Long Lifespan Brushless Planetary Dc Gear Motor for Antenna Feeder
Specifications
Brand Name :
Masing Motor
Model Number :
MSPG16BL1624
Certification :
16949,ISO CE ROHS
Place of Origin :
China
MOQ :
1000
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
100000piece/per month
Delivery Time :
3-5 work weeks
Packaging Details :
Carton Box
Product name :
16mm brushless dc planetary gear motor
Shaft type :
Round ,Flat ,D-cut or Customized
Efficiency :
90%-65%
Rated Speed :
4rpm-1000rpm
Gearbox Diameter :
φ16mm
Gearbox type :
Planetary Gearbox
Gears Material :
Steel,copper ,plastic,Powder metallurgy
Motor type :
Brushless Motor
Keywords :
brushless planetary gear motor
Gearbox Materail :
Metal Rohs
reduction ratio :
1:4 to 1:1026 or Customized
Rated Torque :
0.1kgf.cm-10kgf,com
Description

Title:

16mm Dc Planetary Gear Motor 12v 24v High Torque Long Lifespan Brushless Planetary Dc Gear Motor for Antenna Feeder.

Description:

  • High Efficiency and Performance: 6v-24v DC Planetary Geared Brushless Motor offers an efficiency of 90%-65%,

  • Rated Speed:4RPM-1000RPM

  • Rotating speed is constant and can be made as you required.

  • Rated voltage :DC 6volt-24volt

  • Gearbox diameter: φ16mm diameter planetary gearbox

  • Gearbox materials:Metal ,Steel ,plastic or customized

  • Gearbox type :Planetary gearbox

  • Gears material :Steel ,copper ,plastic, Powder metallurgy or Customized

  • Motor type :BL brushless motor

  • Suitable to small diameter, low noise and big torque application

  • Motor default direction:CW&CCW available

  • Working temperature:-40~+60°c

  • Support service:OEM ,ODM available

  • Applications:Antenna Feeder.Smart home, robots, office supplies, power tools, medical equipment,

    precision instruments, automotive electronics,door-lock ,robots ,SMART HOME,Electric Bicycle Lock,Cosmetic Instrument.

  • Low Noise and High Torque: With a torque of 0.1-10kg.cm, this motor operates at a low noise level

  • We can provide samples for your test.

  • Every product will pass 100% quality inspection before shipping

Key attributes:

Speed(RPM)
4rpm-1000rpm
Continuous Current(A)
10mA-500mA
Efficiency
90-65%
Warranty
3Months-1Year
Place of Origin
Guangdong, China
Brand Name
Masing Motor
Model Number
MS-PG16BL1624
Use
Antenna feeder.Office supplies, power tools, medical equipment,door-lock ,robots ,SMART HOME,Electric Bicycle Lock, Cosmetic Instrument
Gearbox Type
Planetary Gearbox
Rated Torque
0.1kgf.cm-10kgf.cm
Construction
Permanent Magnet
Commutation
Brushless
Protect Feature
Totally Enclosed
Product Name
16mm Dc Brushless Planetary Gear Motor
Power
1W-10W
Keywords
24v DC Micro Planetary Gear Motor
Gearbox Diameter
φ16mm
Direction of motor
CW&CCW available
Noise
≤55DB
MOQ
1000Pcs
Voltage
DC 6v-24v
Material
Customer's Request
Motor type
BL1724 Brushless Motor

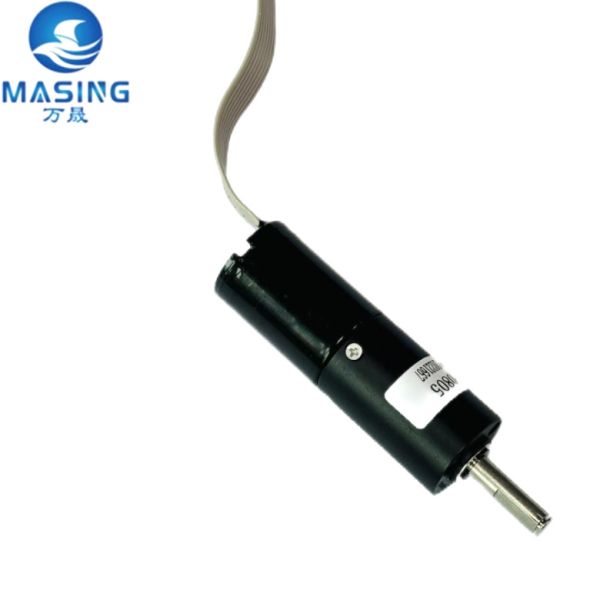

Product Photo:

16mm Dc Planetary Gear Motor 12v 24v High Torque Long Lifespan Brushless Planetary Dc Gear Motor for Antenna Feeder16mm Dc Planetary Gear Motor 12v 24v High Torque Long Lifespan Brushless Planetary Dc Gear Motor for Antenna Feeder

16mm Dc Planetary Gear Motor 12v 24v High Torque Long Lifespan Brushless Planetary Dc Gear Motor for Antenna Feeder

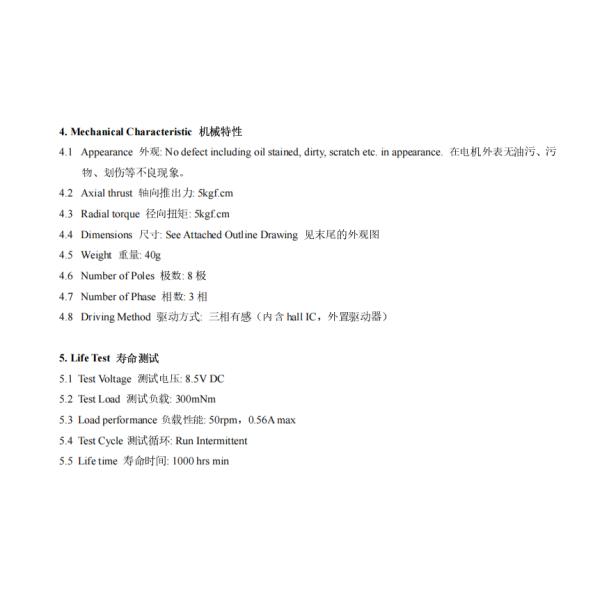

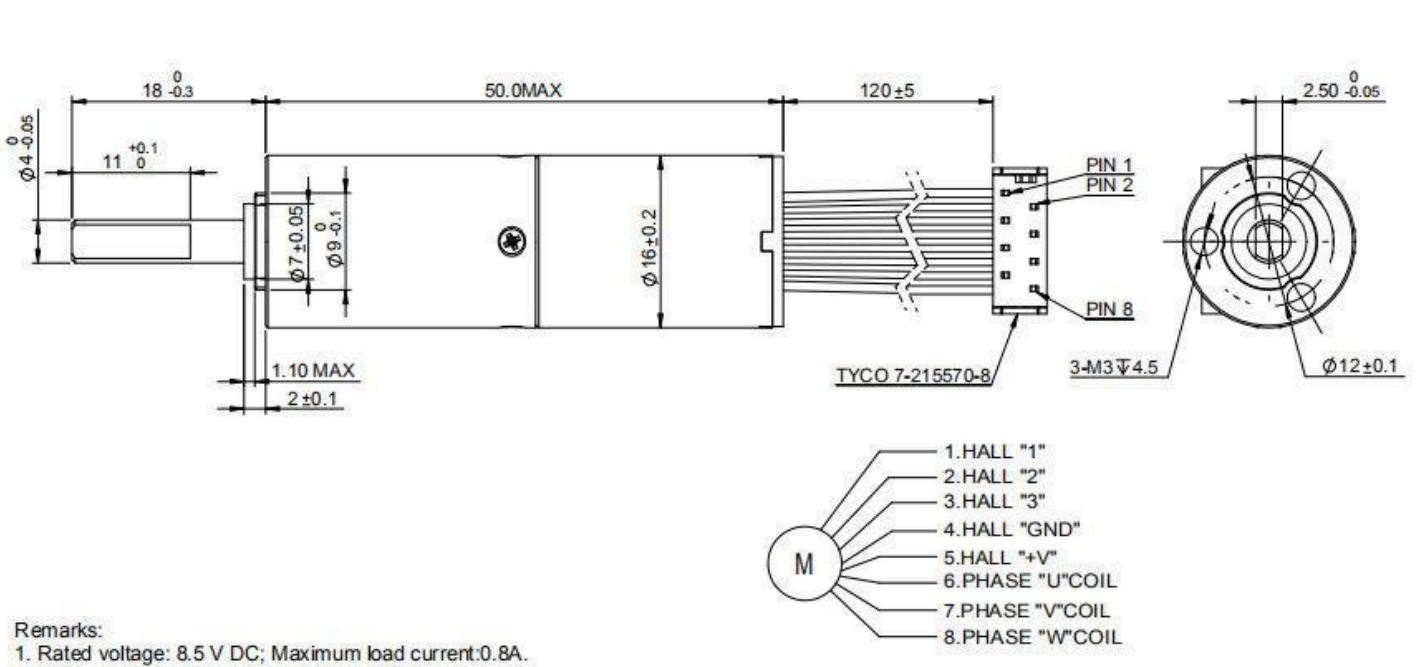

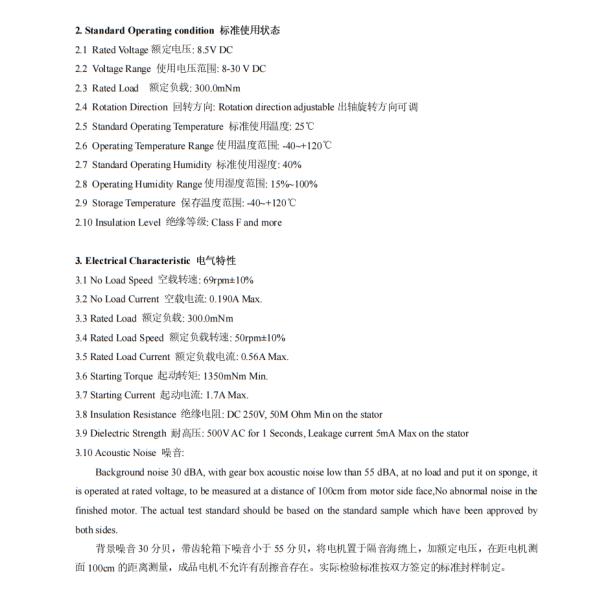

Product Spec:

Micro 16mm DC Brushless Planetary Gear Motor Typical Applications:

Antenna feeder,Precision instrument,Office supplies, power tools, medical equipment,door-lock ,robots ,SMART HOME,Electric Bicycle Lock,Cosmetic Instrument.

Voltage,ratedtorque,speed,curent,powerand shaftsize can be customizedasrequrement.

16mm Dc Planetary Gear Motor 12v 24v High Torque Long Lifespan Brushless Planetary Dc Gear Motor for Antenna Feeder

16mm Dc Planetary Gear Motor 12v 24v High Torque Long Lifespan Brushless Planetary Dc Gear Motor for Antenna Feeder

16mm Dc Planetary Gear Motor 12v 24v High Torque Long Lifespan Brushless Planetary Dc Gear Motor for Antenna Feeder

Packaging and delivery:

Packaging Details
Strong Carton 200pcs/box, or as you wish.
Port
Shenzhen/Guangzhou/Shanghai
Selling Units:
Single item
Single package size:
37X27X24cm
Single gross weight:
100g

Supply Ability:

Supply Ability
100000 Piece/Pieces per Month

Lead time:

Quantity (pieces) 1 - 100 101 - 1000 > 1000
Lead time (days) 10 15 To be negotiated

Samples:

Maximum order quantity: 1piece
Sample price:

$15/piece

Certifications:

16mm Dc Planetary Gear Motor 12v 24v High Torque Long Lifespan Brushless Planetary Dc Gear Motor for Antenna Feeder

Factory Show:

16mm Dc Planetary Gear Motor 12v 24v High Torque Long Lifespan Brushless Planetary Dc Gear Motor for Antenna Feeder

Product Classification:

16mm Dc Planetary Gear Motor 12v 24v High Torque Long Lifespan Brushless Planetary Dc Gear Motor for Antenna Feeder

Applications:

Driverless,Artificial intelligence,Intelligent transportation,Health care,Smart city,Automotive supplies,Security monitoring,

5G communication,Smart home,door-lock ,robots ,Electric Bicycle Lock,Cosmetic Instrument.

16mm Dc Planetary Gear Motor 12v 24v High Torque Long Lifespan Brushless Planetary Dc Gear Motor for Antenna Feeder

FAQ

Q1:How can i get the price?

A1:We usually quote within 24 hours after we get your inquiry(Except weekend and holidays). If you are very urgent to get the price, please email us or contact us in other ways so that we can offer you a quote.

Q2: Can I buy samples placing orders?

A2:Yes.Please feel free to contact us.

Q3:What is your lead time?

A3:It depends on the order quantity and the season you place the order. Usually we can ship within 7-15 days for small quantity,and about 30 days for large quantity.

Q4: How do you make our business long-term and good relationship?

A4:a. We keep good quality and competitive price to ensure our customers benefit ;

b. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.

Q5: Can you make our logo on the products?

A5: Certainly,logo is easy as most of our products are customizable.So logo in usually logo is necessary.It can be labeled on the motors.

Q6: How can you guarantee the quality ?

A6:We have 100%finished product inspection before delivery and no defective productsreturned.
