Plastic composite soft tube filling and inner heating sealing machine with chiller for hand cream
Plastic composite soft tube filling and inner heating sealing machine with chiller for hand cream
Plastic composite soft tube filling and inner heating sealing machine with chiller for hand cream
Plastic composite soft tube filling and inner heating sealing machine with chiller for hand cream
Plastic composite soft tube filling and inner heating sealing machine with chiller for hand cream
Plastic composite soft tube filling and inner heating sealing machine with chiller for hand cream
Plastic composite soft tube filling and inner heating sealing machine with chiller for hand cream
Plastic composite soft tube filling and inner heating sealing machine with chiller for hand cream
Plastic composite soft tube filling and inner heating sealing machine with chiller for hand cream
Plastic composite soft tube filling and inner heating sealing machine with chiller for hand cream
Plastic composite soft tube filling and inner heating sealing machine with chiller for hand cream
Plastic composite soft tube filling and inner heating sealing machine with chiller for hand cream
Plastic composite soft tube filling and inner heating sealing machine with chiller for hand cream
Plastic composite soft tube filling and inner heating sealing machine with chiller for hand cream
Specifications
Brand Name :
HIJ/TRUSTAR
Model Number :
TF-120
Certification :
CE
Place of Origin :
CHINA
MOQ :
1
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
It depends.
Delivery Time :
It depends.
Packaging Details :
Seathworthy wooden cases
Name :
Cosmetic Cream Tube Filling and Sealing Machine
Mold :
TF-120
Case Body Material :
304 stainless steel
Weight :
1400KG
Power Supply :
220V/50Hz
Main Motor :
2.2KW
Filling Range :
3-250ml
Operation Speed :
80-120/min/max
Suitable Tube Length :
50-210mm
Suitable Tube Diameter :
13-50mm
Machine size :
2350×1300×2400mm
Advantage :
Easy to operate
Automatic Grade :
Automatic
Control System :
PLC
Hs Code :
8422309090
Operation System :
Touch Screen
Air Pressure :
0.6-0.8Mpa
Filling Material :
Lotion, Cream, Toothpaste, Sun Cream
Machine Function :
Tube filling and sealing
Description

Plastic composite soft tube filling and inner heating sealing machine with chiller for hand cream

Description
This automatic tube flling machine is mainly used to flling ointment materials into cylindrical, capped tubes of Aluminum or Composite and seal the tubes ends. In compliance with the standard of GMP dosing pump is a new type stainless steel butterfly valve for ointment flling a screw fine adjustment device is privided, so the ointment weighing is accurate. Thanks to the Adption of the sophisticated accurately and reliably, change frequency to control the machine speed, Used FuKaiShen index drives and international advanced tube sealing systems.

Technical Parameter
  • Machine case body
Case Body Material 304 stainless steel

Opening Mode of Safety Guard

 Handle Door

Safety Guard Material

 Organic Glass

Frame Below Platform

 Stainless Steel

Case Body Shape

 Square-shape
  • Power, Main Motor etc.
Power Supply 50Hz/380V 3P
Main Motor 2.2KW
Hot Air Generator 3KW*2
Jacket barrel heating power 2 KW*2 Optional
Jacket barrel blending power 0.18 KW*2 Optional
  • Production Capacity
Operation Speed 80-120/min/max
Filling Range 3-250ml
Suitable Tube Length 50-210mm
Suitable Tube Diameter 13-50mm

Detailed photos

Plastic composite soft tube filling and inner heating sealing machine with chiller for hand cream

Double material barrel

Plastic composite soft tube filling and inner heating sealing machine with chiller for hand cream

Product our plate

Plastic composite soft tube filling and inner heating sealing machine with chiller for hand cream

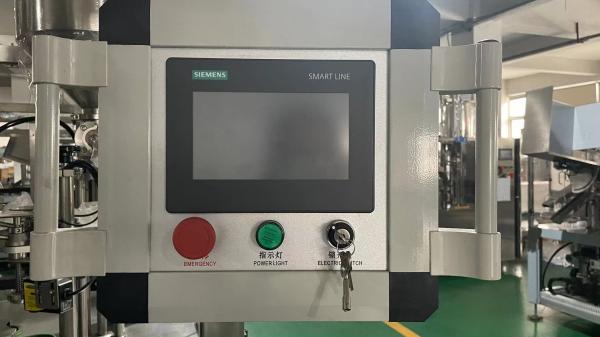

Touch screen

Plastic composite soft tube filling and inner heating sealing machine with chiller for hand cream

Double Filling heads

Plastic composite soft tube filling and inner heating sealing machine with chiller for hand cream

Working stations

Sample diaplay

Plastic composite soft tube filling and inner heating sealing machine with chiller for hand cream

Certificate

Plastic composite soft tube filling and inner heating sealing machine with chiller for hand cream

FAQ

1.what's the delivery time?
It's usually about 30 days

2.how many container request for this machine
Suggest ship by LCL.

3.Are you a manufacturer?
Yes,We have been packaging machinery over 17 years.

4.what about the payment term ?
Mostly 40%T/T in advanced,the rest need paid before shipping.

5.what's your advantages ?
--17 years experience:We have been in making machinery for 17 years.
--Customers all over the world
--Certificate: CE certificate
--Fast reply:Our team will reply you soon.
--After-sale service:We have a after sale department , service for your problems and dealing with spare parts.
