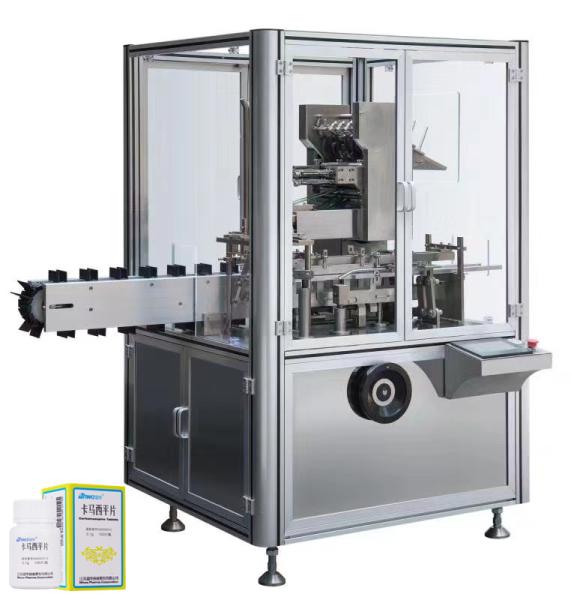

Fully Automatic Vertical Small Bottle Tube Cartoner Packaging Blister Plate Board Sachet Cartoning Box Packing Machine
Fully Automatic Vertical Small Bottle Tube Cartoner Packaging Blister Plate Board Sachet Cartoning Box Packing Machine
Fully Automatic Vertical Small Bottle Tube Cartoner Packaging Blister Plate Board Sachet Cartoning Box Packing Machine
Fully Automatic Vertical Small Bottle Tube Cartoner Packaging Blister Plate Board Sachet Cartoning Box Packing Machine
Fully Automatic Vertical Small Bottle Tube Cartoner Packaging Blister Plate Board Sachet Cartoning Box Packing Machine
Fully Automatic Vertical Small Bottle Tube Cartoner Packaging Blister Plate Board Sachet Cartoning Box Packing Machine
Fully Automatic Vertical Small Bottle Tube Cartoner Packaging Blister Plate Board Sachet Cartoning Box Packing Machine
Fully Automatic Vertical Small Bottle Tube Cartoner Packaging Blister Plate Board Sachet Cartoning Box Packing Machine
Fully Automatic Vertical Small Bottle Tube Cartoner Packaging Blister Plate Board Sachet Cartoning Box Packing Machine
Fully Automatic Vertical Small Bottle Tube Cartoner Packaging Blister Plate Board Sachet Cartoning Box Packing Machine
Fully Automatic Vertical Small Bottle Tube Cartoner Packaging Blister Plate Board Sachet Cartoning Box Packing Machine
Fully Automatic Vertical Small Bottle Tube Cartoner Packaging Blister Plate Board Sachet Cartoning Box Packing Machine
Fully Automatic Vertical Small Bottle Tube Cartoner Packaging Blister Plate Board Sachet Cartoning Box Packing Machine
Fully Automatic Vertical Small Bottle Tube Cartoner Packaging Blister Plate Board Sachet Cartoning Box Packing Machine
Specifications
Brand Name :
HIJ/TRUSTAR
Model Number :
WZTS-120
Certification :
CE
Place of Origin :
CHINA
MOQ :
1
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
It depends.
Delivery Time :
It depends.
Packaging Details :
Seathworthy wooden cases
Electric :
380V, 50HZ, 3Phase
Box size range :
(65-155)× (30-85) × (14-55) mm
Condition :
New
Machine Dimension :
1200*990*1700mm
Machine Weight :
1100kg
Capacity :
30-100 boxes/min
Specification Of Leaflet :
60-70g/m2
Air Consumption :
120-160L/min
Packaging Type :
Cartons
Origin :
China
Fold Range :
(1-4 )fold
Description

Fully Automatic Vertical Small Bottle Tube Cartoner Packaging Blister Plate Board Sachet Cartoning Box Packing Machine

Description

The equipment is a high-tech product integrating light, electricity, gas and machinery. Thus, the performance and work efficiency of the equipment are greatly improved, and the requirements of fast packing are realized, and the stable and reliable state is still maintained during fast operation.

This machine is suitable for automatic packing of ointments. The working process is the transmission of packaging; Transfer of packaging instructions (1 to 4 folds can be automatically folded); The carton is automatically formed and transmitted, and the package is loaded into the carton with folded instructions at the same time; And automatically complete the complex packaging process such as batch number, paper tongue sealing at both ends (can be equipped with hot melt glue machine).

Technical Parameter
Cartoning speed 30-100 cartons/ min
Carton Weight requirements 300-350g/㎡ (depend on the size of the carton)
Dimension range (L×W×H) (65-155) mm× (30-85) mm× (14-55) mm

Leaflet

(optional)

 Weight requirements 60-70 g/㎡
Unfolded size range (L×W) (80-250)㎜×(90-170)㎜
Folding range (L×W) 1-4 (Fold)
Compressed air Working pressure ≥0.6mpa
Air consumption 120-160L/min
Power supply 380V 50HZ
Main motor power 0.75kw
Dimension (L×W×H) 1200*990*1700mm
Machine net weight About 1100kg

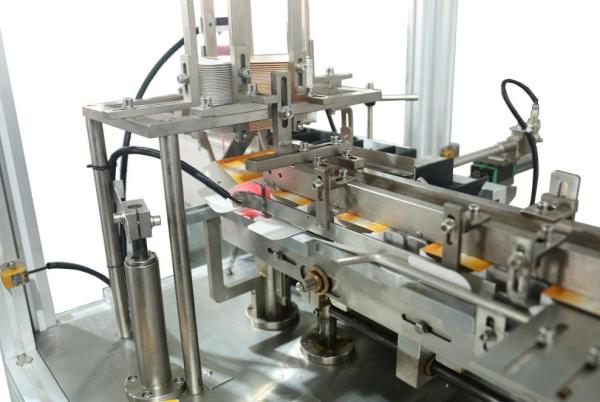

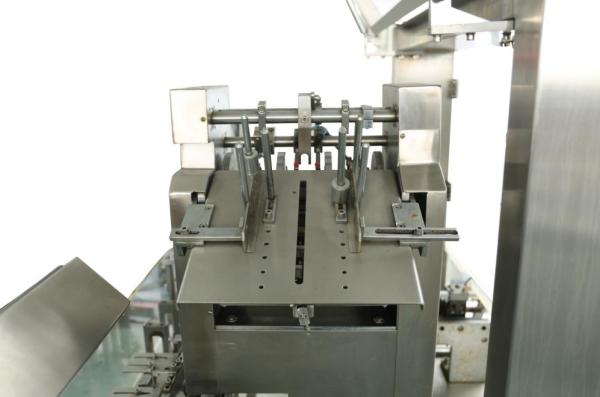

Detailed photos

Fully Automatic Vertical Small Bottle Tube Cartoner Packaging Blister Plate Board Sachet Cartoning Box Packing Machine

Fully Automatic Vertical Small Bottle Tube Cartoner Packaging Blister Plate Board Sachet Cartoning Box Packing Machine

Sample diaplay

Fully Automatic Vertical Small Bottle Tube Cartoner Packaging Blister Plate Board Sachet Cartoning Box Packing Machine

Usage
Fully Automatic Vertical Small Bottle Tube Cartoner Packaging Blister Plate Board Sachet Cartoning Box Packing Machine
Certificate

Fully Automatic Vertical Small Bottle Tube Cartoner Packaging Blister Plate Board Sachet Cartoning Box Packing Machine

FAQ

1.what's the delivery time?
It's usually about 30 days

2.how many container request for this machine
Suggest ship by LCL.

3.Are you a manufacturer?
Yes,We have been packaging machinery over 17 years.

4.what about the payment term ?
Mostly 40%T/T in advanced,the rest need paid before shipping.

5.what's your advantages ?
--17 years experience:We have been in making machinery for 17 years.
--Customers all over the world
--Certificate: CE certificate
--Fast reply:Our team will reply you soon.
--After-sale service:We have a after sale department , service for your problems and dealing with spare parts.
