Double Lanes Face Mask Manufacturing Machine , 3 Phases Cloth Making Machine
Double Lanes Face Mask Manufacturing Machine , 3 Phases Cloth Making Machine
Specifications
Brand Name :
RILANT
Model Number :
SR-420
Certification :
ISO
Place of Origin :
China
MOQ :
1 set
Price :
Negotiation
Payment Terms :
L/C, T/T
Supply Ability :
10 sets/ month
Delivery Time :
20 working days
Packaging Details :
Standard export package
Condition :
New
Warranty :
1 Year
Voltage :
220V/380V
Name :
CE Standard Automatic N95 Respirator Mask Machine Folded Type Non Woven Face Mask Making Machine
Application :
Nonwoven Fabric Disposable Machine,Surgical Face Mask,Hometextile Making,medical mask,nonwoven mask
Capacity :
3000pcs/hour
Weight :
5000KG
Automatic grade :
Automatic
Machine type :
Disposable Nonwoven Machinery
Type :
Inner Earloop Face Mask,Disposable Face Mask Making Machine,Surgical Operation Mask Machine
Raw material :
PP Chips,Non woven,Nonwoven/melt blown fabric
After-sales service provided :
Engineers available to service machinery overseas
Material :
Nonwoven Fabric,channel steel
Power :
15KW
Fold symmetry :
±0.1mm
Description

CE Standard Automatic N95 Respirator Mask Machine Folded Type Non Woven Face Mask Making Machine

The automatic mask making machine is automatic from material feeding to mask collection. High automation in ear-loop welding, edge wrapping, counting, and material discharging. The ultrasonic technique does no harm to the characteristic of the material. Easy and safe operation.

The equipment is used to produce a disposable non-woven mask. The equipment is mainly composed of feeding, shaping, welding, cutting, connecting and transferring, polar ear welding, blanking and stacking, etc. In addition to manual feeding, the whole process from the raw material feeding to the nose rib insertion edge cutting finished product stacking is fully automatic operation. The machine can be combined by one pull one or one pull two-pole ear welder to meet different production capacity requirements

1, Machine Description:

This production line is a fully automatic one-to-two face mask machine, one body machine drives two ear band machines. After the main body machine outputs the mask body, the mask body sheet is conveyed to the turning mechanism by a conveyor belt structure. The reversing mechanism is used to flip the mask plate onto the belt connected to the ear band machine, and then the mask sheet is conveyed to the first mask plate on the front of the ear band machine through the conveyor belt, and finally the mask sheet is placed on the ear band by the cylinder pressing In the mask plate of the machine, the ear band machine is used to complete the welding of the ear bands of the mask and the edging, thereby completing the production of an ear band mask product.

2, Main Specifications

No. Item Double Lanes
1 Product Name CE Standard Automatic N95 Respirator Mask Machine Folded Type Non-Woven Face Mask Making Machine
2 Model D-0415
3 Capacity 100-120 pcs/min
4 Equipment Dimension L 7050 X W 3800 X H 2000 mm
5 Space requires 9.0m x 4.5m
6 Interface Power 3 phases 5 lines,380V, 25A
7 Energy consumption maximum power 13.5KW
7 Conditions of use Space The distance between the equipment and the wall shall not be less than 900mm

The process of the equipment is a fully automatic assembly line which uses the principle of ultrasonic welding and edge sealing to complete the composite forming of multi-layer materials of the plane mask, then cutting, wrapping and welding the ear rope, and make the finished products stack and transfer according to the requirements.

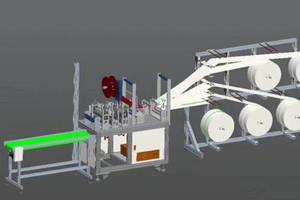

3, Machine Pictures

Double Lanes Face Mask Manufacturing Machine , 3 Phases Cloth Making Machine

Double Lanes Face Mask Manufacturing Machine , 3 Phases Cloth Making Machine

FAQ

Q1. Do you provide OEM or ODM service?


A: Yes, we have 4 designers for developing new products according to your requirements.

Q2. What's the lead time?

A: Usually within 30 days, it would be longer for new designs.

Q3. What's the After-Sales Service?

A: Engineers available to service machinery overseas.

A: We provide 15 days of free accommodation for technical training, till your engineer operate the machine well.
