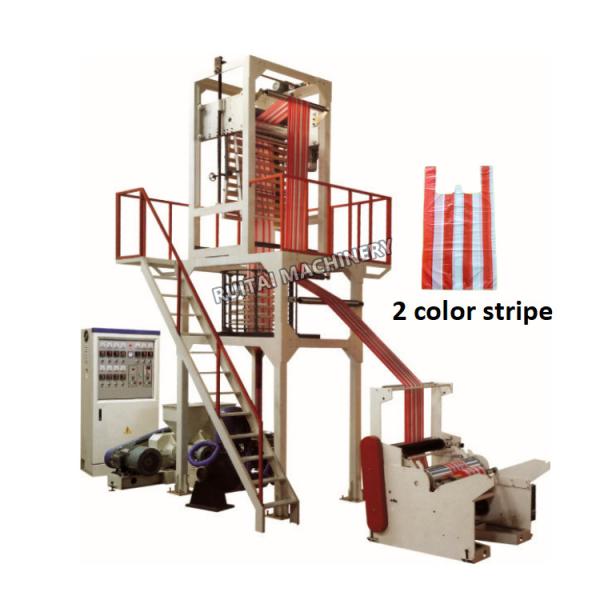

plastic double co-extruder 2 color stripe film blowing machine for making T-shirt bag
plastic double co-extruder 2 color stripe film blowing machine for making T-shirt bag
plastic double co-extruder 2 color stripe film blowing machine for making T-shirt bag
plastic double co-extruder 2 color stripe film blowing machine for making T-shirt bag
plastic double co-extruder 2 color stripe film blowing machine for making T-shirt bag
plastic double co-extruder 2 color stripe film blowing machine for making T-shirt bag
Specifications
Brand Name :
RUITAI
Model Number :
RJ-50*2-700
Certification :
CE/ISO9001
Place of Origin :
CHINA
MOQ :
1 SET
Price :
$17,400.00 - $19,000.00
Payment Terms :
T/T
Supply Ability :
15 SETS/MONTH
Delivery Time :
7 DAYS
Packaging Details :
STRETCH FILM
Machine type :
film extrusion Machine
Material :
Plastic
Warranty :
1 Year
Voltage :
380V/220V
Weight :
2500kg
Computerized :
Yes
After-sales service provided :
Engineers available to service machinery overseas,Online support,Video technical support
Dimension(l*w*h) :
5.0×2.5×3.8 m³
Power(w) :
11kw*2
Speed :
20-80pcs/h
Color :
customized
film width (max) :
100-500mm
Processing type :
blowing and extrusion
Description

plastic double co-extruder 2 color stripe film blowing machine for making T-shirt bag

plastic double co-extruder 2 color stripe film blowing machine for making T-shirt bag

MODEL RJ-50*2-700
SUITABLE RAW MATORIAL HDPE LDPE LLDPE
FILM LENGTH 100-500mm
FILM THICKNESS(HD) 0.009-0.05
EXTRUSION OUTPUT(HD) 20-80kg/hr
AVERAGE POWER-CONSUME(KW) 11kw*2
COVER DIMENSION(M) 5.0x2.5x3.8
SCREW DIAMETER(mm) Φ50mm*2
SCREW L/D 28:1
SCREW MATERIAL 38CrMoAIA+ PTA ALLOY
CYLINDER MATERIAL 38CrMoAIA+ PTA ALLOY
CYLINDER COOLING 120wx2
DRIVING MOTOR(KW) 11kw*2
Gear box 133
DIE SIZE Φ70mm
TEMPERTURE CONTROL 1
AIR RING Φ700mm,
CENTER STEADY STICK 1
ROLLER WIDTH 700mm
TAKE-UP SPEED(M/min) 10-100m/min
TAKE-UP MOTOR(kw) 1.1kw

TYPE

SURFACE FRICTION/CENTER REWINDER
WINDING SPEED(M/min) 10-100m/min
