Grain Moisture Meter MC-7828G Digital Moisture Tester Range 0-50% (Cup Type, Data Memory) Coffee Bean Wheat Corn Rice Sesame
Features
Able to measure grains up to 22 species.
The cup type measurement causes small error.
Wide measuring range.
With storage and statistical functions. Can store 240 groups of measurements.
Two presentations, digital display and color coded LED indication.
Use the exclusive Micro-computer LSI circuit and crystal time base to offer high accuracy measurement. It can obtain automatically the temperature corrected moisture value.
Use USB/RS-232 data output to connect with PC.
Provide Bluetooth data output choice.
Grain Code:
Code | Grain | Range(%) |
Cd01 | Wheat/Rye | 0. 5~70. 0 |
Cd02 | Maize/Corn 1 | 0. 5~71. 0 |
Cd03 | Rice(Milled) | 5. 0~76. 5 |
Cd04 | Paddy 1 | 2. 5~65. 5 |
Cd05 | Paddy 2 | 0. 5~60. 5 |
Cd06 | Soya Bean | 5. 0~33. 5 |
Cd07 | Coffee Bean | 5. 0~33. 5 |
Cd08 | Coco Bean | 5. 0~33. 5 |
Cd09 | Barley/Oats | 3. 0~58. 0 |
Cd10 | Sorghum/Milo | 2. 0~46. 0 |
Cd11 | Sesame | 6. 0~41. 0 |
Cd12 | Peanut | 0. 5~71. 5 |
Cd13 | Rape Seed | 2. 5~33. 5 |
Cd14 | Soybean Meal | 1. 0~73. 0 |
Cd15 | Rape Seed Meal | 2. 0~50. 0 |
Cd16 | Sun flower Seed | 3. 5~30. 0 |
Cd17 | Watermelon Seed | 2. 5~29. 0 |
Cd18 | Cotton Seed | 5. 0~47. 0 |
Cd19 | Cotton Seed Meal | 1. 5~48. 0 |
Cd20 | Maize Corn 2 | 3. 0~61. 5 |
Cd21 | White Wheat | 1. 5~50. 5 |
Cd22 | Granulated Feed | 0. 5~64. 5 |
Moisture Meter Wishlist:
Wood Moisture Meter | Tobacco Moisture Meter |
Paper Moisture Meter | Cigarette Moisture Meter |
Seed Cotton Moisture Meter | Feed Moisture Meter |
Wood Flour Moisture Meter | Chinese Medicine Moisture Meter |
Paperboard Moisture Meter | Tea-leaves Moisture Meter |
Grain Moisture Meter | Foan Material Moisture Meter |
Waste Paper Moisture Meter | Plastic Cement Moisture Meter |
Specification:
Grains | 22 Species |
Measuring Range | 0~50 % |
Accuracy | ±(0.5n%+0.5) |
Resolution | 0.1 |
Display | 4 Digits, 10 mm LCD, With Color Coded LED Indicator |
LED Indicator | Green LED represents a safe, air-dry state |
Yellow LED represents a borderline state | |
Red LED represents a damp state | |
Calibration | Automatic |
Battery Indicator | Low Battery Indicator |
Data Output | USB, RS-232, Bluetooth |
Data Memory | 240 Groups |
Operating Conditions | Temperature: 0~50 %°C, Humidity: < 90 %RH |
Power Supply | 4 x 1.5V AAA Size (UM-4) Battery |

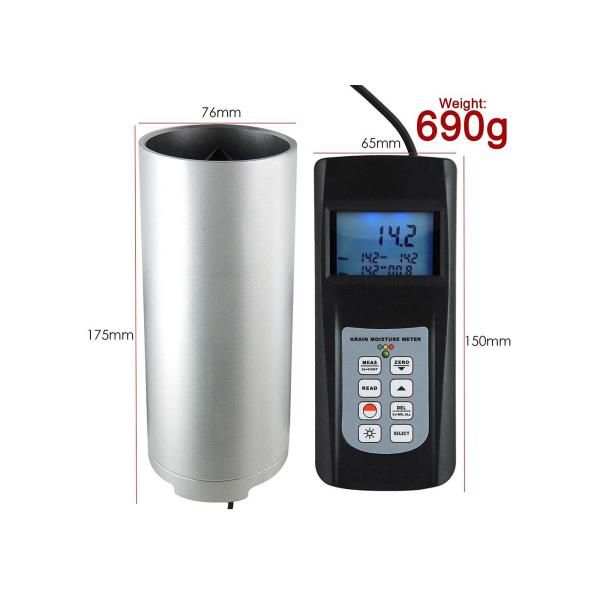

Dimensions | Uint: 150 x 65 x 30 mm |
Sensor: 175 x 76 x 76 mm | |
Weight | 690 g (Not Including Batteries) |
Standard Accessories:
1. Main Unit
2. Cup Sensor
3. Carrying Case
4. Operation Manual
Optional accessories:
1. USB, RS-232C data cable with software
2. Bluetooth data out put with software
