Specifications
Brand Name :
Xinkeda
Model Number :
LSJ-105/35
Certification :
ISO CE SGS GOST
Place of Origin :
Qingdao of China
MOQ :
1set
Price :
FOB US $450,000-458,000/ Set
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
50set/year
Delivery Time :
60-80days
Packaging Details :
Wooden Cases and Wooden Pallet
Panel Width :
1050mm, 600mm
Panel Thickness :
6-30mm
Panel Density :
1.2g/cm3
Panel Application :
Panel Application
Main Extruder Model :
Sj-105/35 Single Screw Extruder
Installed Power :
220kw
Extrusion Capacity :
200kg/H
name :
PC Polycarbonate Plastic Sheet Extrusion Line For U - Shaped Lock Roofing Panel
Description

PC U-Shaped Lock Roofing Panel Extrusion Machine

PRODUCT INTRODUCTION:
PC hollow structure board extrusion machine, newly designed and developed by our
company is specially used to produce PC hollow structure boards, also called PC-U shaped inline lock-gusset board, which is connected by the polycarbonate or aluminum fittings with its own fastening system
but to drilling, which can prevent dust and drain off water effectively. U-shaped inline lock-gusset sheet is
characterized by low cost and quickly installation, widely used in the roof and the cladding with graphic or
bending design.

BOARD SPECIFICATIONS:
Board Width: 1040 (1050)mm, 600mm
Board Thickness: 6-10mm, 8-12mm, 12-20mm, 22-30mm
Board Structure: 2-wall R structure, 4-wall R structure, 5-wall X-structure, 7-wall R structure
Board Weight: 1.8-2.2kg/m2, 2.0-2.4 kg/m2, 2.4-3.6kg/m2, 3.8-4.5kg/m2

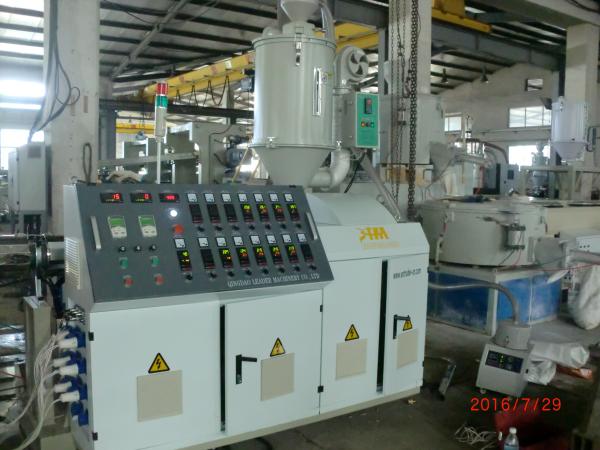

MAIN TECHNICAL DATA FOR MACHINES

Main extruder screw diameter 105mm
L/D 35:1
Main motor power 110kw
Co-extruder screw diameter 35mm
L/D 25:1
Co-extruder motor power 7.5kw
Installed power 220kw
Extrusion capacity 200kg/h
Machine dimension 30m*10m*5m
Board width 1050mm, 600mm
Board thickness 6-30mm
Board density 1.2g/cm3


BOARD APPLICATIONS:
Agriculture field: Greenhouse, Garden centers, Agricultural dinning halls, fish ponds etc.
Construction field: skylights and rooflights, public facilities, conservatories, residential, walkways and bridges,
canopies and bus stops, walls etc.

BOARD FEATURES:
1) Excellent load capacity
2) Free expansion
3) Easy and fast to install
4) 100% leaking-proof
5) Lower U value
6) Suitable for bending design
7) 2 sides UV protected
8) Solar control ability

PC Polycarbonate Plastic Sheet Extrusion Line For U - Shaped Lock Roofing Panel

Best regards

Contact:Helen Gao

Whatsapp/Skype/Viber/Wechat: 0086 15192039505

Email: lpm@extruder-cn.com
