Thermoforming Plastic Plate Making Machine , Plastic Plate Extrusion Line
Thermoforming Plastic Plate Making Machine , Plastic Plate Extrusion Line
Thermoforming Plastic Plate Making Machine , Plastic Plate Extrusion Line
Thermoforming Plastic Plate Making Machine , Plastic Plate Extrusion Line
Thermoforming Plastic Plate Making Machine , Plastic Plate Extrusion Line
Thermoforming Plastic Plate Making Machine , Plastic Plate Extrusion Line
Specifications
Brand Name :
Xinkeda
Model Number :
LSJ-90/33
Certification :
ISO CE SGS GOST
Place of Origin :
Qingdao of China
MOQ :
1set
Price :
FOB US $125,000/ Set
Supply Ability :
35set/year
Delivery Time :
60-80days
Packaging Details :
Wooden Cases and Wooden Pallet
Sheet Width :
600-1500mm
Sheet Thickness :
0.2-2mm
Sheet Application :
Thermoforming Cups, Plates, Packing, Waterproofing
Extruder Model :
High Efficiency Single Screw Extruder 90/33, 120/33
Max Capacity :
200-300kg/h
Main Electrical Parts :
ABB, Omoron, Delix, Schnider, Rkc etc
Guaranteed Time :
12 Months
name :
Plastic Plate Making Machine , Plastic Plate Extrusion Line
Description

Thermoforming application pet sheet/plate extrusion line is specially designed for PET mono sheet for packing indrustry. The technology of "Single Screw extruding with low dew-point dehumidifying system " for high quality products in high transparency without buddle, which will be very important for thermoforming.

PAR T1 THIS LINE CONSISTS OF (COMPULSORY)
1 Automatic vacuum feeding machine 1 set
2 High efficiency single screw extruder (65/33, 75/33,90/33,120/33) 1 set
3 Hydraulic exchanging unit 1 set
4 Melting gear pump 1 set
5 T-type /hanger type die head (JC-Times brand) 1 set
6 Three Roller Calendars (alloy steel material ) 1 set
7 Rollers thermoforming machine 1 set
8 Cooling frame and edge cutting unit 1 set
9 Haul off machine 1 set
10 Plastic cutting machine-guillotine 1 set

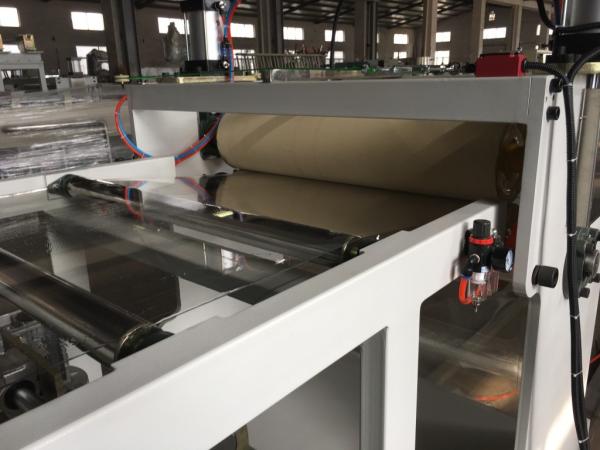

11 Twin position sheet winder 1 set
12 Stacker 1 set
13 Electrical cabinet (ABB,Omron, RKC,Schneider, Siemens etc)
14 Spare parts 1 set
PART 2 ACCESSORY MACHINE PARTS (OPTIONAL)
1 Air compressor 1 set
2 Industrial water chiller 1 set
PART 3 SHEET SPECIFICATIONS
1 Sheet width 600-1500mm
2 Sheet thickness 0.2-2mm
3 Type Pet single layer/mono layer sheets
4 Raw material 1. Can be virgin plastic pet material
2. Can be recyclable material, like PET Bottle Flakes
PART 4 SHEET APPLICATIONS
1 Packing, printing, stationery, art works etc.
2 Main Products: Gift/ad/file bag/lamp cover/food packaging
PART 5 PAYMENT, DELIVERY AND AFTER SALE SERVICES
1 Payment terms 40% for prepayment by T/T, 60% for balanced payment by T/T, or L/C can be acceptable
2 Delivery time 70 days after receipt of prepayment
3 Packing method Wooden cases/pallets with stretching films
4 Guaranteed time 18 months for mechanical parts, 12 months for electrical parts
5 After sale service Send 1-2 engineers to customers' factory to help them install, test the machine, and train their workers. This is chargeable


PART 6 OTHER TECHNICAL DATA

Extruder Model LMSB-90/33 LMSB-100/33 LMSB-120/33 LMS-100/65 LMSB-120/65
Sheet Width 300-610mm 500-950mm 1000-1500mm 500-950mm 1000-1500mm
Sheet Thickness 0.15-1.4mm 0.15-1.4mm 0.15-2mm 0.25-1.4mm 0.25-1.4mm
Driving Motor 75KW 90KW 132KW 90KW, 75KW 132KW, 65KW
Line Speed 25m/min 25m/min 28m/min 28m/min 28m/min
Capacity 180kg/h 300kg/h 550kg/h 450kg/h 650kg/h

Thermoforming Plastic Plate Making Machine , Plastic Plate Extrusion Line

Best regards

Contact:Maggie

Whatsapp/Skype/Viber/Wechat: 0086 150 53256363

Email: Maggie@intermedios-cn.com
